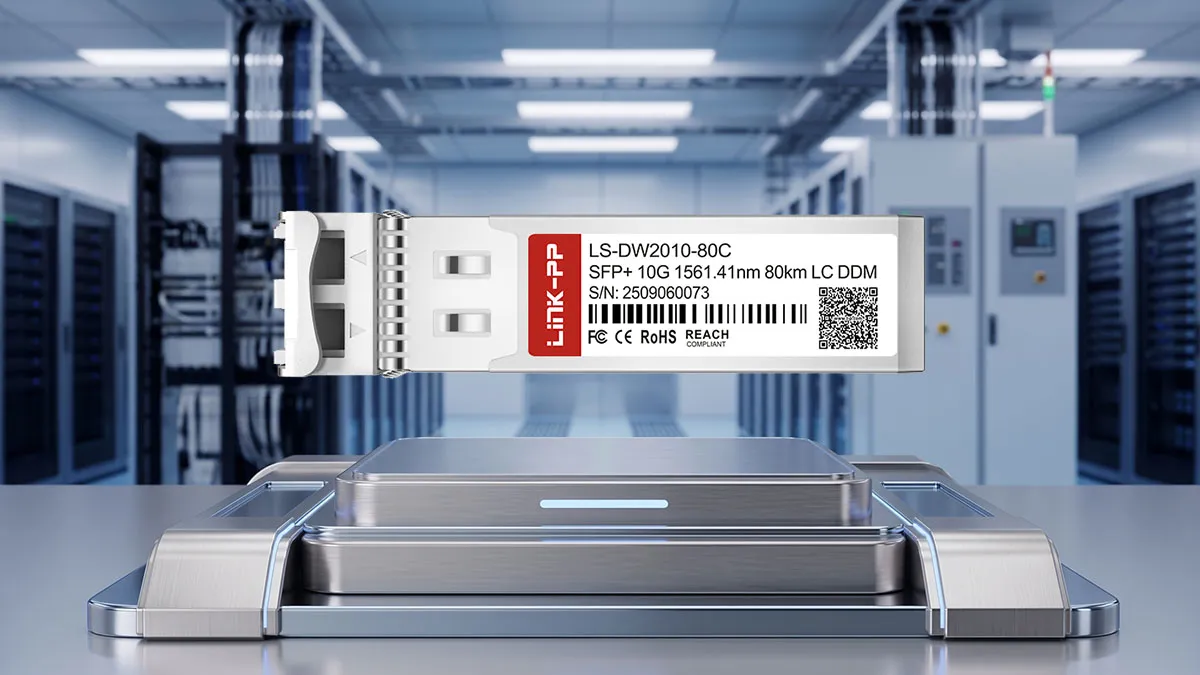

Engineered for high-capacity long-reach networks, this 10G DWDM SFP+ optical transceiver supports data rates up to 10.7Gbps. Operating at 1561.41nm (C-band ITU Channel 20) with 100GHz grid spacing, the module features a cooled EML laser, APD photodiode, duplex LC connector, and 3.3V power supply for seamless 80km single-mode fiber link deployments.
LINK-PP Part Number
LS-DW2010-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1561.41nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Key Features of LINK-PP LS-DW2010-80C 10G DWDM SFP+
This hot-pluggable DWDM optical module delivers 10.3Gbps data throughput over an extended 80km reach. Key highlights include a high-stability cooled EML transmitter, sensitive APD photodetector, SFF-8472 compliant digital optical monitoring (DOM), power consumption under 2W, and full compliance with SFP+ MSA and RoHS standards.

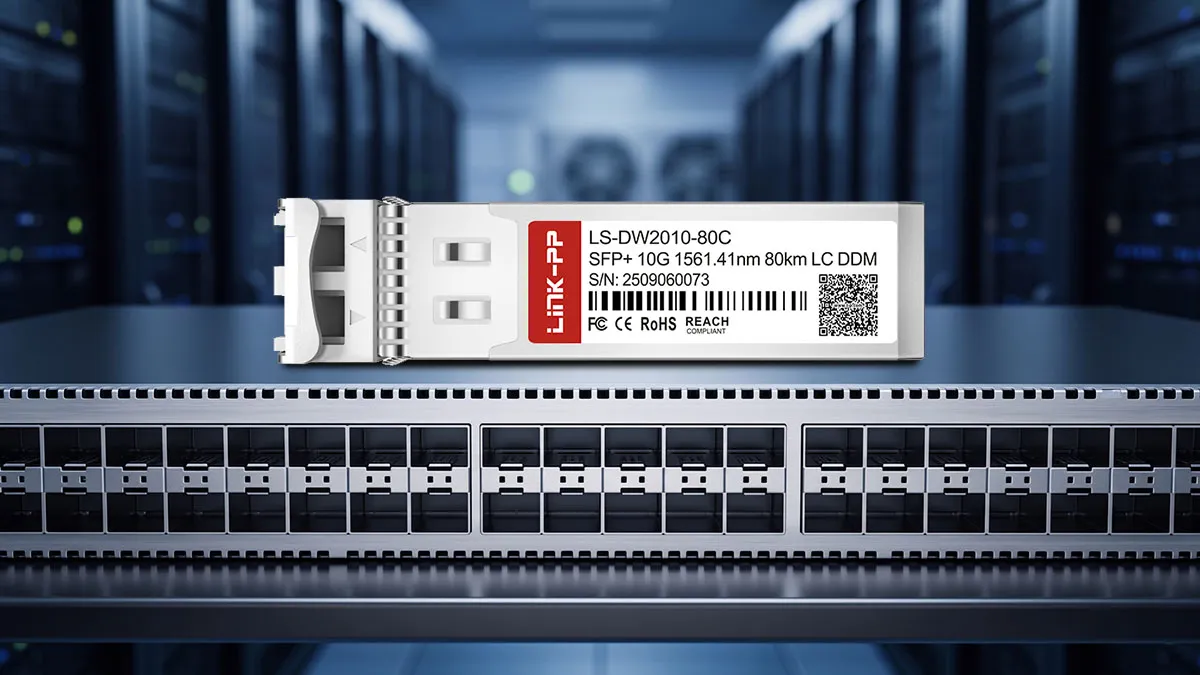

LINK-PP LS-DW2010-80C 10G SFP+ Optical Module
This 10G SFP+ optical module provides exceptional performance for 10GBASE-ZR and 10GBASE-ZW applications. Designed for high-density network switches and enterprise routers, it ensures reliable long-haul data transmission with ultra-low latency.
LS-DW2010-80C: 10G Connectivity for 5G Base Station
Tailored for modern telecommunication architectures, this transceiver delivers robust 10G connectivity for 5G base station fronthaul and backhaul networks. Its superior wavelength stability and high receiver sensitivity guarantee uninterrupted wireless data backhauling across extended distances.

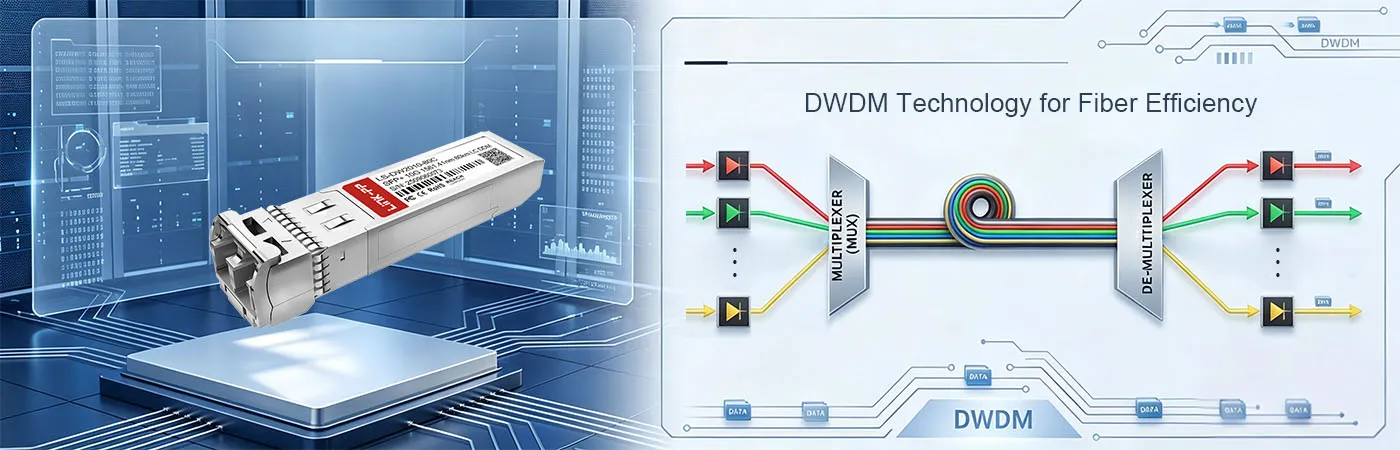

LS-DW2010-80C Module with DWDM Technology for Fiber Efficiency
Leveraging advanced DWDM multiplexing technology, this optical transceiver maximizes existing single-mode fiber capacity by combining multiple optical channels onto a single fiber pair, drastically reducing network expansion costs for service providers.
LS-DW2010-80C Module with 1561.41nm Wavelength
Operating precisely at 1561.41nm (ITU Channel 20), this transceiver maintains tight wavelength tolerances using an integrated TEC cooled EML transmitter. This ensures minimal inter-channel crosstalk and optimal integration within 100GHz C-band DWDM networks.
LS-DW2010-80C Module Supporting 80km Transmission
Equipped with a high-performance APD receiver, the unit supports ultra-long reach optical transmission up to 80km without requiring external optical amplification. It is the ideal solution for regional transport, metro rings, and long-haul links.

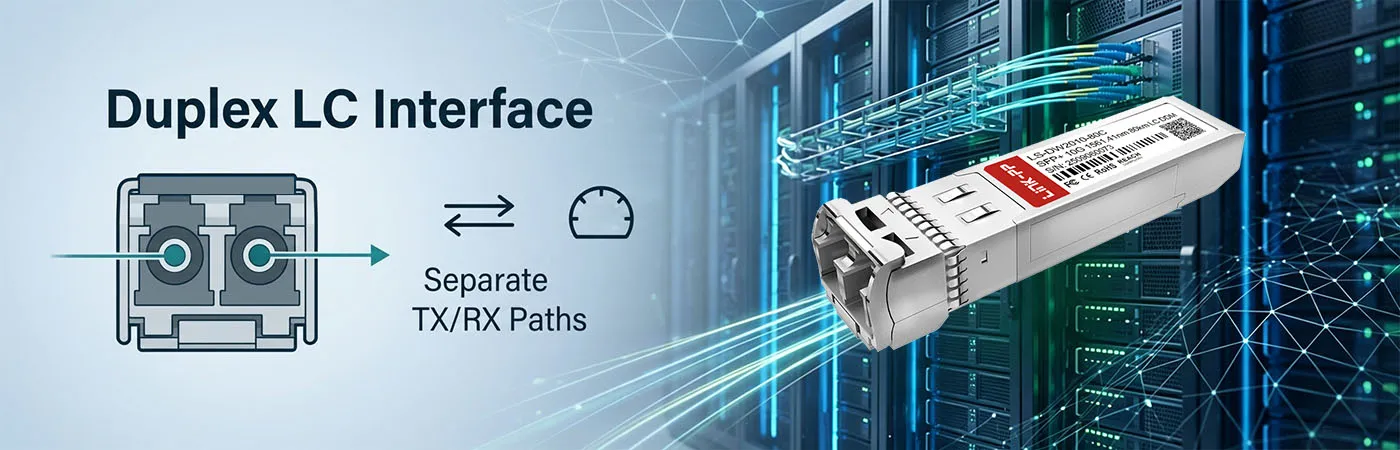

LS-DW2010-80C Module with Duplex LC Interface
Featuring an industry-standard duplex LC optical connector, this compact module enables easy, secure latching with standard single-mode patch cords. Its precise mechanical design ensures low insertion loss and high connection repeatability across operating environments.
LS-DW2010-80C Module with DOM for Real-Time Monitoring
Built-in Digital Optical Monitoring (DOM) capabilities allow network administrators to track real-time operational metrics including temperature, supply voltage, laser bias current, transmit optical power, and receive optical power via a simple 2-wire I2C interface.
LINK-PP LS-DW2010-80C 10G SFP+ Certification
This 10G SFP+ optical transceiver holds full international safety and environmental certifications, including CE, FCC, UKCA, UL, and REACH, assuring compliance across global telecommunication markets.
Our comprehensive quality testing program evaluates every single optical transceiver for parameter accuracy, signal integrity, and long-term durability, ensuring defect-free deployment and mission-critical network reliability.
LS-DW2010-80C Quality Certifications
Manufactured under strict ISO9001 standards, this transceiver adheres to rigorous Class I laser safety regulations and RoHS environmental guidelines, guaranteeing safe and sustainable operation everywhere.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW2010-80C Certified for Reliable Host-Device Compatibility
Thoroughly validated on leading host switches and routers, this certified module delivers seamless plug-and-play interoperability, error-free EEPROM recognition, and reliable communication across diverse vendor platforms.
Every optical module undergoes strict automated testing procedures before shipment, verifying physical and electrical parameters to guarantee flawless network performance.
Optical Spectrum Test
Optical spectrum analysis verifies exact 1561.41nm central wavelength accuracy and side-mode suppression ratio performance.
Eye Pattern Test
Eye diagram testing ensures clean transmitter output, low jitter, and excellent extinction ratio metrics.
Bit Error Rate Test
BER validation confirms error-free signal transmission at BER less than 1×10⁻¹² across 80km SMF.
Temperature Test
Thermal cycling tests verify stable transceiver operation across standard commercial 0°C to 70°C environments.
Product Shipping for LINK-PP LS-DW2010-80C 10G SFP+
We implement standardized protective packaging and efficient fulfillment workflows, ensuring your optical transceivers arrive completely safely and promptly anywhere worldwide.
Anti-Static Protective Packaging
Each transceiver is individually sealed in an ESD-safe anti-static bag.
Shock-Resistant Transport Protection
Custom blister trays shield optics against physical shock and transit vibration.
Fast Order Processing and Dispatch
In-stock orders are processed rapidly to ensure minimal lead times.
Global Logistics and International Delivery
Partnered with top couriers for reliable express international shipping options.

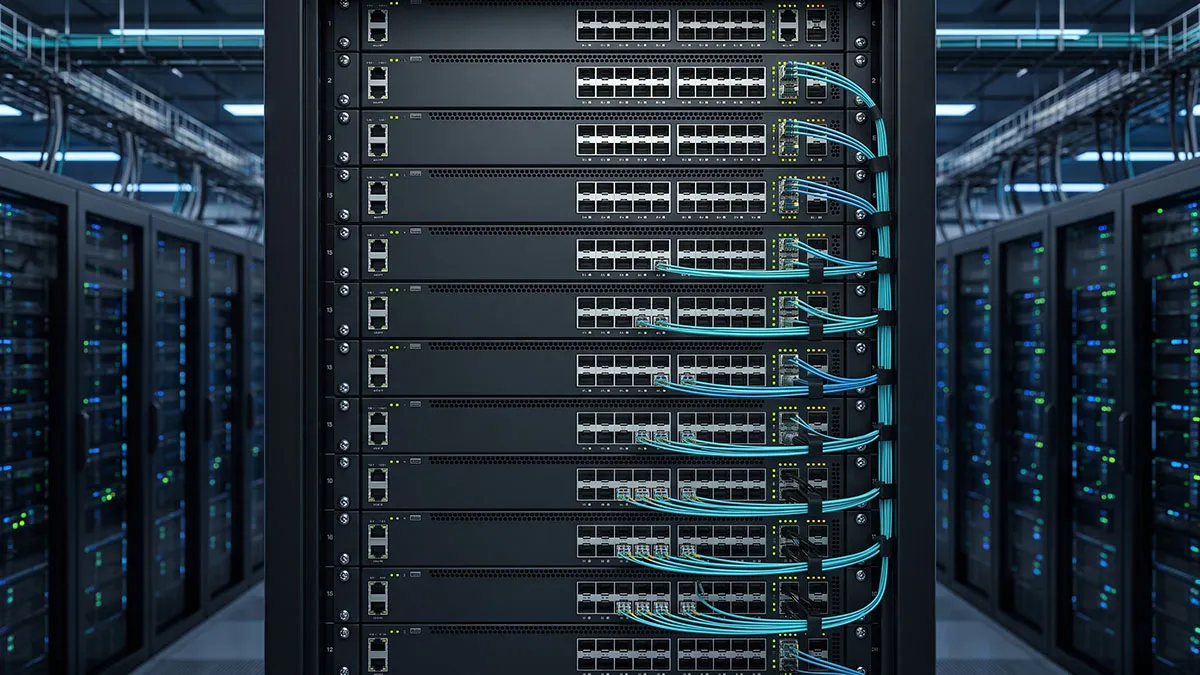

Connecting this 10G SFP+ module is seamless. Insert the transceiver into any compatible host SFP+ port until it clicks, attach duplex LC fiber jumpers, and verify instant link establishment and real-time DOM telemetry in your switch software.
LS-DW2010-80C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-DW2010-80C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
