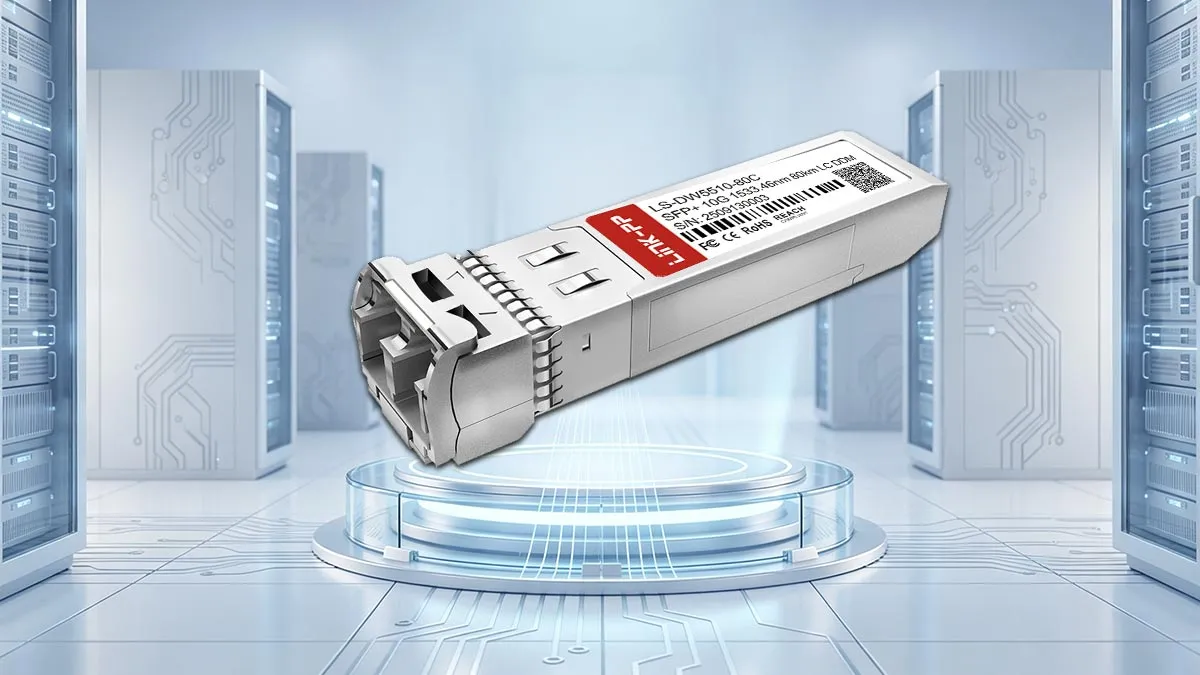

LS-DW5510-80C SFP+ module integrates a C-band cooled EML transmitter and a high-sensitivity APD photodetector to deliver robust 10Gbps DWDM connectivity up to 80km over SMF. It functions on the 100GHz ITU channel 55 (1533.46nm) and incorporates real-time digital diagnostic monitoring via a standard 2-wire interface.
LINK-PP Part Number
LS-DW5510-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1533.46nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472
Key Features of LINK-PP LS-DW5510-80C 10G SFP+
LINK-PP LS-DW5510-80C maximizes fiber infrastructure efficiency by combining 10 Gbps throughput, dense C-band wavelength multiplexing, and 80km reach in a single module. Its hot-pluggable SFP+ architecture incorporates duplex LC optics and continuous DDM telemetry to support stable commercial network operations.

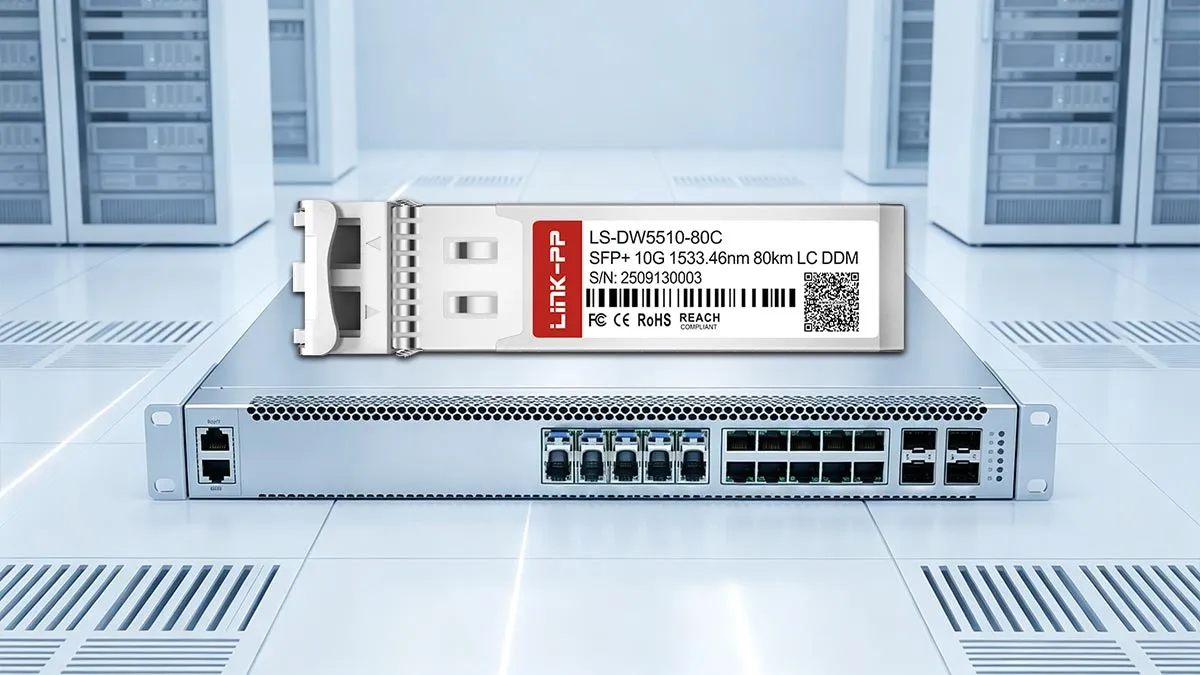

LINK-PP LS-DW5510-80C 10G SFP+ Optical Module
This transceiver features a hot-pluggable SFP+ footprint that allows seamless installation without powering down host equipment. Fully compliant with the SFP+ MSA standard, it ensures wide interoperability across commercial networking hardware and simplifies field upgrades.

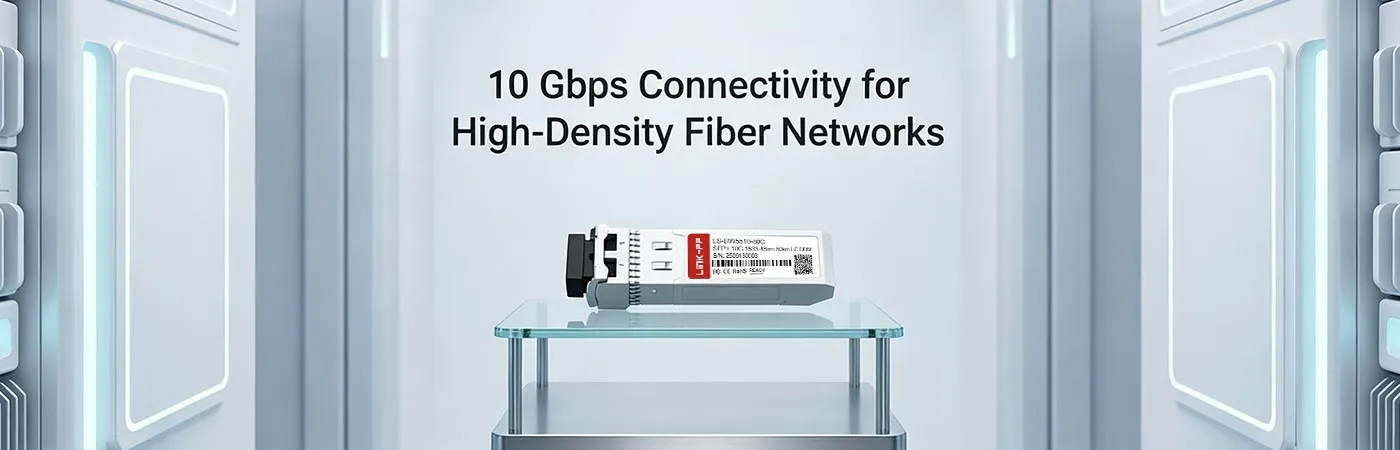

LS-DW5510-80C: 10 Gbps Connectivity for High-Density Fiber Networks
The module delivers a steady 10 Gbps data throughput to handle bandwidth-intensive traffic across dense enterprise and carrier aggregation layers. Network operators can deploy it in high-density switching platforms to expand backbone capacity without adding physical rack space.

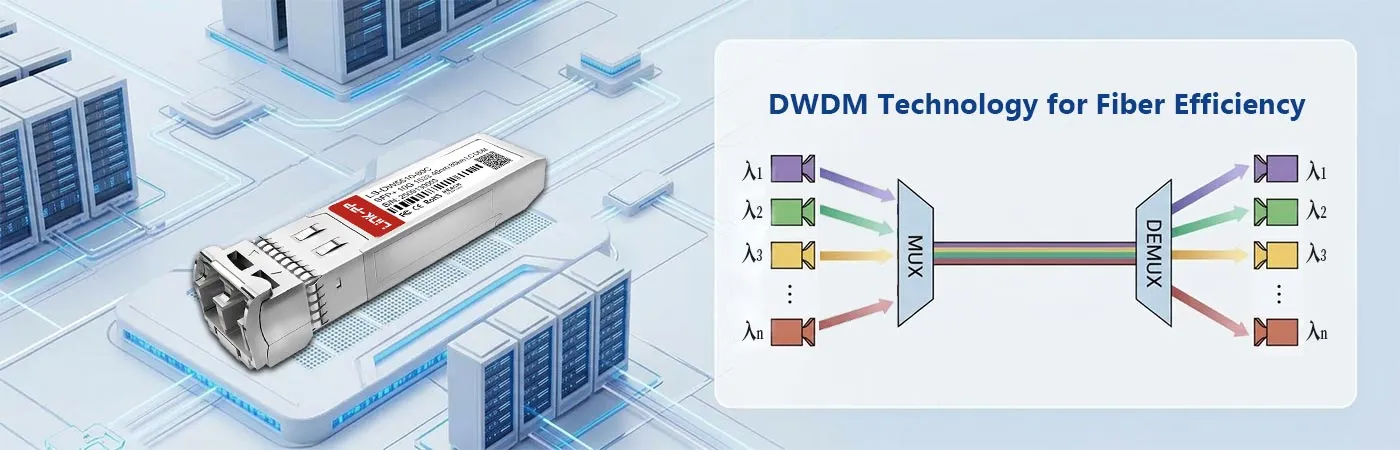

LS-DW5510-80C Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology enables this module to transmit data alongside multiple other optical channels over a single fiber pair. This capability maximizes existing fiber infrastructure and significantly lowers the cost of leasing or running new dark fiber.

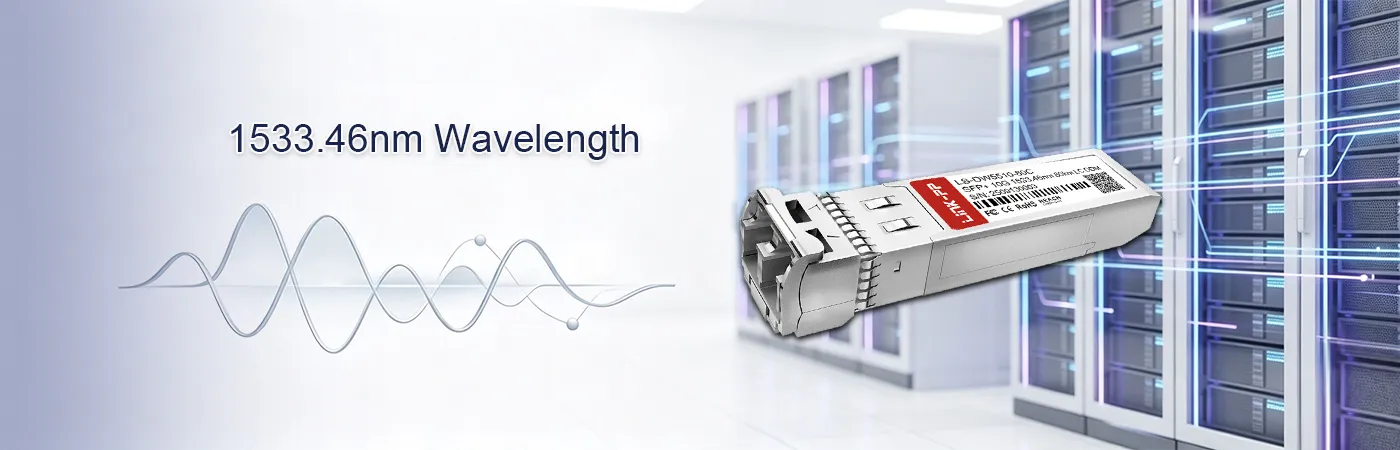

LS-DW5510-80C Module with 1533.46nm Wavelength
Operating on the 100GHz ITU grid, the C55 1533.46nm channel delivers precise optical alignment within the low-attenuation C-band spectrum. The integrated cooled EML laser maintains exceptional wavelength stability to eliminate channel crosstalk in multi-wavelength setups.
LS-DW5510-80C Module Supporting 80km Transmission
An internal APD receiver pairing enables the device to sustain point-to-point links across single-mode fiber reaches up to 80km. It reliably bridges long-distance metro networks and inter-building spans without requiring intermediate optical amplification.

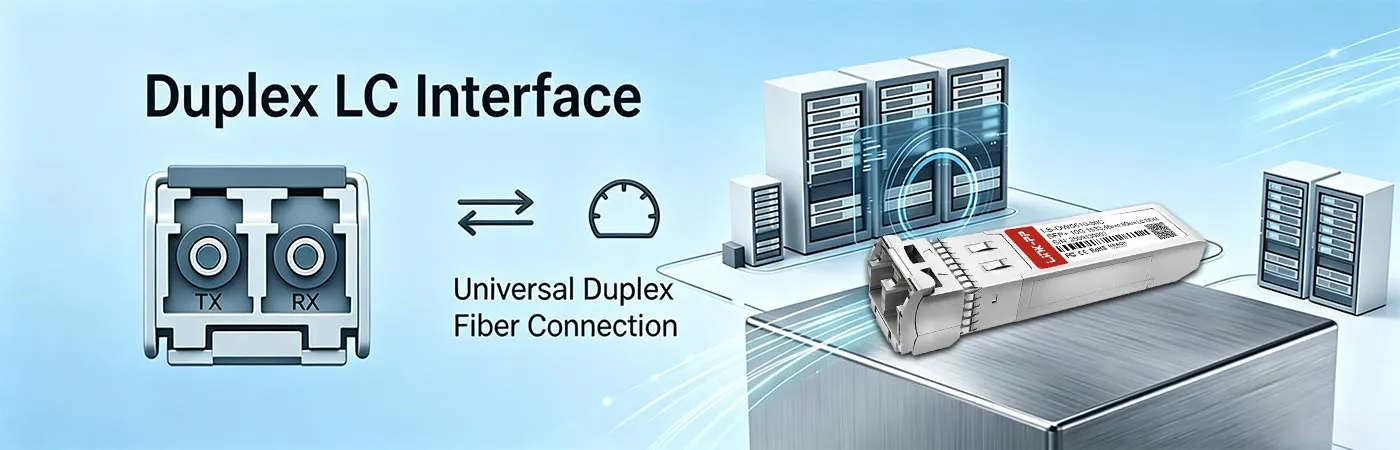

LS-DW5510-80C Module with Duplex LC Interface
The optical interface adopts industry-standard duplex LC receptacles to ensure secure and low-insertion-loss mating with common SMF patch cords. Its established mechanical design provides robust fiber retention and smooth compatibility with enterprise patch panels.

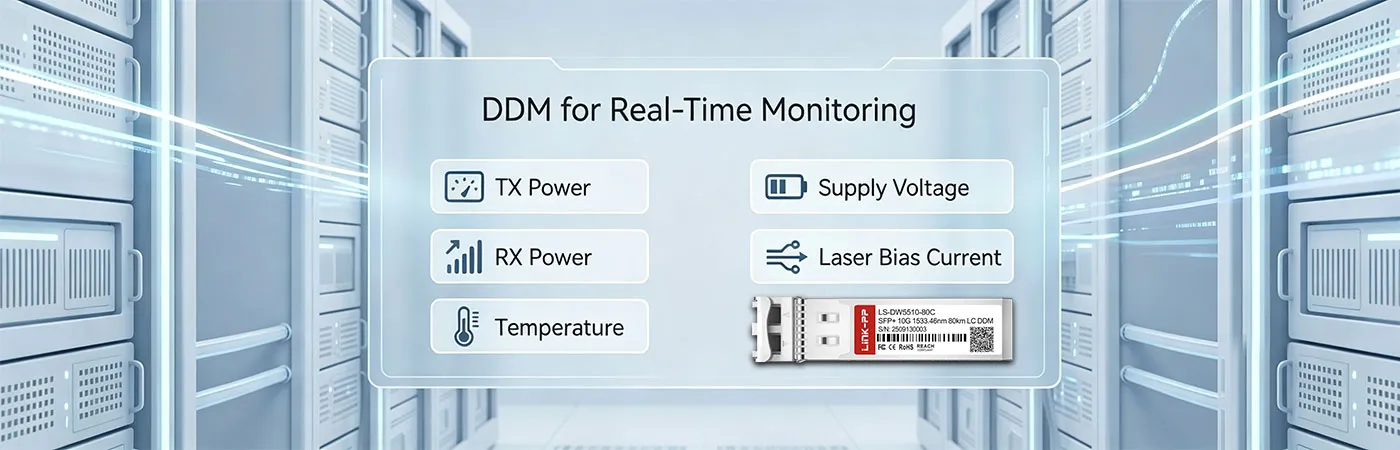

LS-DW5510-80C Module with DDM for Real-Time Monitoring
Built-in digital diagnostic monitoring is fully compatible with SFF-8472 standards, giving engineers instant visibility into operating temperature, optical power, bias current, and supply voltage. Real-time telemetry lets maintenance teams detect link anomalies early and streamline network troubleshooting.
LINK-PP LS-DW5510-80C 10G SFP+ Certification
LINK-PP LS-DW5510-80C 10G SFP+ module meets strict international manufacturing and safety standards, holding key certifications including ISO 9001, CE, RoHS, and FCC. These official approvals ensure reliable build quality, environmental safety, and stable operation for enterprise optical networks.
Every DWDM SFP+ module passes strict optical performance checks, temperature tests, and aging inspections before delivery. This thorough testing process ensures steady 10G data flow and reliable transmission over 80km spans.
LS-DW5510-80C Quality Certifications
Built according to established global regulatory and industry standards, the transceiver delivers safe and reliable optical transmission. These proven credentials guarantee dependable hardware operation across demanding commercial environments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-DW5510-80C Certified for Reliable Host-Device Compatibility
Each module is tested on popular switches and routers to ensure seamless plug-and-play performance. Standard EEPROM coding allows host systems to recognize the device immediately without configuration errors.
Every LS-DW5510-80C DWDM 10G SFP+ optical transceiver passes through comprehensive testing procedures to ensure rock-solid stability and flawless data transmission. For detailed verification processes, explore our LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength precision to prevent multi-channel optical crosstalk.
Eye Pattern Test
Evaluate transmitter signal quality to ensure clean waveform clarity.
Bit Error Rate Test
Check data packet integrity to guarantee error-free long-distance transmission.
Temperature Test
Assess thermal endurance limits to maintain consistent field reliability.
Product Shipping for LINK-PP LS-DW5510-80C 10G SFP+
Every LS-DW5510-80C 10G DWDM SFP+ transceiver is carefully prepared and securely packaged to ensure complete safety throughout transit. We partner with established international couriers to provide swift, dependable delivery directly to your facility.
Anti-Static Protective Packaging
Shield delicate electronic components to prevent electrostatic discharge damage.
Shock-Resistant Transport Protection
Safeguard optical modules against impacts during long-distance cargo handling.
Fast Order Processing and Dispatch
Prepare and fulfill customer shipments promptly to avoid project delays.
Global Logistics and International Delivery
Coordinate worldwide freight routes to ensure reliable on-time package arrival.

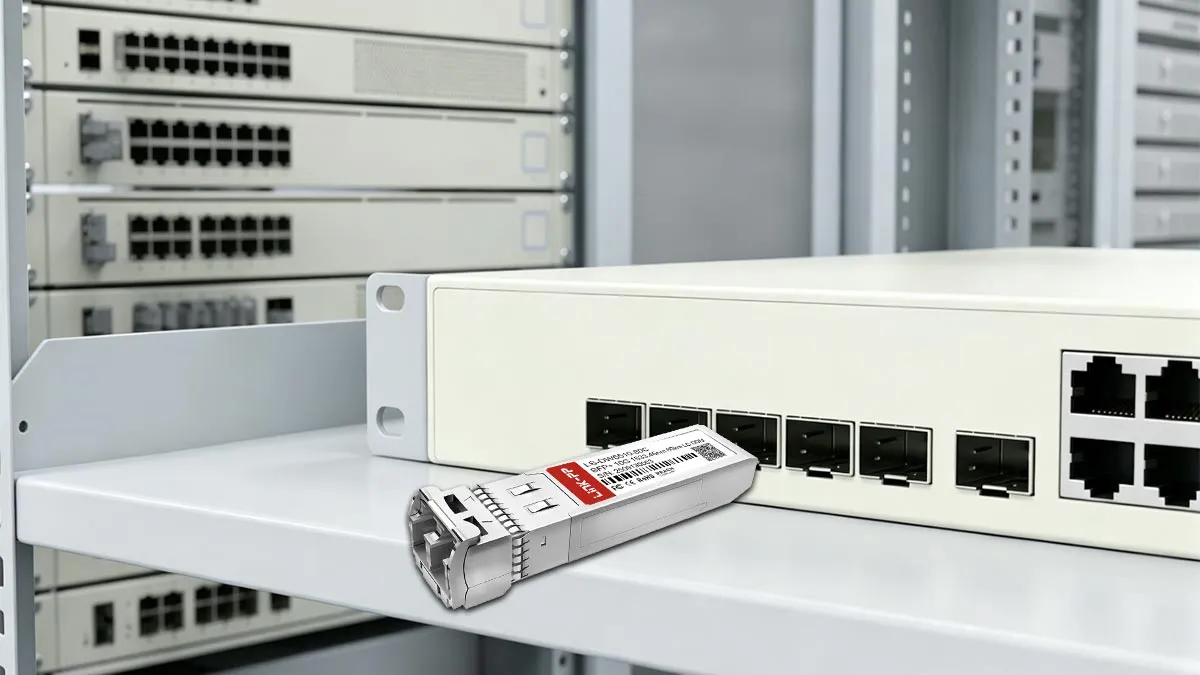

Simply insert the LS-DW5510-80C hot-pluggable 10G DWDM module into an SFP+ port, remove the dust cap, and connect clean duplex LC patch cords. It integrates effortlessly into high-density fiber networks, enabling network engineers to scale backbone throughput and multiplex multiple 10G channels across dense aggregation switches.
LS-DW5510-80C Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-DW5510-80C module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
You will need single-mode fiber with standard duplex LC connectors. Multimode fiber is not designed for DWDM wavelengths or long-haul transmission and should not be used here. By
admin
A:
The module is built with a cooled EML transmitter specifically tuned for the 100GHz ITU grid, which helps keep the 1533.46nm wavelength stable and minimizes channel crosstalk in typical multi-channel DWDM multiplexing setups. By
admin
A:
It operates on a standard single +3.3V power supply adhering to the SFP+ MSA specification, so it generally draws power directly from normal switch SFP+ ports without requiring specialized power feeds. By
