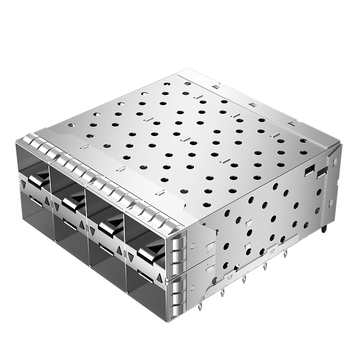

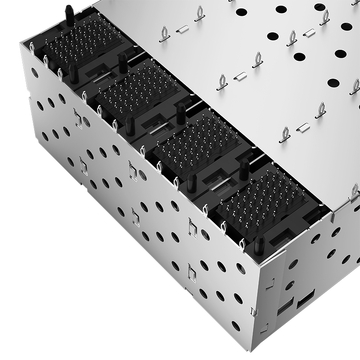

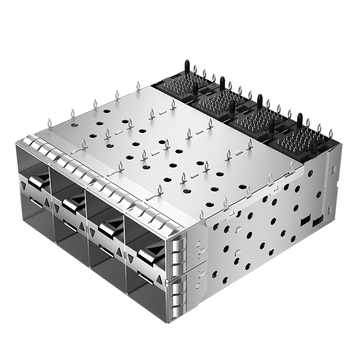

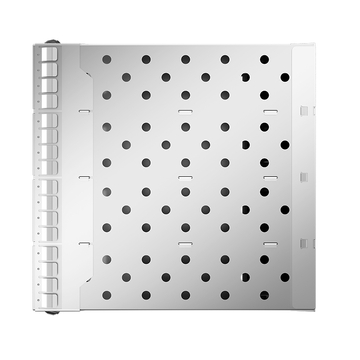

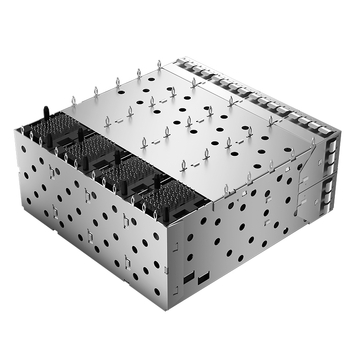

LP24CC01301S SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle

Name: LP24CC01301S SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle
Brand: LINK-PP
SKU: 203949
Price: 17.80 USD
Availability: InStock
Rating: 4.9 (18 reviews)

Product: LP24CC01301S SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle
SKU: 203949
P/N: LP24CC01301S REVB
Price: $ 17.80
Stock: 280 in Stock
Sold: 5.7K
Product URL: https://www.l-p.com/products/493394.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

18 Reviews

3 Questions

5.7K Sold

$ 17.80

Free shipping over $99. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 17.80

$ 16.91

100

$ 16.02

1000

$ 15.13

2500

$ 14.24

P/N: LP24CC01301S REVB SKU: 203949

Compatible:: LINK-PP; Amphenol

Compatible P/N:: LP24CC01301S REVB

Shipping:

To Be Negotiated

$ 44.65

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 10 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

280 in Stock .

Quantity:

Total Price:

$ 17.80

Specifications
Comparison
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LP24CC01301S REVB SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger

LINK-PP Part Number	LP24CC01301S REVB	Part Status	Active
Connector Style	Receptacle with Cage, Ganged (2x4)	Connector Type	SFP28
Mounting Type	Through Hole, Right Angle	Termination	Press-Fit
Port Matrix Configuration	2x4 Port	Number of Ports	8
Features	EMI Shielded	Termination	Press-Fit
Included Lightpipe	Outer Light Pipe	EMI Containment Feature Type	EMI Springs
Height (Inches/mm)	1.00/25.40	Length (Inches/mm)	2.490/63.25
Width (Inches/mm)	2.274/57.75	Operating Temperature Range	-40 – 85°C

Model Comparison Table

	Current Model LP24CC01301S REVB	LP24CC01003S	LP24CC01603S	LP24CC01103	LP24CC01203

Compatible	LINK-PP	LINK-PP	LINK-PP	LINK-PP	LINK-PP
Connector	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)
Operating Temperature	-40 – 85°C	-40 – 85°C	-40 – 85°C	-40 – 85°C	-
Pluggable I/O Product Type	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector	Cage Assembly with Integrated Connector
EMI Containment Feature Type	EMI Springs	EMI Springs	EMI Springs	EMI Springs	EMI Springs
Lightpipe Options	With Lightpipe	Not Optional	With Lightpipe	With Lightpipe	With Lightpipe
Termination Method to Printed Circuit Board	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit
Part Status	Active	Active	Active	Active	Active
Connector Style	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)	Receptacle with Cage, Ganged (2x4)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Press-Fit	Through Hole - Press-Fit	Through Hole - Press-Fit	Press-Fit	Through Hole - Press-Fit
Port Matrix Configuration	2x4 Port	2x4 Port	2x4 Port	2x4 Port	2x4 Port
Number of Ports	8	8	8	8	8
Features	EMI Shielded	EMI Shielded	EMI Shielded	EMI Shielded	EMI Shielded
Included Lightpipe	Outer Light Pipe	No	Outer Light Pipe	Inner/Outer Light Pipe	Inner Light Pipe
Height	1.00/25.40	1.00/25.40	1.00/25.40	1.00/25.40	1.008/25.60
Length (Inches/mm)	2.490/63.25	2.490/63.25	2.490/63.25	2.490/63.25	2.488/63.20

Action

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LP24CC01301S REVB.pdf Download

Questions & Answers
Ask a Question

No data

Q: What is current stock status of LP24CC01301S REVB for large鈥憊olume purchase? By T***y

A: Real‑time stock quantity is shown on product page. Sales will confirm production lead‑time for orders above available stock. By admin
Q: Is LINK‑PP LP24CC01301S REVB drop‑in compatible with Amphenol SFP28 cage assemblies? By C***e

A: Yes, LP24CC01301S REVB supports cross‑compatibility with Amphenol and matches standard PCB footprint for direct replacement. By admin
Q: Where can I download datasheet and mechanical drawing for LP24CC01301S REVB? By S***s

A: Full PDF datasheet and drawing can be downloaded directly from download section on the LINK‑PP product webpage. By admin
