molex 1700714001 compatible link-pp lp24cc01003s sfp28 2x4 cage&connector with emi spring finger

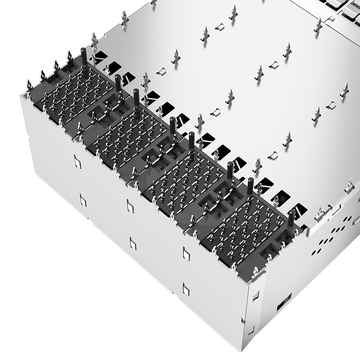

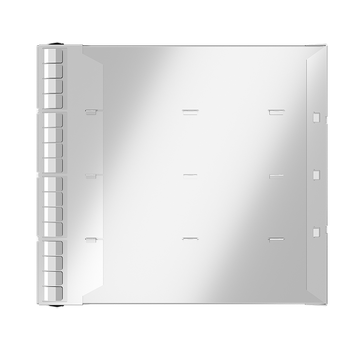

Molex 1700714001 Compatible LINK-PP LP24CC01003S SFP28 2x4 Cage&Connector With EMI Spring Finger

Product summary

Product
Molex 1700714001 Compatible LINK-PP LP24CC01003S SFP28 2x4 Cage&Connector With EMI Spring Finger
SKU
203596
P/N
LP24CC01003S
Price
$ 16.01
Stock
180 in Stock
Sold
920
Unit price $ 16.01
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24CC01003SSKU: 203596

Compatible with Molex 1700714001Datasheet3D ModelAll downloads

Compatible P/N:
1700714001
Volume pricing Online tiers · larger qty or custom price on request
$ 16.010
1–99 pcs
$ 13.721
100–999 pcs
$ 12.006
1,000–4,999 pcs
$ 11.406
5,000–9,999 pcs
$ 10.805
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
180 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 16.01

Molex 1700714001 Compatible LINK-PP LP24CC01003S SFP28 2x4 Cage&Connector With EMI Spring Finger

LINK-PP Part Number LP24CC01003S Molex Part Number
1700714001
Product Type Receptacle with Cage, Ganged (2x4) Form Factor SFP28
Mounting Type Through Hole, Right Angle Features EMI Shielded
Port Matrix Configuration 2x4 Port Number of Ports 8
Included Lightpipe No EMI Containment Feature Type EMI Springs
Height (Inches/mm) 1.00/25.40 Length (Inches/mm) 2.490/63.25
Width (Inches/mm) 2.274/57.75 Operating Temperature Range -40 – 85°C

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24CC01003S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    On our samples retention was still above 12N after 200 cycles. The springs are the wearing part, and a port patched daily in a lab will feel softer after a few years but still hold. Replace the cage only if a module drops out under its own cable weight. by LINK-PP Technical Support
  • A:
    Slightly, because there is more clearance above the ports for air to move, but the difference is small compared with how much airflow you provide. On our card both variants settled within 2 degrees of each other at the same ambient and the same duct. by LINK-PP Technical Support
  • A:
    The page lists 25.40mm height and 57.75mm width but not the depth. The family's 2x1 parts are 63.25mm deep and this shares the port geometry, so expect around 63mm. Measure a sample before you finalise the chassis opening. by LINK-PP Technical Support
  • A:
    No. The piped and unpiped versions are different parts and you cannot retrofit a pipe. If there is any chance you will need front panel indicators above the ports, order the piped variant now, because changing later means a new cage and a new bezel. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    13 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (13)
No data
E***d
Norway
Verified Purchase
5.0
2026-04-10
One thing to check if you are switching from the piped version: the cage is shorter above the port, so the gap to the chassis lid grows. That is good for airflow and bad if your lid gasket was sized for the taller part. Check the gasket compression before you change variants.
P***s
Spain
Verified Purchase
4.0
2026-03-31
Four stars because the page does not list the depth. Height and width are there, but the depth is what decides how far the module sits proud of the panel and we had to measure it.
B***n
Israel
Verified Purchase
5.0
2026-01-10
We pressed 24 units into 1.6mm FR4 and checked all 160 tails per cage. No bending, pull-out above 30N on five destructive samples, port spacing within 0.02mm. Retention after 200 mate cycles on one port was still above 12N, which is the number that decides whether a port feels loose after two years.
E***k
India
Verified Purchase
5.0
2025-08-22
The reason we standardised on the unpiped 2x4 is that our front panel design puts the indicators on a strip board, and the piped cage would have added height and a bezel opening we would have had to tool. On a 1U chassis with a heatsink above the cage, that 4mm of extra height is the difference between fitting and not.
M***k
Austria
Verified Purchase
5.0
2025-08-22
Tray packing, no bent corners, all tails straight. =D
