molex 1712244014 compatible link-pp lp24cc01603s sfp28 2x4 cage&connector with outer light pipe emi spring finger press-fit through hole right angle
Click to open expanded view

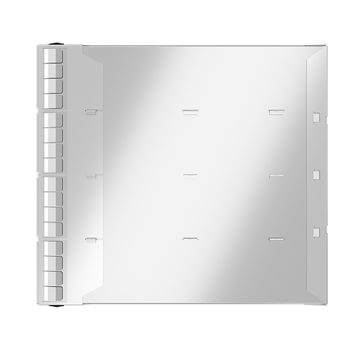

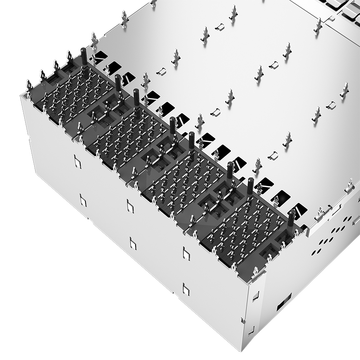

Molex 1712244014 Compatible LINK-PP LP24CC01603S SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle

Product summary

Product
Molex 1712244014 Compatible LINK-PP LP24CC01603S SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger Press-Fit Through Hole Right Angle
SKU
203594
P/N
LP24CC01603S
Price
$ 17.60
Stock
210 in Stock
Sold
1.8K
Unit price $ 17.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24CC01603SSKU: 203594

Compatible with Molex 1712244014DatasheetAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
1712244014
Volume pricing Online tiers · larger qty or custom price on request
$ 17.600
1–9 pcs
$ 16.720
10–99 pcs
$ 15.840
100–999 pcs
$ 14.960
1,000–2,499 pcs
$ 14.080
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
210 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 17.60

Molex 1712244014 Compatible LINK-PP LP24CC01603S SFP28 2x4 Cage&Connector With Outer Light Pipe EMI Spring Finger

LINK-PP Part Number LP24CC01603S Molex Part Number
1712244014
Product Type Receptacle with Cage, Ganged (2x4) Form Factor SFP28
Mounting Type Through Hole, Right Angle Features EMI Shielded
Port Matrix Configuration 2x4 Port Number of Ports 8
Included Lightpipe Outer Light Pipe EMI Containment Feature Type EMI Springs
Height (Inches/mm) 1.00/25.40 Length (Inches/mm) 2.490/63.25
Width (Inches/mm) 2.274/57.75 Operating Temperature Range -40 – 85°C

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24CC01603S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Around 180N for eight ports at roughly 22N each. Use a ram that covers the full 57.75mm and a support plate under the board. A shorter ram will bow the shell and leave the outer tails high, which on a press-fit part means a scrapped board. by LINK-PP Technical Support
  • A:
    At 45 ambient with all eight loaded we measured 70 degrees case in the middle and 66 at the ends. That is inside spec but not generous, so keep at least 6mm between cages and make sure the airflow crosses the ports rather than running along the row. by LINK-PP Technical Support
  • A:
    The page gives 25.40mm height and 57.75mm width but not the depth. The family's 2x1 parts are 63.25mm deep and this shares the port geometry, so expect around 63mm. Measure a sample before you finalise the bezel, because the depth sets how far the module sits proud of the panel. by LINK-PP Technical Support
  • A:
    It depends on your front panel. An outer pipe shows the indicator above the port, which is where operators look first. An inner pipe shows it inside the port opening. The cage footprint and press force are identical, so the decision is entirely about how your bezel is cut. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    12 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (12)
No data
T***r
United Arab Emirates
Verified Purchase
5.0
2026-04-06
One note on the outer pipe: it sits above the cage, so the bezel needs an opening above the port row rather than inside the port. If your panel was cut for inner pipes, this part will not light anything and you will think the LEDs are dead.
G***n
Greece
Verified Purchase
4.0
2026-02-19
Four stars because the page does not give the depth. Height 25.40mm and Width 57.75mm are there, but for a ganged cage the depth decides how far the modules protrude and we had to measure a sample.
T***t
Japan
Verified Purchase
5.0
2025-11-23
We pressed 20 units with 160 tails each and inspected every tail. No bending, pull-out above 30N, port spacing within 0.02mm. After 120 thermal cycles the spacing moved 0.04mm at the ends, which is inside what a bezel can absorb. That is the number we track, because a bezel that no longer fits after a year is a field problem you cannot fix.
A***d
Egypt
Verified Purchase
5.0
2025-11-16
Eight 25G ports in one part is a lot of heat in a small area. At 45 ambient with all eight loaded we measured 70 degrees case on the middle modules, which is inside spec but not generous. The gap between the two cages in the chassis is 6mm and the airflow crosses the ports, and without either of those the middle would have been over 80.
M***t
Poland
Verified Purchase
5.0
2025-04-17
Second order of 40. Same fit, same pipe alignment.
