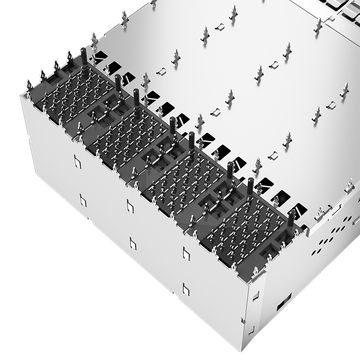

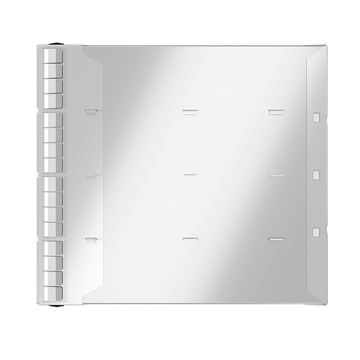

LP24CC01603S sfp28 2x4 cage assembly with integrated connector with outer light pipe emi spring finger
Click to open expanded view

LP24CC01603S SFP28 2x4 Cage Assembly With Integrated Connector With Outer Light Pipe EMI Spring Finger

Product summary

Product
LP24CC01603S SFP28 2x4 Cage Assembly With Integrated Connector With Outer Light Pipe EMI Spring Finger
SKU
203593
P/N
LP24CC01603S
Price
$ 17.60
Stock
210 in Stock
Sold
1.8K
Unit price $ 17.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24CC01603SSKU: 203593

LINK-PP originalDatasheetAll downloads

Compatible:
Molex
LINK-PP
Compatible P/N:
LP24CC01603S
Volume pricing Online tiers · larger qty or custom price on request
$ 17.600
1–9 pcs
$ 16.720
10–99 pcs
$ 15.840
100–999 pcs
$ 14.960
1,000–2,499 pcs
$ 14.080
≥2,500 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
210 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 17.60

LINK-PP LP24CC01603S SFP28 2x4 Cage Assembly With Integrated Connector With Outer Light Pipe EMI Spring Finger

LINK-PP Part Number LP24CC01603S Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP28
Max Data Rate 28 Gbps Features EMI Shielded
Port Matrix Configuration 2×4 Number of Ports 8
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.079/2.00 Recommended PCB Thickness (Inches/mm) -
Length (Inches/mm) 2.490/63.25 Width (Inches/mm) 2.274/57.75 (REF)
Height (Inches/mm) 1.014/25.75 Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24CC01603S.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Around 180N for eight ports at roughly 22N each. Use a ram that covers the full 57.75mm and a support plate under the board. A shorter ram will bow the shell and leave the outer tails high, which on a press-fit part means a scrapped board. by LINK-PP Technical Support
  • A:
    At 45 ambient with all eight loaded we measured 70 degrees case in the middle and 66 at the ends. That is inside spec but not generous, so keep at least 6mm between cages and make sure the airflow crosses the ports rather than running along the row. by LINK-PP Technical Support
  • A:
    The page gives 25.40mm height and 57.75mm width but not the depth. The family's 2x1 parts are 63.25mm deep and this shares the port geometry, so expect around 63mm. Measure a sample before you finalise the bezel, because the depth sets how far the module sits proud of the panel. by LINK-PP Technical Support
  • A:
    It depends on your front panel. An outer pipe shows the indicator above the port, which is where operators look first. An inner pipe shows it inside the port opening. The cage footprint and press force are identical, so the decision is entirely about how your bezel is cut. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    24 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (24)
No data
H***t
Sweden
Verified Purchase
4.0
2026-11-16
One corner of the shell was bent, but the openings lined up with no problems. Outer pipes run on the outside, so the front panel stays open at 57.75 mm wide.
J***i
South Africa
Verified Purchase
5.0
2026-10-31
Cables in the top row angle down and clear the panel, no fuss. =)
S***a
Saudi Arabia
Verified Purchase
5.0
2026-10-15
Eight SFP28 seats, outer pipes, worth it.
B***d
Mexico
Verified Purchase
5.0
2026-09-29
Eight SFP28 ports on one line card, and the 2x4 cage covered them in a single press stroke. Tails found the plated holes on the first try. EMI fingers bite the card edge, so the cage does not rattle when a module goes in. 25.40 mm tall and 57.75 mm wide fitted our cutout.
C***d
Germany
Verified Purchase
5.0
2026-09-13
Press fit tails went in on the first try and the cage sat flat.
