LF5-SM3101-60AI 155m sdh sonet 1310nm 60km 2x5 sff transceiver
Click to open expanded view

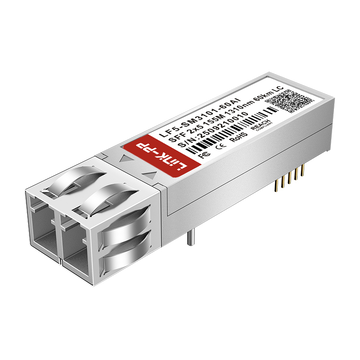

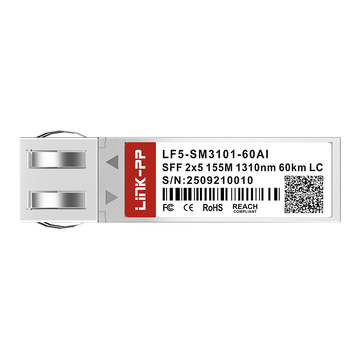

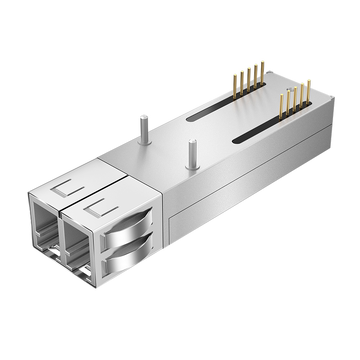

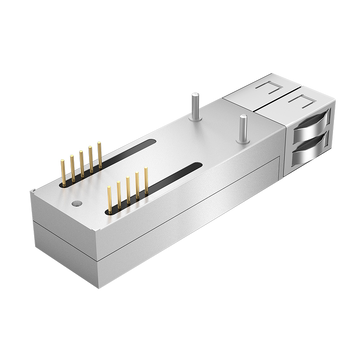

LINK-PP LF5-SM3101-60AI 155M SDH SONET 1310nm 60km 2x5 SFF Transceiver

Product summary

Product
LINK-PP LF5-SM3101-60AI 155M SDH SONET 1310nm 60km 2x5 SFF Transceiver
SKU
202936
P/N
LF5-SM3101-60AI
Price
$ 28.50
Stock
450 in Stock
Sold
150
Unit price $ 28.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LF5-SM3101-60AISKU: 202936

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 28.50
1–99 pcs
$ 27.08
100–999 pcs
$ 26.22
1,000–2,999 pcs
$ 25.37
3,000–5,999 pcs
$ 24.51
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
450 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 28.50

Specifications of LINK-PP 155M SFF Transceiver

LF5-SM3101-60AI combines a compact 2x5 SFF design with 155Mbps data transmission for SDH/SONET applications. Its 1310nm FP laser enables optical communication across single-mode fiber spans of up to 60km, while the duplex LC interface provides separate paths for signal transmission and reception. Powered by 3.3V, the transceiver operates within an industrial case temperature range of -40°C to +85°C.

LINK-PP Part Number LF5-SM3101-60AI Vendor Name LINK-PP
Form Factor SFF Max Data Rate 155Mbps
Wavelength 1310nm Max Cable Distance 60km
Connector Duplex LC Fiber Type SMF
Transmitter Type FP Receiver Sensitivity -34dBm
Power Supply 3.3V Operating Temperature Range -40 to 85°C

Key Features of LINK-PP LF5-SM3101-60AI

LINK-PP LF5-SM3101-60AI transceiver is designed for 155Mbps fiber communication in telecom equipment requiring extended transmission distances. Its compact SFF package and dedicated transmit and receive ports make it suitable for SDH/SONET applications over single-mode fiber.

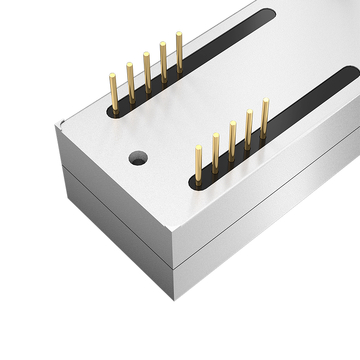

Standard 2×5 SFF Package for PCB Integration

The standard 2×5 SFF package follows an established design for mounting on compatible printed circuit boards. Its compact structure allows equipment designers to incorporate the transceiver into their existing board layouts.

155Mbps Connectivity for SDH/SONET Transmission

Supporting a data rate of 155Mbps, this transceiver meets the transmission requirements of STM-1 and OC-3 applications. It provides a suitable data transfer rate for telecom equipment using these synchronous communication standards.

1310nm Optical Output for Single-Mode Fiber Links

The module provides a nominal optical output wavelength of 1310nm for single-mode fiber transmission. This wavelength supports consistent signal delivery and helps maintain proper wavelength matching across the communication link.

60km Optical Reach for Extended Fiber Routes

The transceiver supports fiber transmission distances of up to 60km over single-mode fiber. This extended reach makes it suitable for connecting telecom equipment across widely separated locations.

Duplex LC Interface for Separate TX/RX Connections

The duplex LC interface provides two separate ports for connecting the transmit and receive fibers. This arrangement keeps the outgoing and incoming signal paths separate for reliable communication between connected equipment.


LINK-PP LF5-SM3101-60AI 155M SFF Certification

LINK-PP LF5-SM3101-60AI SFF transceiver meets applicable quality and compliance requirements, including ISO 9001, CE, RoHS, and FCC, supporting product conformity and controlled manufacturing processes.

Optical Transceivers Testing

Quality inspections focus on data accuracy, signal consistency, and overall operation to identify potential issues and confirm that the module meets its specified requirements.

LF5-SM3101-60AI Quality Certifications

Available quality certificates provide evidence that the product meets recognized requirements for manufacturing practices, product quality, and regulatory compliance.

Standard Multi-Vendor PCB Footprint Compatibility

The standard 2×5 SFF footprint allows use across different equipment platforms with matching PCB footprints and electrical connections.


Rigorous Testing Ensures Reliable SFF Performance

The LF5-SM3101-60AI is checked through several test stages covering wavelength accuracy, signal quality, data errors, and temperature response. Together, these checks help assess its performance for 155Mbps transmission over extended fiber routes; learn more at the LINK-PP Test Support Center.

Optical

Optical Spectrum Test

Measure the 1310nm spectrum to verify stable laser wavelength output.

Optical

Eye Pattern Test

Evaluate eye patterns to check signal clarity and transmission stability.

Optical

Bit Error Rate Test

Count transmission errors to evaluate data accuracy across test links.

Optical

Temperature Test

Check module operation across its rated -40°C to +85°C range.


Product Shipping for LINK-PP LF5-SM3101-60AI 155M SFF

LINK-PP LF5-SM3101-60AI SFF transceivers pass through established packaging and shipment procedures before leaving the facility. Each order is processed with care to support product protection, timely dispatch, and smooth delivery.

Anti-Static Protective Packaging

Anti-Static Protective Packaging

Place modules in protective anti-static packaging to limit static exposure.

Shock-Resistant Transport Protection

Shock-Resistant Transport Protection

Keep transceivers safe from physical impacts during handling and delivery.

Fast Order Processing and Dispatch

Fast Order Processing and Dispatch

Review orders promptly and schedule dispatch according to confirmed timelines.

Global Logistics and International Delivery

Global Logistics and International Delivery

Arrange overseas delivery and provide updates throughout the shipping process.

LINK-PP LF5-SM3101-60AI 155M SFF Usage Demonstration

Align the LF5-SM3101-60AI optical transceiver with the matching 2×5 SFF PCB footprint and solder its pins to establish secure board connections. Attach the duplex LC fiber connectors to the corresponding TX and RX ports. Power on the equipment and check the link status to confirm successful data transmission.

LF5-SM3101-60AI Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal LF5-SM3101-60AI module for your network design and application needs.

Compatibility Verification Support

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP LF5-SM3101-60AI 155M SFF After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15 days

15-day no-reason return and refund

Free maintenance or replacement

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free maintenance

 Free repair services for manufacturing defects throughout the warranty period

Limitations

Warranty exclusions and conditions apply

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LF5-SM3101-60AI.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, both are 2x5 SFF with LC and 3.3V. The card does not know which is fitted, so label the ports. Putting a 40km module in a 52km span will link when the fiber is new and drop out as splices age. by LINK-PP Technical Support
  • A:
    No. We measured the case at 68 degrees at 55 ambient, which is inside the 85 degree rating with 17 degrees of margin. Just keep the module away from any DC-DC converter in the cabinet and make sure there is a vent above it, because a sealed pole box traps heat at the top. by LINK-PP Technical Support
  • A:
    At 155Mbps an FP at 1310 is usable to about 60km, but the dispersion penalty is around 1dB at that distance and the chirp starts to matter. Our 52km span measured 0.6dB of penalty. If you plan to run at the full 60km on poor fiber, a DFB is the safer engineering choice. by LINK-PP Technical Support
  • A:
    52km at 0.35dB per km plus five splices at 0.5dB plus 1.5dB of connectors is about 19dB. With -2.6dBm launch you receive near -26dBm against -35dBm sensitivity, so roughly 8dB of margin. Each new splice costs 0.3 to 0.5dB, so you can absorb two more. A third should trigger a move to a DFB part. by LINK-PP Technical Support

Customer Reviews

  • 5

    21 Reviews

  • 5 Stars
    95%
    4 Stars
    5%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (21)
No data
R***d
Brazil
Verified Purchase
5.0
2026-11-15
STM-1 at 60 km, 2x5 pads saved us a respin.
G***k
Greece
Verified Purchase
5.0
2026-10-25
2x5 SFF took half the board width of the 1x9, and the LC port saved us a connector change. 60 km over single mode on a 3.3 V rail ;)
A***w
Canada
Verified Purchase
5.0
2026-10-25
We compared this with an 80km part and chose 60km. The 80km would have needed an attenuator on a 52km span, and an attenuator in a pole cabinet is one more part to fail and one more thing for a technician to forget during a cutover.
K***d
Brazil
Verified Purchase
5.0
2026-08-03
Second lot matched the first on output power and extinction ratio. We also checked the LC latch on all 12 because the pole cabinet bulkheads are machined to a tight tolerance, and every one mated without force.
J***n
Ukraine
Verified Purchase
5.0
2026-05-21
One caution: at 52km the dispersion penalty at 155Mbps is small but not zero. We measured about 0.6dB of penalty against a back to back reference, which is inside the budget. At 60km it would be closer to 1dB, so do not plan to run this part at its full rating on poor fiber.
