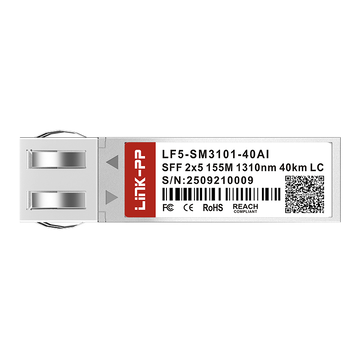

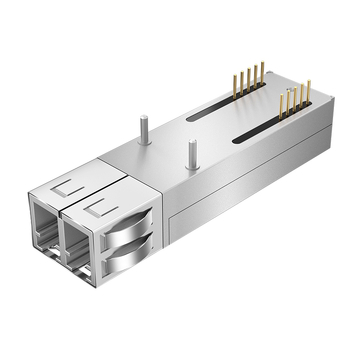

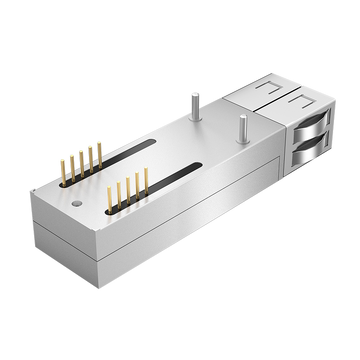

LF5-SM3101-40AI 155m sdh sonet 1310nm 40km 2x5 sff transceiver (industrial)
Click to open expanded view

LINK-PP LF5-SM3101-40AI 155M SDH SONET 1310nm 40km 2x5 SFF Transceiver (Industrial)

Product summary

Product
LINK-PP LF5-SM3101-40AI 155M SDH SONET 1310nm 40km 2x5 SFF Transceiver (Industrial)
SKU
202934
P/N
LF5-SM3101-40AI
Price
$ 28.50
Stock
170 in Stock
Sold
235
Unit price $ 28.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LF5-SM3101-40AISKU: 202934

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 28.50
1–99 pcs
$ 27.08
100–999 pcs
$ 26.22
1,000–2,999 pcs
$ 25.37
3,000–5,999 pcs
$ 24.51
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
170 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 28.50

Specifications of LINK-PP 155M SFF Transceiver

LF5-SM3101-40AI is a 155M 2x5 SFF optical transceiver designed for SDH/SONET communication systems. It features a 1310nm FP laser transmitter for optical data transmission over single-mode fiber at distances of up to 40km, with a duplex LC interface for signal transmission and reception. The module operates on a 3.3V power supply and supports an industrial operating temperature range of -40°C to +85°C.

LINK-PP Part Number LF5-SM3101-40AI Vendor Name LINK-PP
Form Factor SFF Max Data Rate 155Mbps
Wavelength 1310nm Max Cable Distance 40km
Connector Duplex LC Fiber Type SMF
Transmitter Type FP Receiver Sensitivity -34dBm
Power Supply 3.3V Operating Temperature Range -40 to 85°C

Key Features of LINK-PP LF5-SM3101-40AI

LINK-PP LF5-SM3101-40AI is a compact optical transceiver designed for 155Mbps fiber communication in SDH/SONET equipment. Its 2×5 SFF package, 1310nm optical transmission, and duplex LC interface provide a practical solution for STM-1/OC-3 connections over distances of up to 40km.

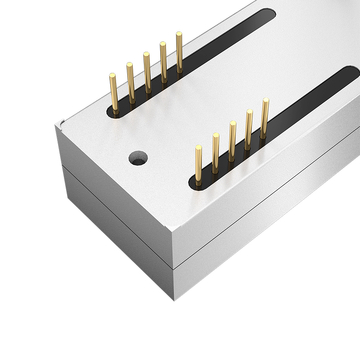

Standard 2×5 SFF Package for PCB Integration

The 2×5 SFF package features a compact design that fits into corresponding PCB layouts. Its standardized form makes it suitable for integration into optical communication equipment with matching mounting requirements.

155Mbps Data Transfer for STM-1/OC-3 Links

With a data rate of 155Mbps, this transceiver handles data transmission at the rate required by STM-1 and OC-3 applications. It provides a suitable optical transmission option for telecom equipment designed around this data rate.

1310nm Wavelength for SMF Transmission

The transceiver operates at a nominal wavelength of 1310nm, providing a defined optical wavelength for signal transmission. This wavelength helps maintain consistent optical output and ensures proper wavelength matching within the fiber communication link.

40km Transmission Reach for Extended Fiber Links

The transceiver supports optical transmission distances of up to 40km over single-mode fiber. This extended reach allows network equipment at separate locations to exchange data through longer fiber routes.

Duplex LC Interface for Separate Optical Paths

The duplex LC interface provides two separate ports for transmitting and receiving optical signals. Connecting the TX and RX fibers to their corresponding ports establishes the two optical paths needed for bidirectional communication.


LINK-PP LF5-SM3101-40AI 155M SFF Certification

LINK-PP LF5-SM3101-40AI optical transceiver follows recognized quality and compliance standards, including ISO 9001, CE, RoHS, and FCC, supporting consistent product quality and regulatory compliance.

Optical Transceivers Testing

Each 155M SFF module is evaluated through optical, electrical, and temperature checks to assess signal transmission and operation under its specified working conditions.

LF5-SM3101-40AI Quality Certifications

This SFF transceiver holds recognized quality certifications that confirm its conformity with applicable manufacturing standards and product compliance requirements.

Standard Multi-Vendor PCB Footprint Compatibility

The standard 2×5 SFF package and pin arrangement provide a consistent mounting design for integration into equipment with matching PCB layouts.


Rigorous Testing Ensures Reliable SFF Performance

The LF5-SM3101-40AI SFF transceiver is checked for wavelength output, signal waveform quality, data transmission errors, and temperature response. These test results help confirm that the module meets its specified operating requirements; learn more at the LINK-PP Test Support Center.

Optical

Optical Spectrum Test

Measure the 1310nm optical spectrum to confirm output wavelength accuracy.

Optical

Eye Pattern Test

Inspect the eye pattern to assess signal quality and timing.

Optical

Bit Error Rate Test

Measure bit errors during data transmission to check communication accuracy.

Optical

Temperature Test

Check module operation across the specified -40°C to +85°C range.


Product Shipping for LINK-PP LF5-SM3101-40AI 155M SFF

LINK-PP LF5-SM3101-40AI optical transceivers follow established packing and shipping procedures to support safe order fulfillment. Each module is handled carefully, with shipment updates provided as orders move through the delivery process.

Anti-Static Protective Packaging

Anti-Static Protective Packaging

Apply anti-static protection to safeguard modules during packing and transit.

Shock-Resistant Transport Protection

Shock-Resistant Transport Protection

Secure packages to reduce movement and protect modules during transit.

Fast Order Processing and Dispatch

Fast Order Processing and Dispatch

Process orders promptly and provide customers with timely dispatch updates.

Global Logistics and International Delivery

Global Logistics and International Delivery

Share tracking details for customers monitoring international shipments during delivery.

LINK-PP LF5-SM3101-40AI 155M SFF Usage Demonstration

Align the LF5-SM3101-40AI transceiver with the corresponding 2×5 SFF PCB footprint and secure its pins through soldering. Connect the duplex LC fiber connectors to the TX and RX optical ports. Power on the equipment and check the optical link status to confirm normal operation.

LF5-SM3101-40AI Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal LF5-SM3101-40AI module for your network design and application needs.

Compatibility Verification Support

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP LF5-SM3101-40AI 155M SFF After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15 days

15-day no-reason return and refund

Free maintenance or replacement

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free maintenance

 Free repair services for manufacturing defects throughout the warranty period

Limitations

Warranty exclusions and conditions apply

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LF5-SM3101-40AI.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    About 200mA at 3.3V for the 40km version against 190mA for the 20km. The extra 10mA is the higher laser bias needed for the launch power. If your card budgeted exactly for the 20km part, check that delta before mixing them. by LINK-PP Technical Support
  • A:
    Yes, both are 2x5 SFF with LC and 3.3V, so the cage and power are identical. The card does not detect which module is fitted, so keep the inventory labelled. A 20km module in a 34km span will link on a cold day and drop out in summer. by LINK-PP Technical Support
  • A:
    At 155Mbps an FP at 1310 is fine to about 40km on standard single mode; the dispersion penalty is under 1dB at that distance. Beyond 50 to 60km the penalty and the chirp start to matter and a DFB is the safer choice. For your 34km span FP is the right trade. by LINK-PP Technical Support
  • A:
    34km at 0.35dB per km plus four splices at 0.5dB each plus 1.5dB of connectors lands near 13dB. With about -3dBm launch you receive around -23dBm against -34dBm sensitivity, so roughly 11dB of margin. That covers ageing and one more splice, but not two. If you expect more splicing, go to the 60km part. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    23 Reviews

  • 5 Stars
    91%
    4 Stars
    9%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
R***t
Ukraine
Verified Purchase
4.0
2026-11-16
One of the three tubes arrived creased, yet all four SFF units read within spec at RX -30 dBm over 40 km.
M***y
Denmark
Verified Purchase
5.0
2026-11-05
The 2x5 SFF fitted the old SDH board and ran stable at 155M. :)
E***d
India
Verified Purchase
5.0
2026-10-25
We keep a ring of SDH gear and the 2x5 sockets were empty on two boards. These SFF units gave 40 km at 155M from a 3.3 V rail. The FP laser settled without a warm up drift and the far end read -31 dBm. Two boards are in service again after that afternoon.
Y***g
United States
Verified Purchase
5.0
2026-10-14
The 2x5 swap was worth two boards.
S***d
Viet Nam
Verified Purchase
5.0
2026-10-14
We tested this against a 60km part and chose 40km. The 60km would have needed an attenuator on a 34km span, which is one more thing to get wrong during a night cutover and one more item in the spares kit.
