LF5-MM852G-S3CBS 2.5g 850nm 300m duplex lc mmf 2x5 sff transceiver module
Click to open expanded view

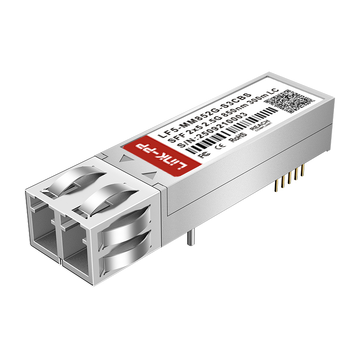

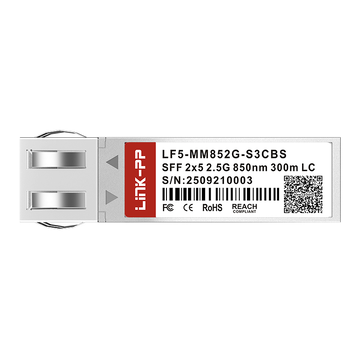

LINK-PP LF5-MM852G-S3CBS 2.5G 850nm 300m Duplex LC MMF 2x5 SFF Transceiver Module

Product summary

Product
LINK-PP LF5-MM852G-S3CBS 2.5G 850nm 300m Duplex LC MMF 2x5 SFF Transceiver Module
SKU
202918
P/N
LF5-MM852G-S3CBS
Price
$ 23.50
Stock
298 in Stock
Sold
302
Unit price $ 23.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LF5-MM852G-S3CBSSKU: 202918

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Volume pricing Online tiers · larger qty or custom price on request
$ 23.50
1–99 pcs
$ 22.33
100–999 pcs
$ 21.62
1,000–2,999 pcs
$ 20.92
3,000–5,999 pcs
$ 20.21
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
298 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 23.50

Specifications of LINK-PP 2.5G SFF Transceiver

The LINK-PP LF5-MM852G-S3CBS is a 2.5Gbps 2x5 SFF transceiver built around an 850nm VCSEL transmitter and a PIN photodiode receiver. It covers 300m on 50/125µm multimode fiber, draws at most 260mA from a single 3.3V supply, and works from 0°C to +70°C through a duplex LC port with CML output and LVTTL signal detect.

LINK-PP Part Number LF5-MM852G-S3CBS Vendor Name LINK-PP
Form Factor SFF Max Data Rate 2.5Gbps
Wavelength 850nm Max Cable Distance 300m
Connector Duplex LC Media MMF
Transmitter Type VCSEL Receiver Type PIN
Power Supply 3.3V SD or LOS SD
Receiver Sensitivity -18dBm Operating Temperature range 0 to 70°C

Key Features of LINK-PP LF5-MM852G-S3CBS

Every choice in the LF5-MM852G-S3CBS serves short 2.5Gbps runs: a 2x5 through-hole footprint, CML receiver outputs, an 850nm VCSEL, 300m reach on 50/125µm fiber, duplex LC optics, an LVTTL transmitter enable and a commercial temperature range that suits rack-mounted switches and video transport gear.

Standard SFF Package for Reliable PCB Mounting

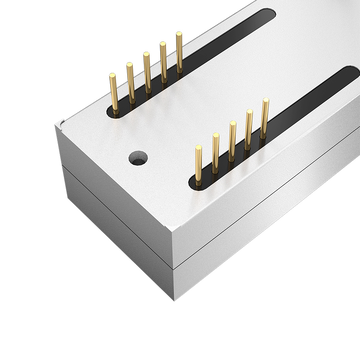

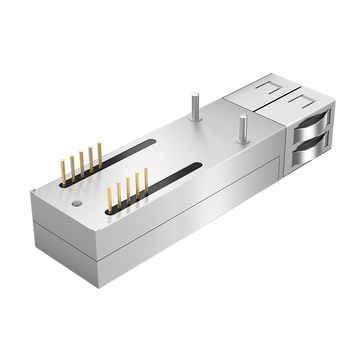

The LF5-MM852G-S3CBS uses the standard 2x5 SFF outline with ten through-hole pins on a 2.54mm grid. A metal shell shields the optics, the case is isolated from circuit ground, and the solder-down body removes plug-in contact wear on vibrating racks.

2.5G Connectivity for 2.5G Ethernet & Digital Video

The module runs at 2.5Gbps with LVPECL or CML differential inputs and CML differential outputs, matching 2.5Gbps Ethernet and digital video transport. AC-coupled I/O and a 100Ω differential impedance let it interoperate with host ASICs that expect either logic family.

850nm Wavelength for Optimal Multimode Performance

An 850nm VCSEL transmits in the first window, where 50/125µm multimode fiber offers its lowest attenuation. Centre wavelength stays within 830nm to 860nm, RMS spectral width under 0.85nm, and -10dBm to -3dBm output power keeps short links clean.

Stable 300m Transmission for Short-Reach Networks

Reach is 300m over 50/125µm multimode fiber at 2.5Gbps. Receiver sensitivity of -18dBm, -3dBm saturation and 0.5dB signal detect hysteresis leave enough margin for patch-panel loss, connector ageing and the extra loss of a mated pair.

Duplex LC Interface with Low EMI Design

A duplex LC receptacle takes standard patch cords and halves the connector footprint of SC designs. The metallized housing and the AC-coupled pinout suppress radiated emissions, easing chassis-level EMC approval for video and datacom gear.

LINK-PP LF5-MM852G-S3CBS 2.5G SFF Certification

LINK-PP tests every LF5-MM852G-S3CBS against optical, electrical and safety standards before shipment, and the module ships with the records datacom equipment builders need for their own filings.

Optical Transceivers Testing

Each unit is 100% tested for output power, sensitivity and eye margin with 2^23-1 PRBS traffic at 2.5Gbps. Lot traceability covers the VCSEL, PIN photodiode and PCB batches.

Quality Certifications & EMI/ESD Regulatory Compliance

Laser safety follows IEC 825 Class 1, and the optical eye is built to Bellcore TR-NWT-000253 and ITU-T G.957 masks. The 2x5 footprint and pinout follow the SFF multi-source agreement.

Certified for Seamless PCB Integration & Protocol Compatibility

Pin assignments, land patterns and CML levels follow the 2x5 SFF multi-source agreement, and the eye meets Bellcore TR-NWT-000253. Drop-in replacement keeps existing board layouts and host firmware unchanged.


Rigorous Testing Ensures Reliable SFF Performance

Four bench tests screen every LF5-MM852G-S3CBS before it leaves the line, covering spectrum, eye quality, error rate and temperature extremes.

Optical

Optical Spectrum Test

Centre wavelength, RMS spectral width and output power are measured to confirm 850nm VCSEL emission.

Optical

Eye Pattern Test

Filtered eye diagrams are captured at 2.5Gbps and compared against the Bellcore G.957 mask.

Optical

Bit Error Rate Test

PRBS 2^23-1 traffic confirms BER below 1E-12 at rated sensitivity over 300m of fiber.

Optical

Temperature Test

Chambers sweep 0°C to +70°C while monitoring power, sensitivity and signal detect thresholds.


Product Shipping for LINK-PP LF5-MM852G-S3CBS 2.5G SFF

Orders ship in ESD-safe trays with individual optical port caps, packed for air and sea freight and dispatched within the quoted lead time.

Anti-Static Protective Packaging

Anti-Static Protective Packaging

Each module sits in a shielded tray with dust caps fitted.

Shock-Resistant Transport Protection

Shock-Resistant Transport Protection

Foam-lined cartons absorb impact and keep pins straight in transit.

Fast Order Processing and Dispatch

Fast Order Processing and Dispatch

Stock items leave the warehouse within 24 to 48 hours.

Global Logistics and International Delivery

Global Logistics and International Delivery

Express and air freight reach North America, Europe and Asia.

LINK-PP LF5-MM852G-S3CBS 2.5G SFF Usage Demonstration

Installing the LF5-MM852G-S3CBS requires pin-in-hole soldering onto the host board. Align the ten 2x5 pins with the pads, solder each at 350°C for ten seconds, connect the duplex LC cord, then drive pin 8 high to switch the laser on.

LF5-MM852G-S3CBS Technical Support

LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.

Pre-Sales Technical Consultation

Pre-Sales Technical Consultation

Professional technical guidance to help customers select the most suitable LF5-MM852G-S3CBS modules based on network architecture and application requirements.

Compatibility Verification Support

Compatibility Verification Support

Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.

Deployment & Installation Assistance

Deployment & Installation Assistance

Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.

Long-Term Technical Assurance

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.

LINK-PP LF5-MM852G-S3CBS 2.5G SFF After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15 days

15-day no-reason return and refund

Free maintenance or replacement

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free maintenance

 Free repair services for manufacturing defects throughout the warranty period

Limitations

Warranty exclusions and conditions apply
