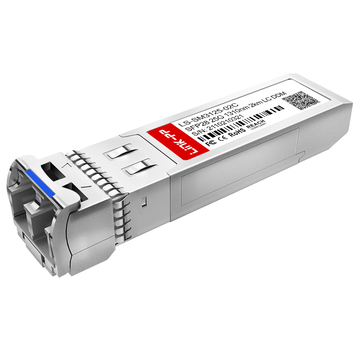

LS-SM3125-02C defines a 25G SFP28 optical transceiver that operates at 1310nm over duplex LC/UPC-terminated single-mode fiber, delivering error-free transmission up to 2km while incorporating real-time DOM diagnostics for precise link monitoring.
| LINK-PP Part Number | LS-SM3125-02C | Vendor Name | LINK-PP |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1310nm | Max Cable Distance | 2km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type |
PIN |
| Tx Power | 8 to +3dBm | Rx Power |
-14 to +3dBm |
| Receiver Sensitivity | -13.3dBm | Operating Temperature range | 0°C to +70°C |
| Protocols | MSA Compliant, CPRI, eCPRI | Warranty | 5 Years |
LINK-PP LS-SM3125-02C is a 25G SFP28 transceiver that combines a 1310nm DFB laser, a PIN photodiode, and a duplex LC/UPC interface for 2km single‑mode fiber links. It includes digital DOM for real‑time signal monitoring and supports stable operation across a wide temperature range. Together, these features make the module a reliable choice for short‑reach metro and access connections.
This module is built around a 1310nm DFB transmitter and a PIN receiver. The DFB delivers low chromatic dispersion, while the PIN ensures sufficient sensitivity for the 2km reach. Both components are integrated in a standard SFP28 form factor.
Designed for metro access networks, this module provides 25Gbps data rate over existing single‑mode fiber infrastructure. Its 2km range covers typical aggregation and edge connections, reducing the need for additional signal regeneration.
The 1310nm wavelength offers a well‑balanced operating window with low attenuation in standard single‑mode fiber. It also avoids the cost and complexity of longer‑reach 1550nm optics while maintaining good performance for short‑distance links.
With a transmission distance of up to 2km, this module is ideal for intra‑building, campus, or metro edge deployments. It easily covers the reach required for most rack‑to‑rack and floor‑to‑floor connections without using external amplifiers.
The duplex LC/UPC connector ensures quick and secure mating with standard fiber patch cords. Its UPC polish minimizes back reflection, which helps maintain signal integrity in bidirectional data links.
Digital Optical Monitoring (DOM) provides real‑time access to parameters such as transmitter power, receiver power, temperature, and supply voltage. This feature enables proactive link health checks and simplifies troubleshooting during network operation.
LINK-PP LS-SM3125-02C meets international standards such as ISO 9001, CE, RoHS, and FCC to ensure product quality and compliance.
Each module undergoes strict testing procedures to verify stable optical and electrical performance.
The module follows recognized industry standards to ensure consistent manufacturing and product reliability.
It is tested for compatibility with various networking devices to ensure stable and seamless operation.
LINK-PP LS-SM3125-02C passes multiple tests to ensure stable 25G transmission and consistent quality. For further details, refer to the LINK-PP Test Support Center.
Verify wavelength accuracy and output power levels.
Check signal quality via open eye diagrams.
Measure error counts under various data patterns.
Test performance from cold start to hot operation.
LINK-PP LS-SM3125-02C is carefully prepared to ensure safe delivery and product integrity. Orders are handled quickly with reliable global shipping services.
Protect modules from static damage during handling and shipping.
Reduce impact risks during transportation and handling.
Ensure quick processing and timely shipment of orders.
Support worldwide shipping with reliable delivery services.
To operate, simply insert the LS-SM3125-02C SFP28 transceiver into a compatible host, attach the single-mode fiber with duplex LC connectors, and verify link status via DOM. This module supports 25G Ethernet for data center top-of-rack, inter-rack, and edge aggregation, making it a straightforward solution for dense network environments.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal LS-SM3125-02C module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
MSA-PN | 25GBASE-LR | 25GBASE-ER | 25GBASE-LR | 25GBASE-LR | 25GBASE-ER | |
Data Rate (Max) | 25.78Gbps | 25.78Gbps | 25.78Gbps | 25.78Gbps | 25.78Gbps | 10/25.78Gbps |
Wavelength | 1310nm | 1310nm | 1310nm | 1310nm | 1310nm | 850nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 2km | 30km | 10km | 20km | 40km | 100m@OM4/70m@OM3 |
Cable Type | SMF | SMF | SMF | SMF | SMF | MMF |
TX Power | 8 to +3dBm | -8 to +3dBm | -1 to +7dBm | -8.4~2.4dBm | ||
Receiver Sensitivity | -13.3dBm | -19dBm | -14 to +3dBm | -15 to +3dBm | -19dBm | <-10.3dBm |
Operating Temperature | 0°C to +70°C | 0°C to +70°C | -40 to 85°C | -40°C to +85°C | 0°C to +70°C | 0°C to +70°C |
Form Factor | SFP28 | SFP28 | SFP28 | SFP28 | SFP28 | SFP28 |
Transmitter Type | DFB | EML | DFB | DFB | EML | VCSEL |
Receiver Type | PIN | APD | PIN | PIN | APD/TIA | PIN |
Protocols | MSA Compliant, CPRI, eCPRI | MSA Compliant, CPRI, eCPRI | SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR | MSA Compliant, CPRI, eCPRI | MSA Compliant, CPRI, eCPRI | SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
