What is the operating temperature range for the LS-SM3125E-10E transceiver module?

It is built for demanding environments, safely operating within an extended industrial temperature range of -20°C to +85°C.

What makes this module "dual-rate"?

It can dynamically toggle between 10Gbps and 25Gbps data lines. This lets you deploy it in your legacy 10G setup today and effortlessly step up to 25G tomorrow with a simple configuration adjustment.

Does the LS-SM3125E-10E SFP28 module support loopback functions for troubleshooting?

Yes, it supports both optical and electrical loopback functions to simplify system diagnostics and link verification.

What happens if I attempt to transmit over distances exceeding 10km?

Pushing the link past 10km causes optical signal attenuation that will trigger bit errors, packet loss, or a total dropped link. Always stay within the 10km link budget footprint.

What specific laser safety classification does the 1310nm optical transmitter inside this SFP28 assembly fall under?

The module integrates a fully enclosed, eye-safe Class 1 laser engine compliant with international IEC 60825-1 safety regulations.

Under continuous 25Gbps line-rate load testing, what is the typical heat dissipation profile per module inside a crowded 48-port switch?

Every module is optimized to draw under 1.2W, which minimizes localized thermal stress and prevents port-throttling even when the switch cage is fully loaded.

If our fiber link drops to 10G due to an older switch configuration on one end, will the DOM monitoring telemetry still report data accurately?

Yes, the internal diagnostic controller functions independently of the port speed and tracks all critical Tx/Rx power and temperature levels at both 10G and 25G rates.

How does the built-in DDM/DOM monitor laser degradation over years of continuous campus deployment?

The real-time DOM tracks laser bias current fluctuations and Tx/Rx power trends, feeding data directly to your SNMP stack for predictive failure analysis.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 25G SFP28; 183262

Click to open expanded view

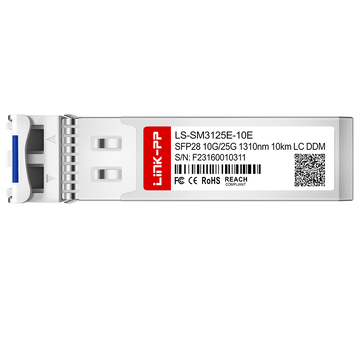

LINK-PP LS-SM3125E-10E 10/25G SFP28 Dual-Rate 1310nm 10km Duplex LC/UPC DOM SMF Optical Transceiver Module

Name: LINK-PP LS-SM3125E-10E 10/25G SFP28 Dual-Rate 1310nm 10km Duplex LC/UPC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 183262
Price: 35.26 USD
Availability: InStock
Rating: 4.9 (33 reviews)

# 183262

Product: LINK-PP LS-SM3125E-10E 10/25G SFP28 Dual-Rate 1310nm 10km Duplex LC/UPC DOM SMF Optical Transceiver Module
SKU: 183262
P/N: LS-SM3125E-10E
Price: $ 41
Stock: 820 in Stock
Sold: 980
Product URL: https://www.l-p.com/products/478243.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

33 Reviews

4 Questions

Request Stock

980 Sold

$ 41

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 41

100

$ 38.95

1000

$ 37.72

3000

$ 36.49

6000

$ 35.26

Manufacture: LINK-PP

P/N: LS-SM3125E-10E

Compatible:: LINK-PP

Compatible P/N:: LS-SM3125-02C | 2km; LS-SM3125-02I | 2km; LS-SM3125-10C | 10km; LS-SM3125-10I | 10km; LS-SM3125E-10C | 10km; LS-SM3125E-10E | 10km; LS-SM3125E-10I | 10km; LS-SM3125-20C | 20km; LS-SM3125-20I | 20km; LS-SM3125-30C | 30km; LS-SM3125-30I | 30km; LS-SM3125-40C | 40km; LS-SM3125-40I | 40km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LS-SM3125E-10E 10/25G SFP28 Specifications

LS-SM3125E-10E is a next-generation 10/25G SFP28 dual-rate optical transceiver module that delivers reliable duplex LC/UPC connectivity over single-mode fiber (SMF), engineered to transmit data seamlessly at a 1310nm wavelength up to a 10km distance with an ultra-efficient maximum power consumption of just 1.2W while incorporating digital diagnostic functions.

LINK-PP Part Number	LS-SM3125E-10E	Vendor Name	LINK-PP
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1310nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-8 to +3dBm	RX Power	-14 to +3dBm
Receiver Sensitivity	＜-13dBm	Receiver Overload	2dBm
Operating Temperature Range	-20 to 85°C	Protocols	SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-SM3125E-10E.pdf

Questions & Answers
Ask a Question

No data

Q: What specific laser safety classification does the 1310nm optical transmitter inside this SFP28 assembly fall under? By V***h on 2026-02-18

A: The module integrates a fully enclosed, eye-safe Class 1 laser engine compliant with international IEC 60825-1 safety regulations. By admin on 2026-02-19
Q: Under continuous 25Gbps line-rate load testing, what is the typical heat dissipation profile per module inside a crowded 48-port switch? By E***n on 2025-10-01

A: Every module is optimized to draw under 1.2W, which minimizes localized thermal stress and prevents port-throttling even when the switch cage is fully loaded. By admin on 2025-10-02
Q: If our fiber link drops to 10G due to an older switch configuration on one end, will the DOM monitoring telemetry still report data accurately? By F***n on 2025-06-22

A: Yes, the internal diagnostic controller functions independently of the port speed and tracks all critical Tx/Rx power and temperature levels at both 10G and 25G rates. By admin on 2025-06-23
Q: How does the built-in DDM/DOM monitor laser degradation over years of continuous campus deployment? By N***y on 2025-04-26

A: The real-time DOM tracks laser bias current fluctuations and Tx/Rx power trends, feeding data directly to your SNMP stack for predictive failure analysis. By admin on 2025-04-27
