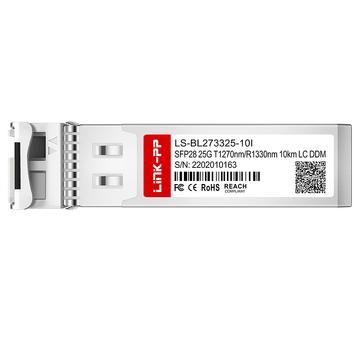

LS-BL273325-10I is an industrial-grade 25G SFP28 BiDi optical transceiver module engineered to drive resilient, single-fiber bidirectional data links up to 10km over 9/125µm SMF, pairing a 1270nm-TX/1330nm-RX wavelength architecture with a tight receiver sensitivity of less than -13dBm to guarantee uncompromised signal integrity across an ultra-wide -40°C to +85°C thermal envelope.
| LINK-PP Part Number | LS-BL273325-10I | Vendor Name | LINK-PP |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 10km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type |
PIN |
| TX Power | -3 to +5dBm | RX Power | -14 to +3dBm |
| Receiver Sensitivity | <-13dBm | Receiver Overload | 2dBm |
| DDM/DOM | Supported | Operating Temperature Range |
-40°C to +85°C |
| Protocols | SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR | Warranty | 5 Years |
LINK-PP LS-BL273325-10I is an industrial-grade 25G SFP28 BiDi optical transceiver module designed for robust single-fiber bidirectional data transmission. It integrates advanced 1270nm-TX/1330nm-RX wavelength architecture and real-time DOM monitoring to ensure optimal network stability. This module offers an ideal combination of extended reach, power efficiency, and hardened thermal endurance.
This module features a transmit power of -3 to +5dBm and supports a wide receiver power range from -14 to +3dBm. These optimized optical power specifications ensure an excellent power budget for stable data links. By maintaining these strict optical levels, the transceiver prevents signal distortion and ensures reliable network communication.
Delivering a rapid 25Gbps data rate, this module satisfies the increasing bandwidth demands of crowded edge networks. It significantly accelerates data throughput to reduce latency in localized processing hubs. This makes it an ideal solution for dense infrastructure requiring swift and efficient traffic handling.
The transceiver utilizes a specialized 1270nm transmit and 1330nm receive wavelength configuration. This BiDi (bidirectional) design allows simultaneous upstream and downstream traffic over one single strand of fiber. As a result, it effectively maximizes existing fiber capacity without the need for deploying extra cables.
Engineered for long-reach applications, this optical module supports data transmission distances up to 10km over 9/125µm single-mode fiber (SMF). It maintains reliable connectivity and low bit error rates across the entire span. This makes it highly suitable for connecting geographically dispersed nodes or regional stations.
Featuring a single-port Simplex LC/UPC connector, the module ensures easy deployment and a secure physical connection. This compact interface design reduces cabling clutter and optimizes patch panel space. It allows operators to streamline physical fiber management while saving deployment costs.
Equipped with Digital Optical Monitoring (DOM) capabilities, the module allows network administrators to track vital parameters instantly. Users can monitor real-time metrics such as temperature, supply voltage, laser bias current, and optical power. This proactive diagnostics feature helps detect potential anomalies and prevents unexpected network downtime.
LINK-PP LS-BL273325-10I 25G SFP28 optical transceiver aligns with top-tier global standards, backed by full ISO 9001, CE, RoHS, and FCC credentials for guaranteed market compliance.
Each LINK-PP transceiver module completes an exhaustive multi-stage validation sequence to eliminate potential field failures before deployment.
These regulatory approvals confirm that the hardware satisfies the most stringent global safety and ecological directives.
The firmware is precisely tailored to guarantee immediate, error-free handshake protocols across multiple vendor switch platforms.
Our meticulous verification framework validates every SFP28 optical transceiver's durability to eliminate transmission flaws, and you can discover our full validation methodology through the LINK-PP Test Support Center.
Measure exact emission wavelengths to ensure precise single-fiber signal separation.
Analyze optical wave shapes to verify high signal-to-noise ratios.
Quantify data integrity to ensure packet-free transmission across full distances.
Validate hardware stability across the entire extreme thermal range.
We utilize secure packaging standards and rapid delivery networks to ensure safe, on-time arrivals worldwide.
Shield delicate electronics from electrostatic discharge during transit.
Absorb mechanical impacts to prevent physical module damage.
Accelerate order handling to ensure rapid warehouse departure.
Ship products via dependable worldwide networks for timely arrivals.

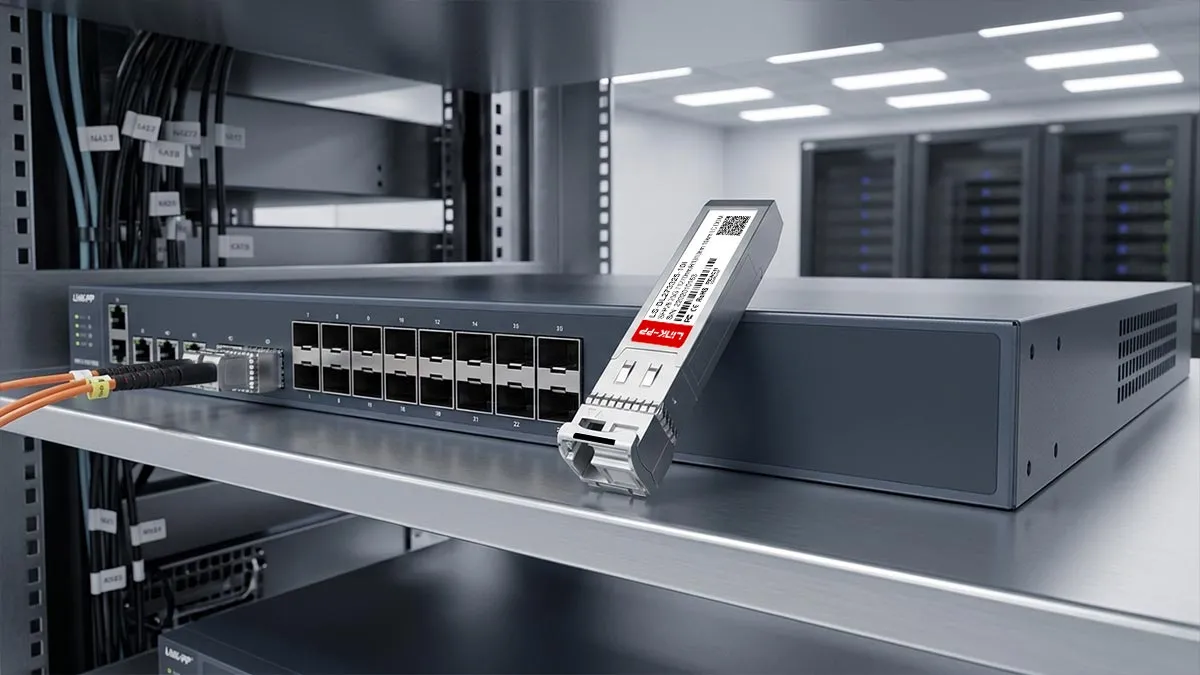

Connect the LS-BL273325-10I 25G SFP28 BiDi transceiver directly into host devices to double bandwidth instantly. Perfect for industrial automation and fiber-constrained telecom links, its bidirectional single-fiber operation eliminates cable clutter while maintaining strong, reliable data transmission across harsh network environments.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal LS-BL273325-10I module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 25.78Gbps | 25.78Gbps | 25.78Gbps | 25.78Gbps | 25.78Gbps | 25.78Gbps |
Wavelength | 1270nm-TX/1330nm-RX | 1270nm-TX/1330nm-RX | 1309nm-TX/1295nm-RX | 1310nm-TX/1270nm-RX | 1270nm-TX/1330nm-RX | 1270nm-TX/1330nm-RX |
Connector | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC |
Cable Distance (Max) | 10km | 20km | 60km | 40km | 10km | 10km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -3 to +5dBm | -1 to +7dBm | 0 to +6dBm | -1 to +7dBm | -3 to +5dBm | -3 to +5dBm |
Receiver Sensitivity | -14 to +3dBm | -15 to +3dBm | -21 to -4dBm | <-19dBm | -14 to +3dBm | -14 to +3dBm |
Operating Temperature | -40°C to +85°C | -40°C to +85°C | 0 to 70°C | -40 to 85°C | -20°C to +85°C | 0°C to +70°C |
Form Factor | SFP28 | SFP28 | SFP28 | SFP28 | SFP28 | SFP28 |
Transmitter Type | DFB | DFB | EML | DFB | DFB | DFB |
Receiver Type | PIN | PIN | APD | APD | PIN | PIN |
Receiver Overload | 2dBm | 2dBm | -7dBm | 2dBm | 2dBm | |
DDM/DOM | Supported | Supported | ||||
Protocols | SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR | eCPRI, SFF-8472, SFF-8432, SFF-8431 | MSA Compliant, CPRI, eCPRI | MSA Compliant, CPRI, eCPRI | MSA Compliant, CPRI, eCPRI | MSA Compliant, CPRI, eCPRI |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: What is the exact internal power consumption of this industrial-grade module under maximum thermal load at +85°C? By J***r on 2026-01-27
A: The module is highly efficient and maintains a maximum power consumption of less than 1.5W even at peak operating temperatures. This helps minimize heat build-up inside dense outdoor cabinets. By admin on 2026-01-28
Q: Is the LS-BL273325-10I transceiver truly rated for industrial temperature ranges in an unheated hardened outdoor enclosure 25G network? By H***e on 2025-10-30
A: Yes, this is an authentic industrial grade 25G BiDi optical module built with hardened components to operate flawlessly between -40°C and +85°C. By admin on 2025-10-31
Q: We need to comply with local European telecom regulations; do these 25G SFP28 transceivers have RoHS and CE certificates? By K***s on 2025-08-14
A: Yes, all our optical transceivers carry full CE, FCC, and RoHS certifications. We can provide compliance documentation via email for your records. By admin on 2025-08-15
Q: What type of optical fiber patch cord do I need to connect this specific 25GBASE-U 10km SFP28 module? By I***n on 2025-06-19
A: You will need a Simplex OS2 Single-Mode Fiber (SMF) patch cable with an LC/UPC polished connector on both ends. By admin on 2025-06-20
Q: Does this specific Simplex LC 25G BiDi module feature an internal latch mechanism to withstand heavy vibrations in wayside railway enclosures? By L***s on 2025-03-29
A: Yes, the physical housing is built to standard SFP28 MSA physical specifications and features a secure, industrial-grade bail latch. It ensures a snug fit that resists physical vibrations and impact. By admin on 2025-03-30
