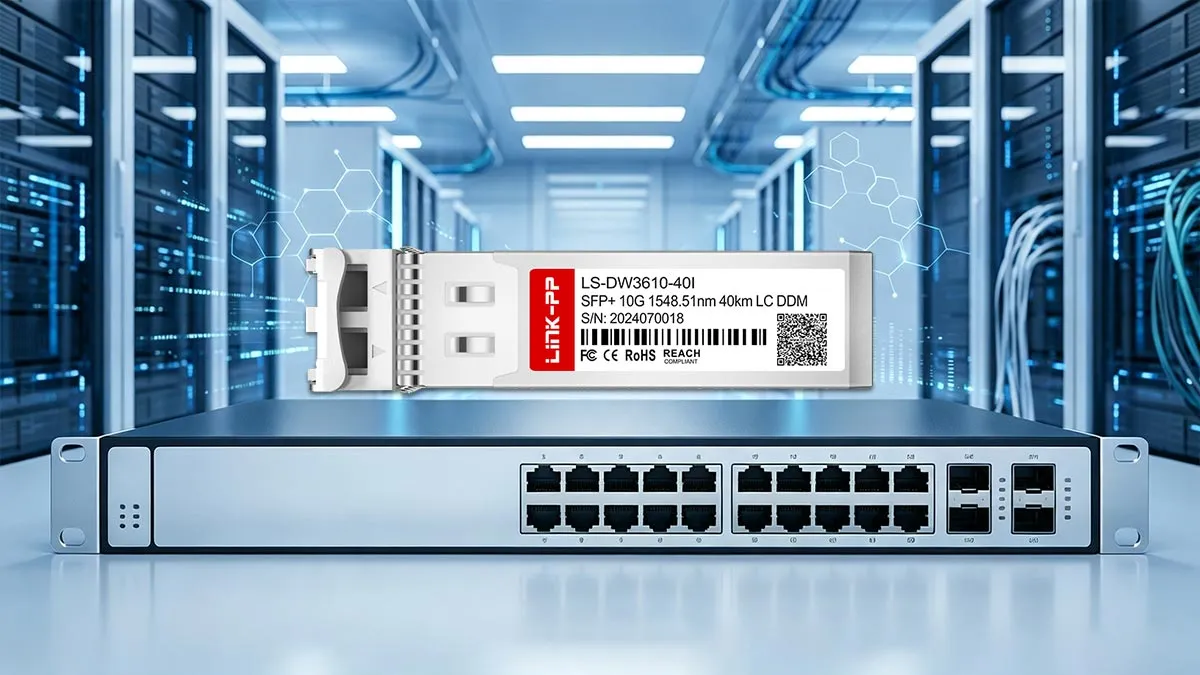

Cisco DWDM-SFP10G-48.51-I Compatible LINK-PP C36 10G SFP+ DWDM 1548.51nm 40km Duplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)

Name: Cisco DWDM-SFP10G-48.51-I Compatible LINK-PP C36 10G SFP+ DWDM 1548.51nm 40km Duplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 222559
Price: 257.14 USD
Availability: InStock
Rating: 5 (42 reviews)

# 222559

Product: Cisco DWDM-SFP10G-48.51-I Compatible LINK-PP C36 10G SFP+ DWDM 1548.51nm 40km Duplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)
SKU: 222559
P/N: LS-DW3610-40I
Price: $ 299
Stock: 454 in Stock
Sold: 880
Product URL: https://www.l-p.com/products/488811.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

42 Reviews

3 Questions

Request Stock

880 Sold

$ 299

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 299

100

$ 284.05

1000

$ 275.08

3000

$ 266.11

6000

$ 257.14

Manufacture: LINK-PP

P/N: LS-DW3610-40I

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; Dell; Extreme; FS; Generic; H3C; HW; Juniper; MRV; Netgear

Wavelength:: C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

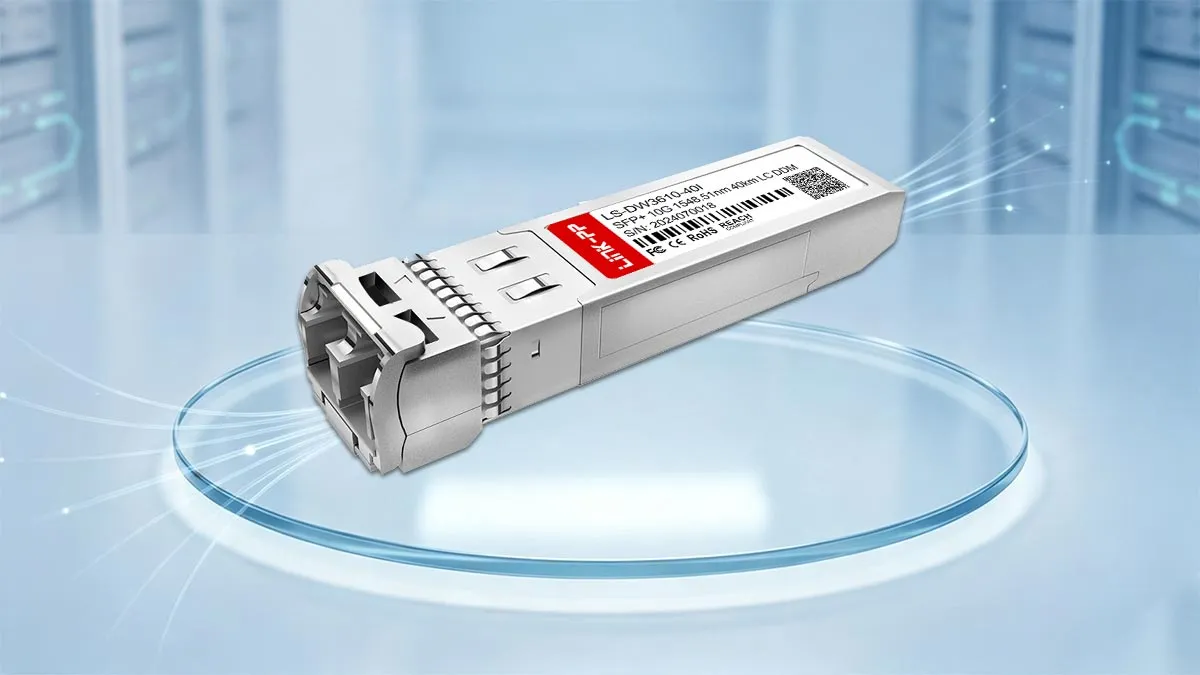

Cisco DWDM-SFP10G-48.51-I Compatible LINK-PP C36 10G SFP+ Specifications

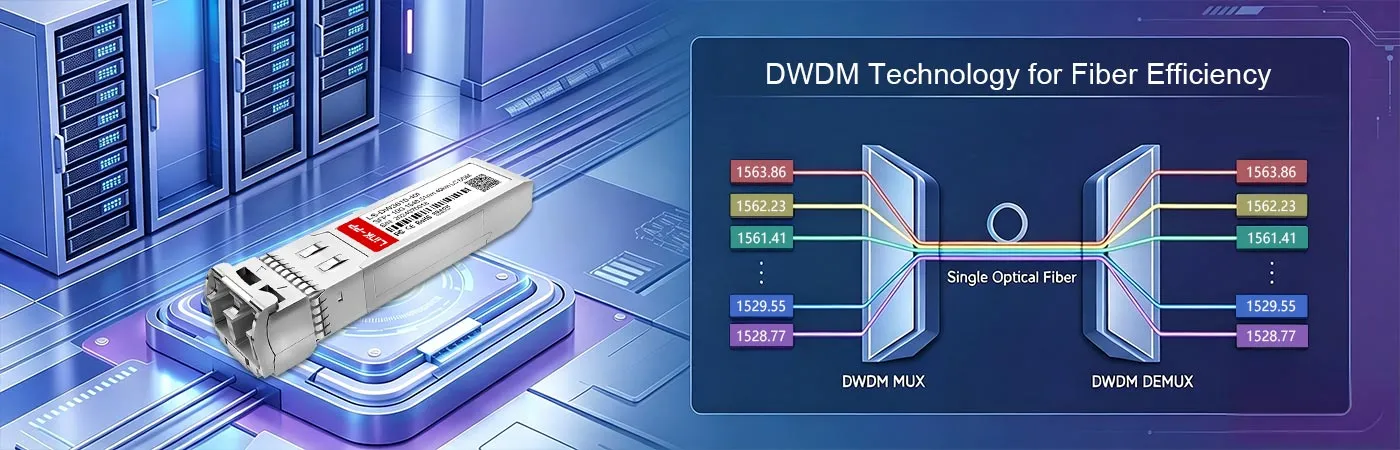

DWDM-SFP10G-48.51-I defines a specialized 10G SFP+ DWDM optical module tailored for 40km single-mode fiber architectures, leveraging a 1548.51nm wavelength (Channel C36) alongside comprehensive DOM support in compliance with the SFF-8472 protocol. Engineeered with a high-performance EML transmitter and PIN receiver, this industrial-grade (-40°C to 85°C) transceiver delivers reliable, low-latency 10Gbps data transmission over long-distance dense wavelength division multiplexing links.

Cisco Part Number	DWDM-SFP10G-48.51-I	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps

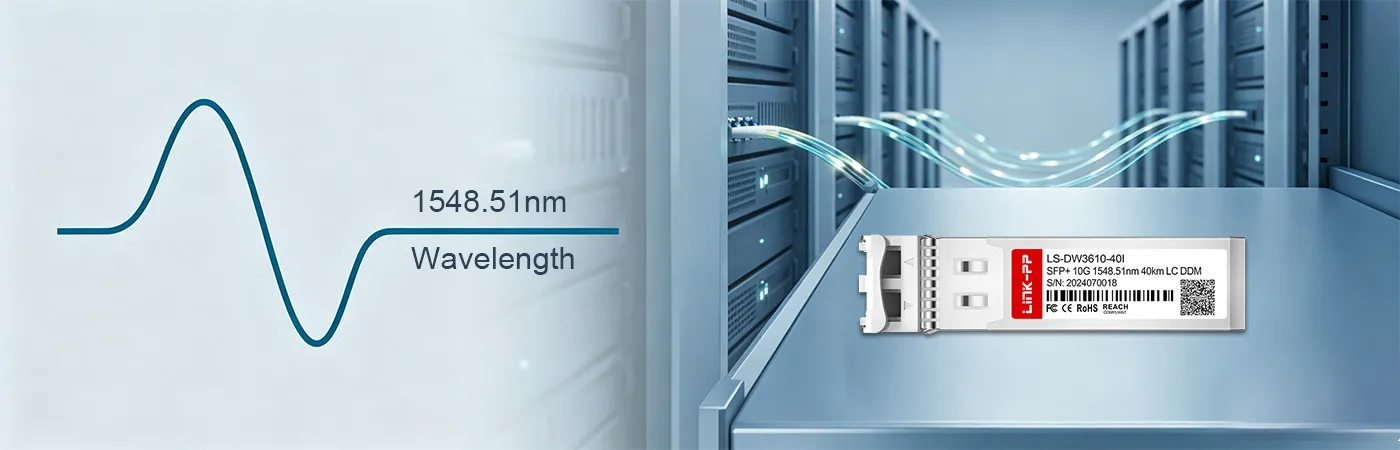

Wavelength	1548.51nm	Max Cable Distance	40km

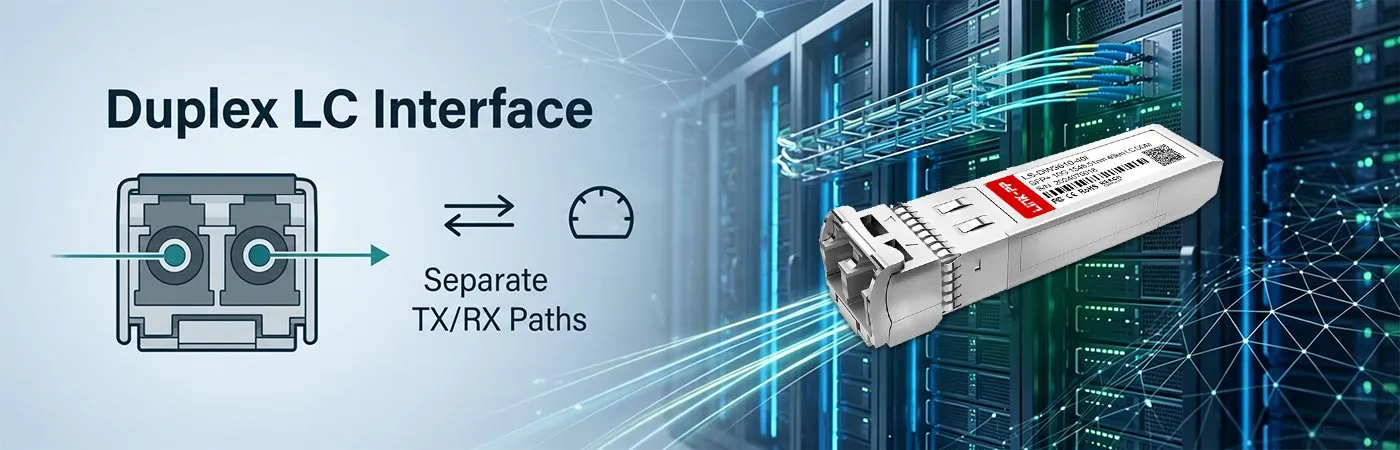

Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +2dBm	RX Power	-16 to -1dBm

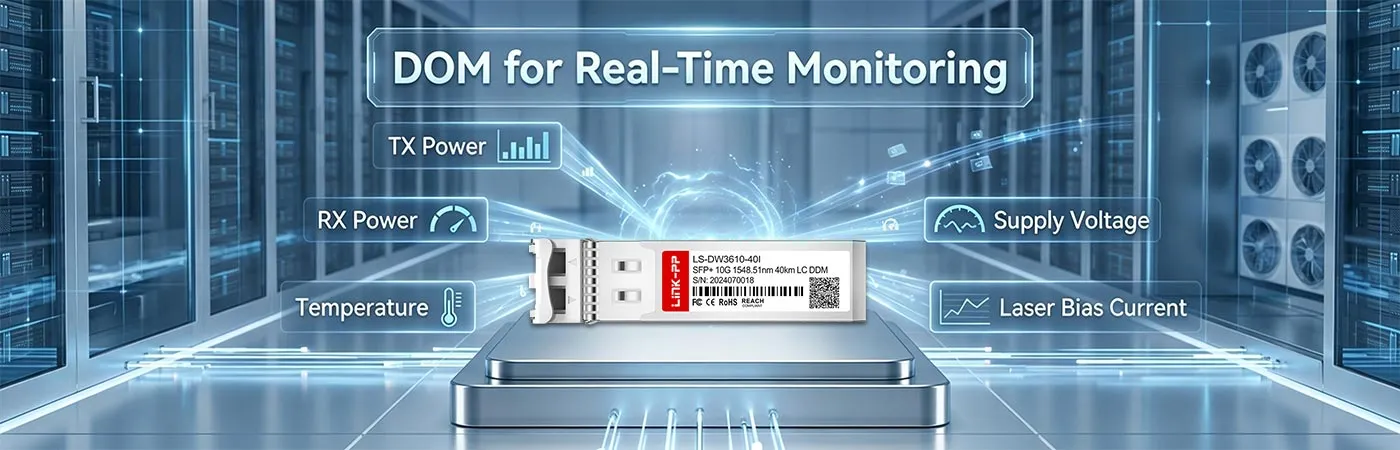

Receiver Sensitivity	<-15.5dBm	DOM Support	Yes
Operating Temperature Range	-40 to 85°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-DWxx10-40I.pdf

Questions & Answers
Ask a Question

No data

Q: What type of optical fiber patch cord do I need to connect this transceiver? By B***w on 2026-02-07

A: This module requires a standard single-mode fiber (SMF) patch cable with Duplex LC/UPC connectors. By admin on 2026-02-08
Q: Is this DWDM transceiver compliant with standard SFF-8472 digital diagnostic monitoring standards? By C***r on 2025-08-21

A: Yes, it is fully compliant with the SFF-8472 MSA standard, ensuring universal compatibility for reporting all standard DOM metrics. By admin on 2025-08-22
Q: Is this 10G SFP+ module suitable for deployment in unconditioned outdoor cabinets? By A***d on 2025-03-13

A: Yes, this is an industrial-grade module designed specifically to operate reliably within a wide temperature range of -40°C to +85°C. By admin on 2025-03-14
