We are extending a 10G link between two factory buildings. Can this module work with our existing single-mode fiber?

Yes, the module is designed for duplex single-mode fiber links and uses a duplex LC connection. Please check that your DWDM channel plan uses C18 1563.04nm.

We need optics for an LTE backhaul project in remote locations. Is this a suitable option?

Yes, the LS-DW1810-40I DWDM module is suitable for LTE systems and other 10G optical links. Its DWDM wavelength helps carry more services over limited fiber resources.

We are installing these in outdoor RRU cabinets on LTE cell towers in Northern Canada. Can this optical module handle sub-zero winter temperatures?

Yes, perfectly. The "I" suffix in LS-DW1810-40I indicates an industrial-grade operating case temperature range of -40°C to +85°C. It is built specifically to operate reliably in unconditioned outdoor enclosures during extreme winters.

We plan to plug this module into a 100GHz DWDM Mux/Demux filter. Is Channel 18 guaranteed to be stable without wavelength drift?

Yes. This LS-DW1810-40I module uses a high-precision cooled EML laser designed specifically for 100GHz ITU C-Band grid stability. It maintains its tight 1563.04nm wavelength tolerance even under fluctuating operational loads.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G CWDM/DWDM SFP+; 222903

Click to open expanded view

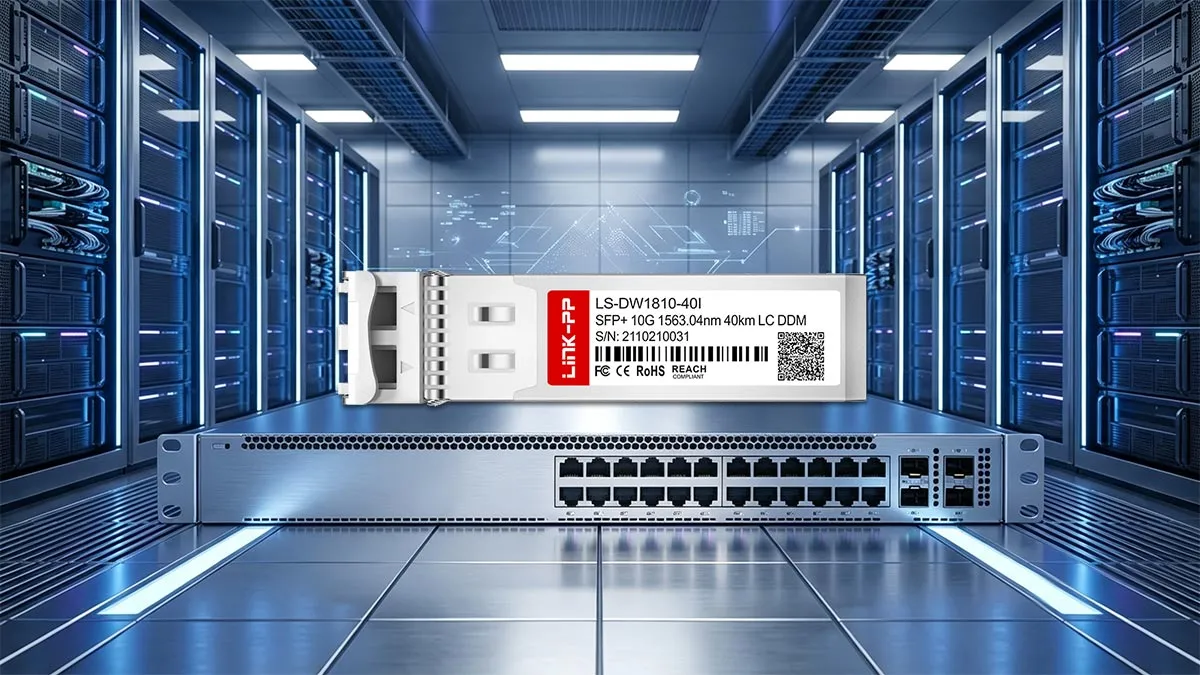

Cisco DWDM-SFP10G-63.05-I Compatible LINK-PP C18 10G SFP+ DWDM 1563.04nm 40km Duplex LC DDM SMF Optical Transceiver Module (Industrial)

Name: Cisco DWDM-SFP10G-63.05-I Compatible LINK-PP C18 10G SFP+ DWDM 1563.04nm 40km Duplex LC DDM SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 222903
Price: 257.14 USD
Availability: InStock
Rating: 4.9 (25 reviews)

# 222903

Product: Cisco DWDM-SFP10G-63.05-I Compatible LINK-PP C18 10G SFP+ DWDM 1563.04nm 40km Duplex LC DDM SMF Optical Transceiver Module (Industrial)
SKU: 222903
P/N: LS-DW1810-40I
Price: $ 299
Stock: 207 in Stock
Sold: 331
Product URL: https://www.l-p.com/products/495249.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

25 Reviews

4 Questions

Request Stock

331 Sold

$ 299

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 299

100

$ 284.05

1000

$ 275.08

3000

$ 266.11

6000

$ 257.14

Manufacture: LINK-PP

P/N: LS-DW1810-40I

Compatible:: Cisco; LINK-PP; Arista; Brocade; Ciena; Dell; Extreme; FS; Generic; H3C; Juniper; MRV; Netgear

Wavelength:: C17; C18; C19; C20; C21; C22; C23; C24; C25; C26; C27; C28; C29; C30; C31; C32; C33; C34; C35; C36; C37; C38; C39; C40

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

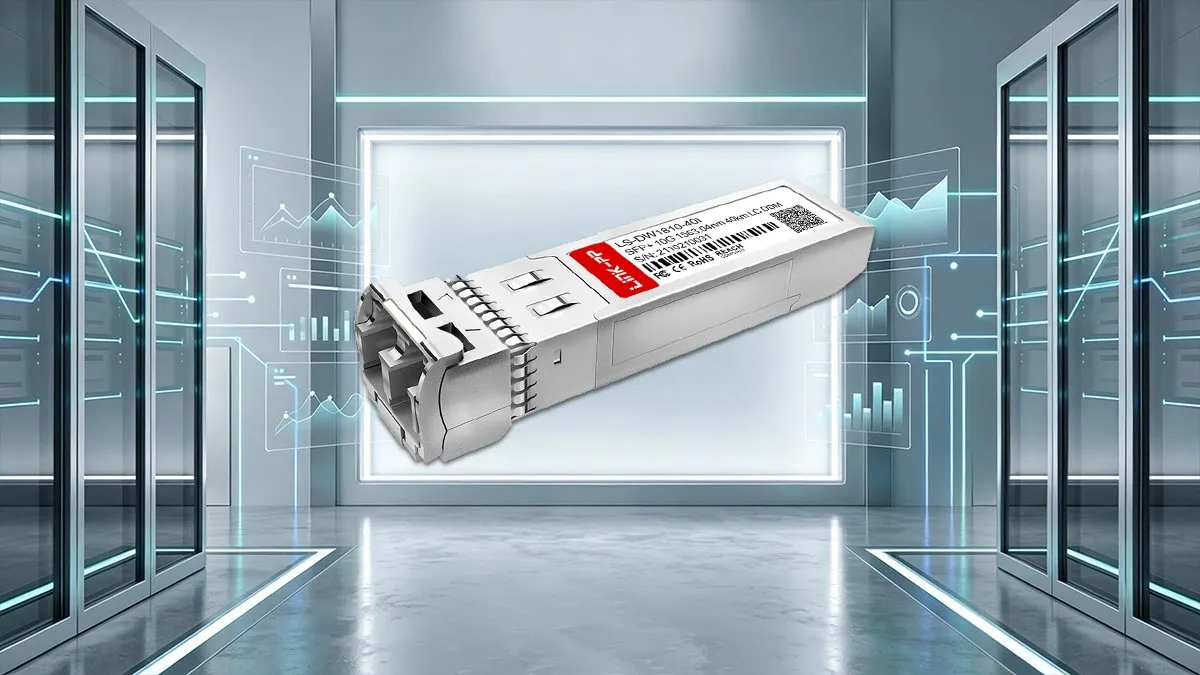

Cisco DWDM-SFP10G-63.05-I Compatible LINK-PP C18 10G SFP+ Specifications

DWDM-SFP10G-63.05-I integrates an advanced cooled EML laser with a PIN photodiode to stream 10G duplex LC optical signals over single-mode fiber up to 40km, operating precisely on the 1563.04nm wavelength with full real-time Digital Diagnostic Monitoring integration.

Cisco Part Number	DWDM-SFP10G-63.05-I	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1563.04nm	Max Cable Distance	40km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
TX Power	-1 to +2dBm	RX Power	-16 to -1dBm
Receiver Sensitivity	-15.5dBm	DDM Support	Yes
Operating Temperature Range	-40 to 85°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-DWxx10-40I.pdf

Questions & Answers
Ask a Question

No data

Q: We are extending a 10G link between two factory buildings. Can this module work with our existing single-mode fiber? By F***n on 2026-03-29

A: Yes, the module is designed for duplex single-mode fiber links and uses a duplex LC connection. Please check that your DWDM channel plan uses C18 1563.04nm. By admin on 2026-03-30
Q: We need optics for an LTE backhaul project in remote locations. Is this a suitable option? By E***r on 2026-02-10

A: Yes, the LS-DW1810-40I DWDM module is suitable for LTE systems and other 10G optical links. Its DWDM wavelength helps carry more services over limited fiber resources. By admin on 2026-02-11
Q: We are installing these in outdoor RRU cabinets on LTE cell towers in Northern Canada. Can this optical module handle sub-zero winter temperatures? By S***d on 2025-09-08

A: Yes, perfectly. The "I" suffix in LS-DW1810-40I indicates an industrial-grade operating case temperature range of -40°C to +85°C. It is built specifically to operate reliably in unconditioned outdoor enclosures during extreme winters. By admin on 2025-09-09
Q: We plan to plug this module into a 100GHz DWDM Mux/Demux filter. Is Channel 18 guaranteed to be stable without wavelength drift? By E***s on 2025-07-27

A: Yes. This LS-DW1810-40I module uses a high-precision cooled EML laser designed specifically for 100GHz ITU C-Band grid stability. It maintains its tight 1563.04nm wavelength tolerance even under fluctuating operational loads. By admin on 2025-07-28
