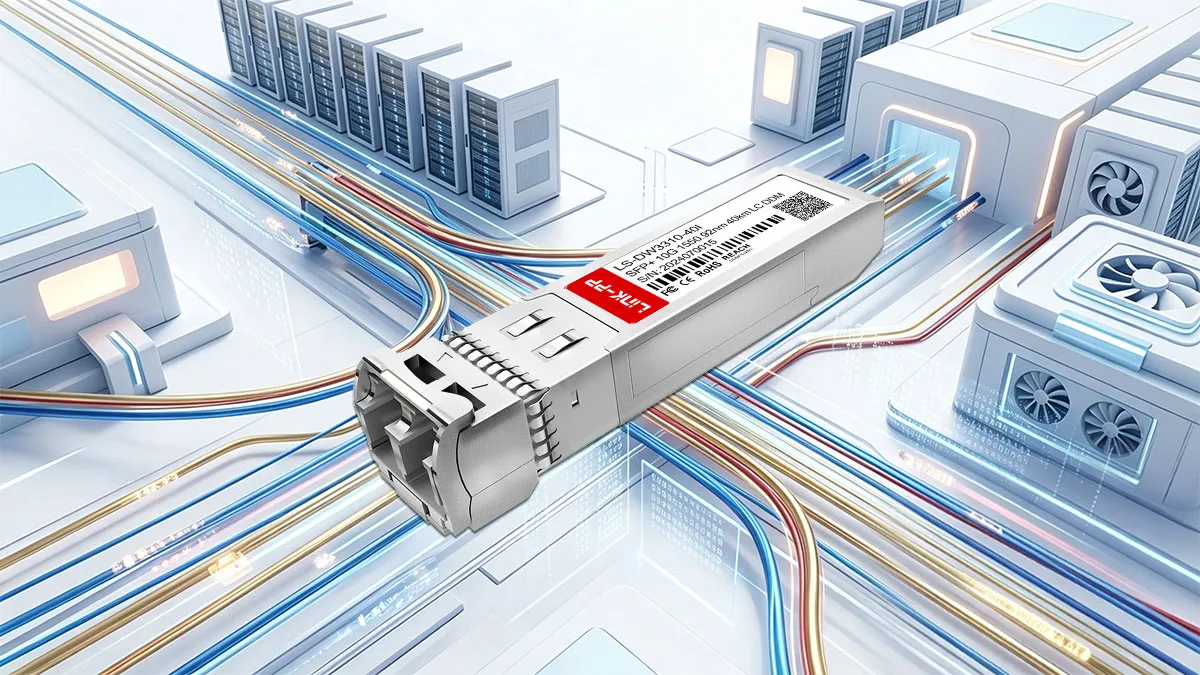

DWDM-SFP10G-50.92-I is an industrial-grade 10G SFP+ DWDM transceiver operating at a 1550.92nm wavelength (C33) that delivers reliable duplex LC single-mode fiber links up to 40km with integrated real-time Digital Optical Monitoring (DOM) across a broad -40°C to +85°C thermal range.
| Cisco Part Number | DWDM-SFP10G-50.92-I | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1550.92nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1 to +2dBm | RX Power | -16 to -1dBm |
| Receiver Sensitivity | -15.5dBm | DOM Support | Yes |
| Operating Temperature Range | -40 to 85°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |

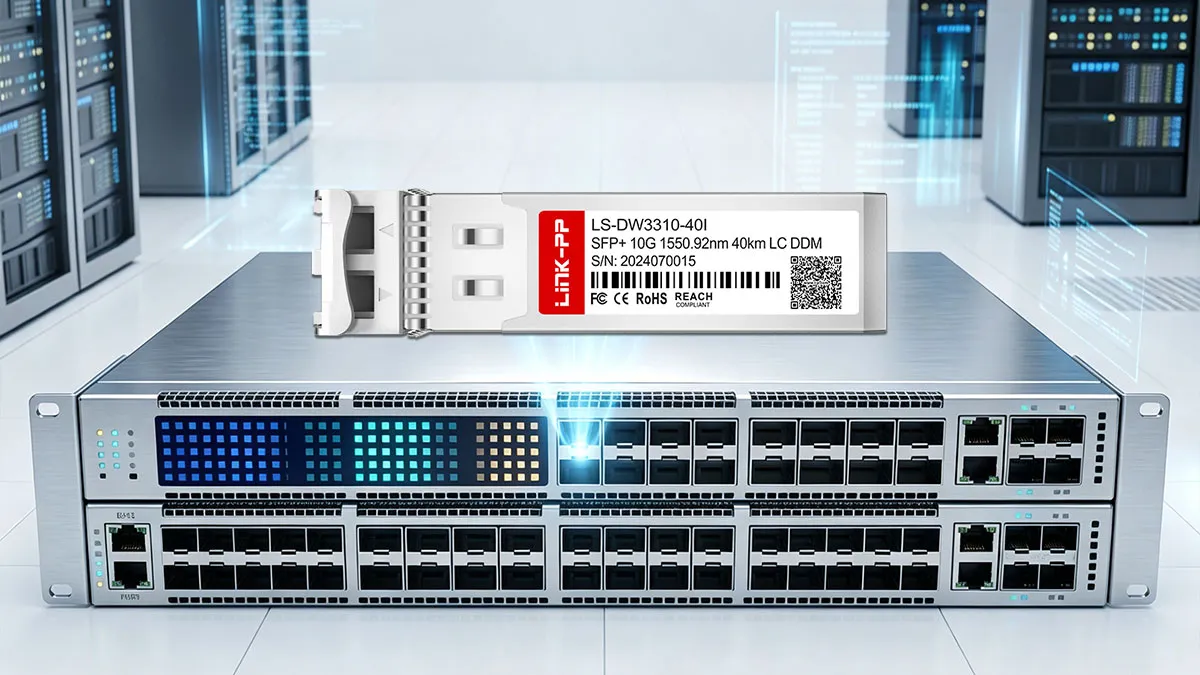

Cisco DWDM-SFP10G-50.92-I Compatible LINK-PP combines industrial-grade durability (-40°C to +85°C) with 10G DWDM optics on the 1550.92nm C-band channel to reach 40km over single-mode fiber. It incorporates duplex LC optics and internal diagnostic telemetry within a compact hot-swappable frame. This architecture enables efficient, high-density fiber expansion across rugged infrastructure without laying new cable routes.
Built on an industry-standard hot-pluggable form factor, this transceiver supports live system maintenance and rapid field upgrades. The optical engine utilizes a cooled Electro-absorption Modulated Laser (EML) paired with a high-sensitivity PIN receiver for clean signal integrity over long spans. Its hardened internal components guarantee continuous uptime in harsh outdoor environments.

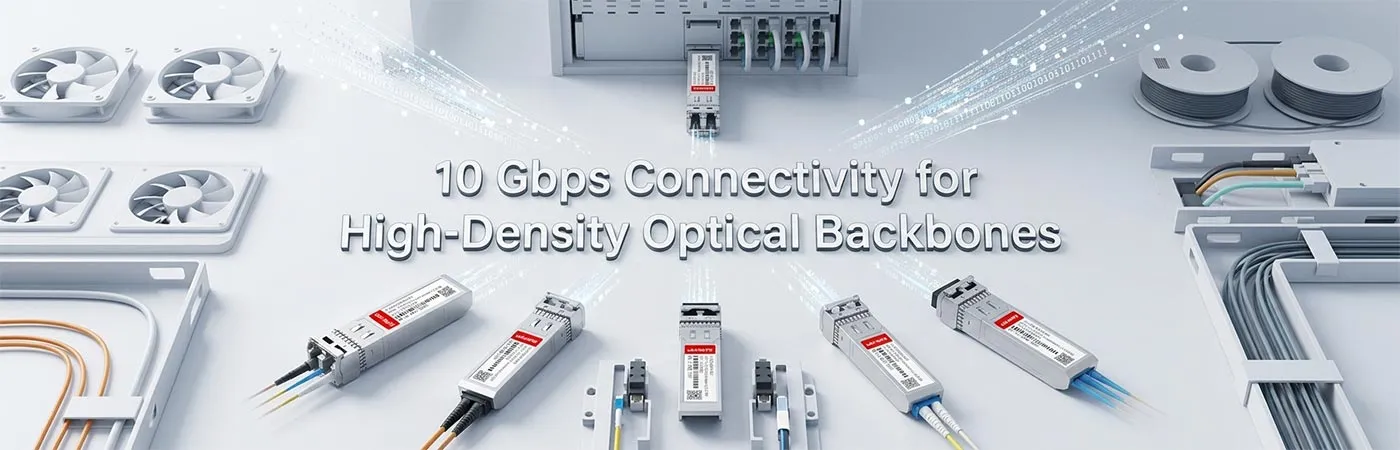

Delivering full 10G line rate capability, this module satisfies heavy throughput requirements across core switching matrices. It excels in metro aggregation nodes, utility communication networks, and dense campus interconnections. The high bandwidth density allows operators to scale network capacity smoothly without increasing rack footprints.

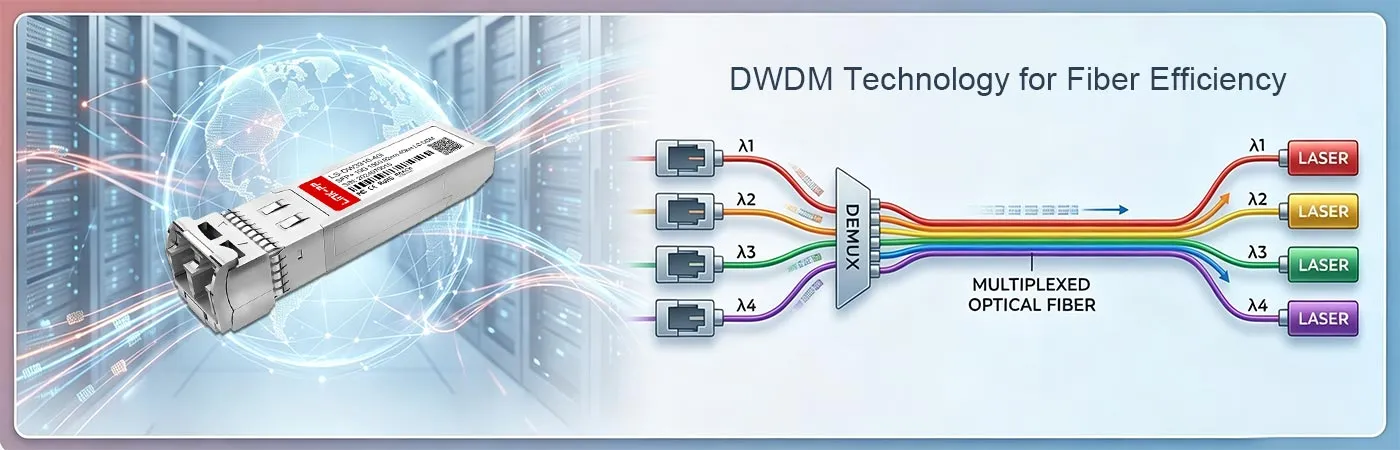

Dense Wavelength Division Multiplexing enables dozens of independent data streams to travel simultaneously over a single strand of fiber. By multiplexing channels on tightly spaced ITU-T grid frequencies, operators can scale total system bandwidth by multiples. This significantly maximizes existing dark fiber assets while cutting dark-fiber leasing and deployment overhead.

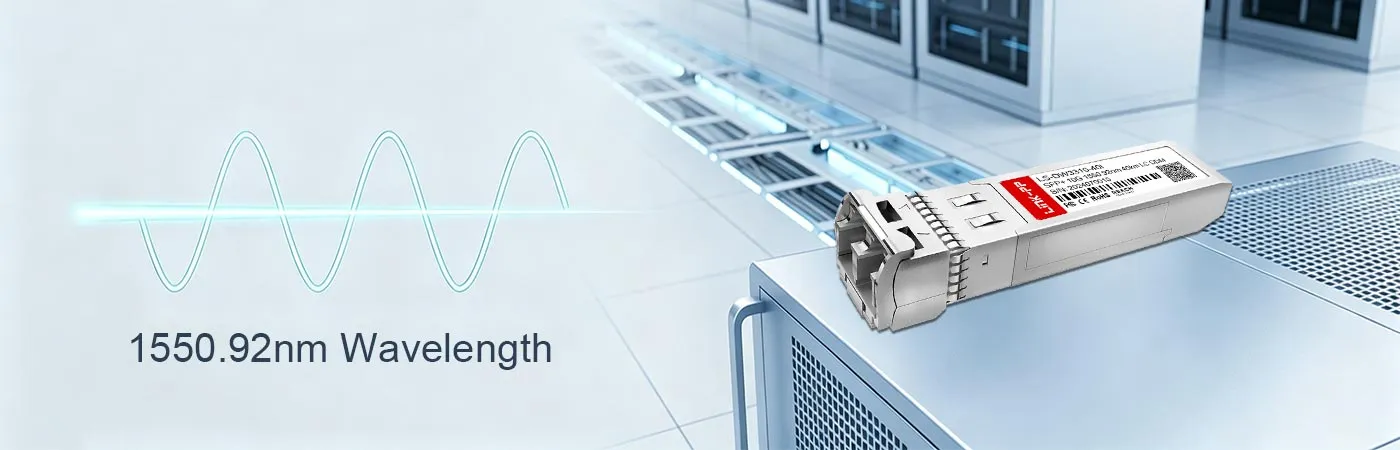

Fixed precisely on the 1550.92nm ITU grid channel (C33), this optical module operates within a lower attenuation window of single-mode fiber. Operating at this specific optical band minimizes signal degradation and dispersion penalties over mid-to-long reaches. It provides precise channel alignment necessary for seamless integration into active optical multiplexers.
Designed with a strong optical power margin, this module establishes direct 40km point-to-point connections over single-mode fiber. It eliminates the need for intermediate optical amplifiers or signal regenerators in suburban and regional spans. This extended reach simplifies link architecture while reducing active equipment points of failure.

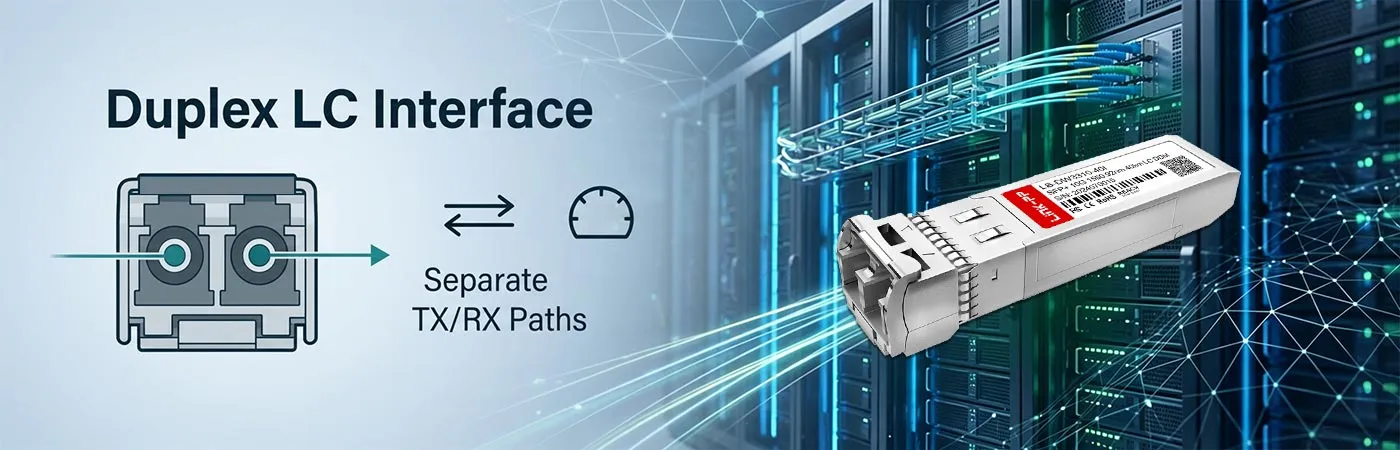

Featuring a standardized duplex LC connector, the module couples smoothly with industry-standard fiber patch cords and patch panels. The dual-LC mechanical latching mechanism ensures a secure physical link and low insertion loss. Its compact interface geometry is optimized for ultra-dense switch chassis where panel space is at a premium.

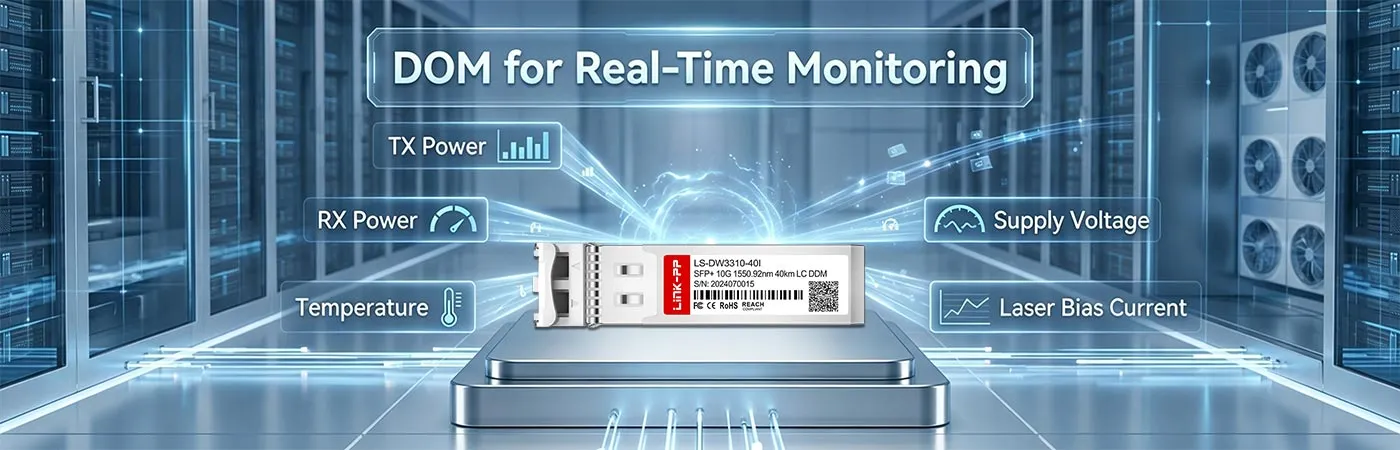

The built-in Digital Optical Monitoring capability provides real-time telemetry into critical physical-layer metrics. Network operators can remotely evaluate optical transceiver temperature, laser bias current, transmit output power, optical receive power, and internal supply voltage. These dynamic diagnostics enable early fault detection and streamline proactive preventive maintenance.
Cisco DWDM-SFP10G-50.92-I Compatible LINK-PP module is fully certified under ISO 9001, CE, RoHS, and FCC standards to ensure international environmental compliance, electrical safety, and superior manufacturing quality.
Every module undergoes thorough multi-stage factory inspections to ensure long-term operational stability.
Official global compliance approvals verify our adherence to strict environmental sustainability, electromagnetic safety, and hardware manufacturing criteria.
Extensive interoperability testing ensures seamless plug-and-play communication across major multi-vendor switch chassis and router platforms without port error alerts.
Every SFP+ optical module undergoes strict operational verification to ensure zero-loss link stability. Discover our complete validation methodology at the LINK-PP Test Support Center.
Verify precise wavelength accuracy and central frequency stability across channels.
Analyze signal transmitter clarity and evaluate optical wave distortion margins.
Confirm zero packet loss and line-rate signal integrity performance.
Validate operational reliability under extreme thermal conditions.
We deliver every optical module with secure packaging and reliable international logistics. Experience fast global shipping for urgent deployments.
Protect sensitive optical circuits against electrostatic discharge during transit.
Shield optical components from drop impacts and rough handling.
Prepare and ship orders quickly to minimize delivery waiting times.
Deliver orders safely to worldwide destinations via trusted international carriers.
Designed for quick hot-swappable installation, Cisco DWDM-SFP10G-50.92-I Compatible LINK-PP module integrates seamlessly into switches via standard LC patch cords. It efficiently expands bandwidth across metro networks, enterprise optical backbones, and harsh industrial automation setups requiring reliable 40km 10G DWDM transmission over single-mode fiber.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal DWDM-SFP10G-50.92-I module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() LS-DW6110-A0C
| ![]() LS-DW6010-A0C
| ![]() LS-DW5910-A0C
| ![]() LS-DW5810-A0C
| ![]() LS-DW5710-A0C
|
|---|
Compatible | Cisco | Cisco | Cisco | Cisco | Cisco | Cisco |
Data Rate (Max) | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps |
Wavelength | 1550.92nm | 1528.77nm | 1529.55nm | 1530.33nm | 1531.12nm | 1531.89nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 40km | 100km | 100km | 100km | 100km | 100km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -1 to +2dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm | -1 to +5dBm |
Receiver Sensitivity | -15.5dBm | -23dBm | -23dBm | -23dBm | -23dBm | -23dBm |
Operating Temperature | -40 to 85°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Temperature | Industrial | Commercial | Commercial | Commercial | Commercial | Commercial |
Form Factor | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ |
Transmitter Type | EML | EML | EML | EML | EML | EML |
Receiver Type | PIN | APD | APD | APD | APD | APD |
DOM Support | Yes | |||||
Protocols | SFP+ MSA Compliant, CPRI, eCPRI | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant | SFP+ MSA Compliant |
