belfuse 0833-2x4r-56-f compatible lpj47498cnl rj45 2x4 port modular jacks with poe 100 base-t integrated magnetics without led
Click to open expanded view

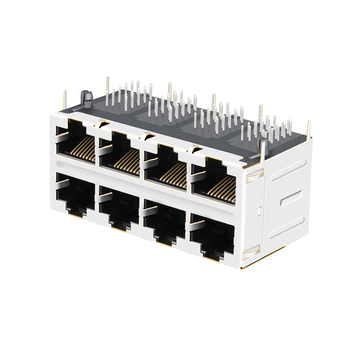

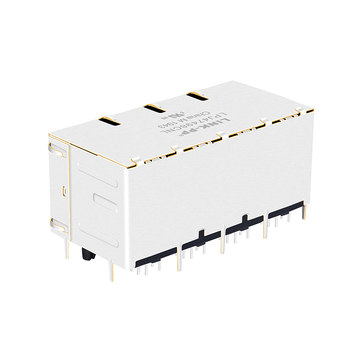

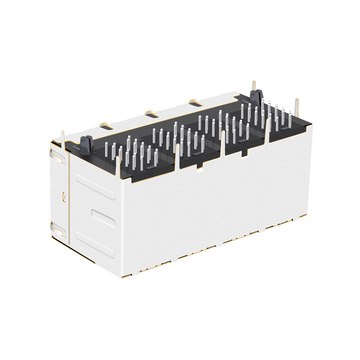

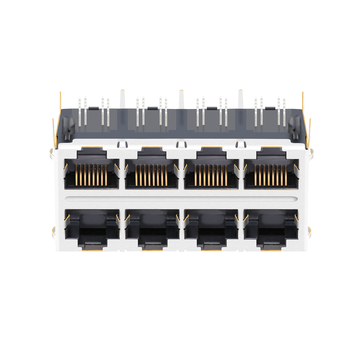

Belfuse 0833-2X4R-56-F Compatible LPJ47498CNL RJ45 2X4 Port Modular Jacks With PoE 100 Base-T Integrated Magnetics Without Led

Product summary

Product
Belfuse 0833-2X4R-56-F Compatible LPJ47498CNL RJ45 2X4 Port Modular Jacks With PoE 100 Base-T Integrated Magnetics Without Led
SKU
173098
P/N
LPJ47498CNL
Price
$ 25.91
Stock
2060 in Stock
Sold
11.3K
Unit price $ 25.91
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ47498CNLSKU: 173098

Compatible with Belfuse 0833-2X4R-56-FDatasheetAll downloads

Compatible P/N:
0833-2X4R-56-F
Volume pricing Online tiers · larger qty or custom price on request
$ 25.910
1–99 pcs
$ 21.501
100–599 pcs
$ 18.393
600–1,199 pcs
$ 16.320
1,200–5,999 pcs
$ 14.507
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2060 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 12
Total Price:
$ 25.91
Packaging Details
12 pcs
216 pcs
Tray
37×30×30 cm
0.059 kg
12.7 kg

Belfuse 0833-2X4R-56-F Compatible LPJ47498CNL 2x4 Port PoE RJ45 Modular Jacks with 10/100 Base-T Integrated Magnetics, Without LED,Tab Up,RoHS

LINK-PP Part Number:
LPJ47498CNL Belfuse Part Number
0833-2X4R-56-F
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
2x4 Port
Speed
10/100 Base-T
Latch
BothCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.984/25.00Package Length (Inches/mm)

1.114/28.30

Package Width (Inches/mm)
2.326/59.09
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ47498CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Watch the combination rather than the ambient alone. Eight powered links put their losses into one shell, and the inside of a sealed box can sit well above room temperature. Probe the metal after a long soak with all ports delivering power, and if the reading climbs, add copper under the body or move air across it. by LINK-PP Technical Support
  • A:
    They will hold it, but they should not be the only thing resisting a sideways pull. Use the retaining posts and, where the board allows, a screw through the body flange, and keep the tails' heel fillets generous. A wide body that is supported only at its tails will rock slightly with every plug and crack a joint at the far end. by LINK-PP Technical Support
  • A:
    Two options. Put a light pipe array over host emitters sitting behind the body, or drive a legend from the switch and let the operator read port state in software. Pipes give the familiar look but cost board height and need their exits fixed before the bezel is punched; a software legend is free but only works where somebody is looking at a screen. by LINK-PP Technical Support
  • A:
    The taps of the transmit and receive windings are brought out for exactly this, and on a ten hundred part the supply rides two pairs, so the DC passes through the centre tap of each transformer. Take the current rating from the datasheet rather than assuming, keep the tap traces wide, and remember that a powered link adds heat inside the shell. by LINK-PP Technical Support

Customer Reviews

  • 5

    77 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (77)
No data
E***t
Verified Purchase
5.0
2026-11-14
Two rows of four. The crimp held up on every contact.
V***n
Verified Purchase
5.0
2025-10-14
No lamps on this block, which suits a hub behind a locked door. No surprises on the colour order. :D
M***y
Verified Purchase
4.0
2025-04-21
One block arrived with a dented shroud, but all eight mouths lined up and every pair landed. No drama unpacking it on the line.
H***y
Verified Purchase
5.0
2024-12-26
The shield tabs bond at each cutout. It matched the sheet on every dimension.
B***m
Verified Purchase
5.0
2023-12-20
PoE on every mouth and no lamps. The lamp spacing matched the sheet.
