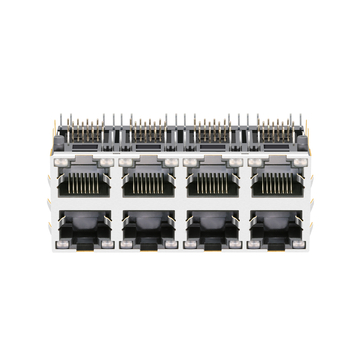

LPJG47047A4NL 100 1000 base-t 2x4 port poe+ gigabit rj45 magjack yellow&green yellow&green led

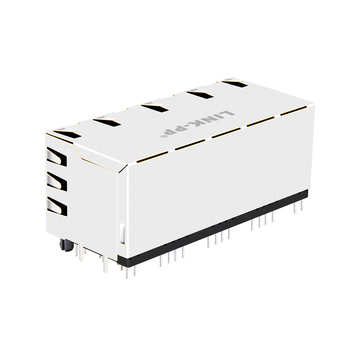

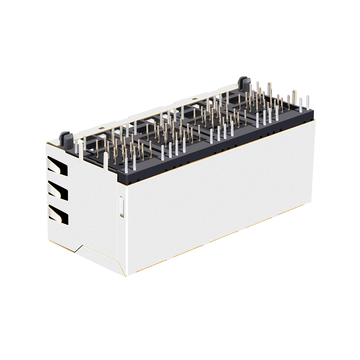

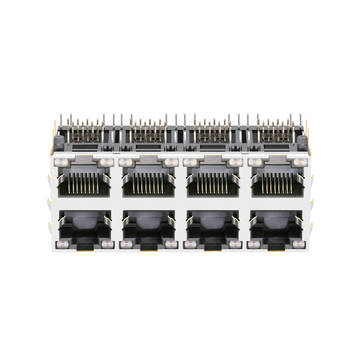

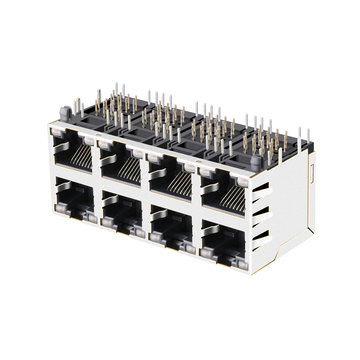

LPJG47047A4NL 100/1000 Base-T 2x4 Port PoE+ Gigabit RJ45 Magjack Yellow&Green/Yellow&Green LED

Product summary

Product
LPJG47047A4NL 100/1000 Base-T 2x4 Port PoE+ Gigabit RJ45 Magjack Yellow&Green/Yellow&Green LED
SKU
194232
P/N
LPJG47047A4NL
Price
$ 36.80
Stock
100 in Stock
Sold
1.9K
Unit price $ 36.80
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG47047A4NLSKU: 194232

LINK-PP original3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJG47047A4NL
Volume pricing Online tiers · larger qty or custom price on request
$ 36.800
1–99 pcs
$ 30.544
100–599 pcs
$ 26.128
600–1,199 pcs
$ 23.184
1,200–5,999 pcs
$ 20.608
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 36.80

LINK-PP LPJG47047A4NL 100/1000 Base-T Integrated Magnetics RJ45 Jack for Ethernet Control and Monitoring System (2x4 Port,Yellow&Green/Yellow&Green Leds)

The LPJG47047A4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Server.

LINK-PP Part Number LPJG47047A4NL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(PoE+)
Number of Ports 2x4 Port Speed 10/100/1000 Base-T
Latch Both Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Yellow&Green/Yellow&Green

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 1.015/25.79 Package Length (Inches/mm)

1.517/38.53

Package Width (Inches/mm) 2.330/59.18 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJG47047A4NL.zip
3D Model LPJG47047A4NL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Hotter than the ambient rating suggests, because eight PoE+ links drop their losses into a single cavity. Soak the unit at full load, then probe the shell and the board under the body. Treat minus forty to eighty five as a limit rather than a target, and move air across the tails if the reading climbs. by LINK-PP Technical Support
  • A:
    They will hold, but a shell that long rocks each time a cord goes into the end mouth furthest from the posts. Use every retaining post the body gives you, add a chassis screw through the flange where the plate allows, and keep heel fillets generous. Support near the middle as well as the ends. by LINK-PP Technical Support
  • A:
    Multiply one lens current by sixteen, then check the PHY pins can sink that total without falling below the forward voltage you designed around. A resistor per lens keeps brightness even from one batch to the next, and splitting the returns over several ground pins stops one pin carrying the array. by LINK-PP Technical Support
  • A:
    On two pair delivery the supply enters at the middle of the TX and RX coils, which puts the tap conductor and its board trace in the current path the whole time. Size both from the datasheet figure rather than a rule of thumb, and expect extra heat exactly where the winding meets the frame. by LINK-PP Technical Support
