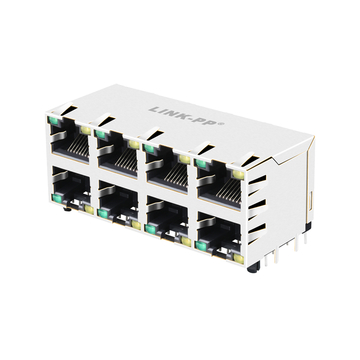

LPJT476156AENL 2.5G Base-T RJ45 2x4 Port Connectors With Integrated Magnetics Green/Yellow LED

Name: LPJT476156AENL
Brand: LINK-PP
SKU: 198453
Price: 67.88 USD
Availability: InStock
Rating: 5 (27 reviews)

# 198453

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

: LPJT476156AENL 2.5G Base-T RJ45 2x4 Port Connectors With Integrated Magnetics Green/Yellow LED

27 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

27 Reviews

0 Questions

Request Stock

1.2K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 67.88

100

$ 56.341

600

$ 48.195

1200

$ 42.765

6000

$ 38.013

P/N: LPJT476156AENL

Compatible:: LINK-PP

Competitor P/N:: LPJT476156AENL

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.088kg
Package: Tray
SPQ: 12pcs
Qty/carton: 144pcs
Carton size: 37*30*30cm
G.W./carton: 12.7kg

Add to wish

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJT476156AENL 2.5G Base-T RJ45 2x4 Port Connectors With Integrated Magnetics Green/Yellow LED,RoHS

LINK-PP Part Number	LPJT476156AENL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NON PoE)
Number of Ports	2x4 Port	Speed	2.5G Base-T
Latch	Both	Cores per Port	10
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	1.015/25.79	Package Length (Inches/mm)	1.118/28.40
Package Width (Inches/mm)	2.330/59.18	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

2.5G RJ45 2x4 Female Connectors
