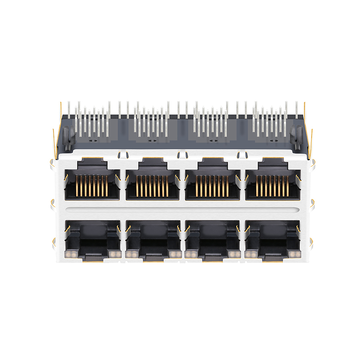

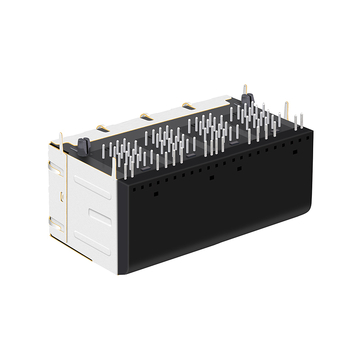

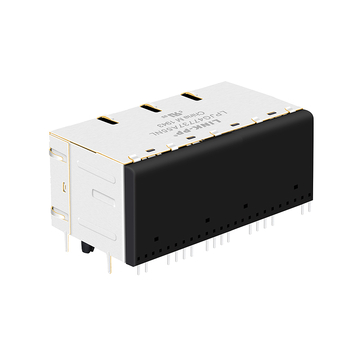

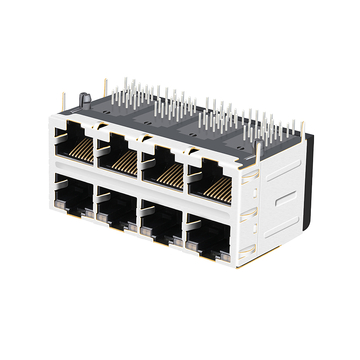

LPJG47737A55NL 1000 base-t 2x4 port magnetic rj45 jack with green&orange green&orange led

LPJG47737A55NL 1000 Base-T 2x4 Port Magnetic RJ45 Jack With Green&Orange/Green&Orange Led

Product summary

Product
LPJG47737A55NL 1000 Base-T 2x4 Port Magnetic RJ45 Jack With Green&Orange/Green&Orange Led
SKU
155391
P/N
LPJG47737A55NL
Price
$ 29.46
Stock
620 in Stock
Sold
2.3K
Unit price $ 29.46
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG47737A55NLSKU: 155391

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJG47737A55NL
Volume pricing Online tiers · larger qty or custom price on request
$ 29.460
1–99 pcs
$ 24.452
100–599 pcs
$ 20.917
600–1,199 pcs
$ 18.560
1,200–5,999 pcs
$ 16.498
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
620 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 12
Total Price:
$ 29.46
Packaging Details
12 pcs
216 pcs
Tray
37×30×30 cm
0.059 kg
12.7 kg

LINK-PP LPJG47737A55NL 100/1000 Base-T Magnetic RJ45 Jack for Network Firewall and Monitoring System (2x4 Port,Green&Orange/Green&Orange Led)

The LPJG47737A55NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Server.

LINK-PP Part Number:
LPJG47737A55NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Orange/Green&Orange Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.248/31.70

Package Width (Inches/mm)
2.330/59.18
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG47737A55NL Drawing LPJG47737A55NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The station platform air reaches -14℃ on the coldest night we log. This part is rated from -40℃ to 85℃ at the contacts. Four winters on that line have shown no cracked shell or a loose contact. by LINK-PP Technical Support
  • A:
    Both rows carry green and orange lenses and the colours sit side by side. A technician reads link and traffic from one glance. The tunnel lighting is dim down there, so a bright lens on the front helps a lot. by LINK-PP Technical Support
  • A:
    Each platform screen in the station needs its own link back to the control room. A single block serves eight screens from one board. That kept our cabinet the same size as the old one. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    19 Reviews

  • 5 Stars
    89%
    4 Stars
    11%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (19)
No data
R***n
Verified Purchase
5.0
2026-11-15
10p8c contacts, ten positions with eight loaded, the standard set, so the harness pinned out first try.
I***g
Verified Purchase
5.0
2026-09-11
Eight ports, one insertion step. Matched the drawing.
B***m
Verified Purchase
4.0
2026-05-06
The outer carton came crushed on one corner, but the LPJG47737A55NL bodies inside were fine. The part number is printed on the bag, so the line picked the right bin first time.
S***d
Verified Purchase
5.0
2026-03-19
Two rows of four share one metal front, so all eight drops line up at one pitch on the chassis. Bench tested. The pins took solder first try. :-)
A***p
Verified Purchase
5.0
2025-11-26
Top row opens up, bottom row down. No surprises against the drawing.
