LP22AC01301 sfp 2x2 cage assembly with integrated connector press-fit with outer light pipe
Click to open expanded view

LP22AC01301 SFP 2x2 Cage Assembly With Integrated Connector Press-Fit With Outer Light Pipe

Product summary

Product
LP22AC01301 SFP 2x2 Cage Assembly With Integrated Connector Press-Fit With Outer Light Pipe
SKU
170726
P/N
LP22AC01301
Price
$ 5.93
Stock
4500 in Stock
Sold
600
Unit price $ 5.93
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22AC01301SKU: 170726

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Compatible P/N:
LP22AC01301
Volume pricing Online tiers · larger qty or custom price on request
$ 5.930
1–99 pcs
$ 5.086
100–999 pcs
$ 4.450
1,000–4,999 pcs
$ 4.228
5,000–9,999 pcs
$ 4.005
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 5.93

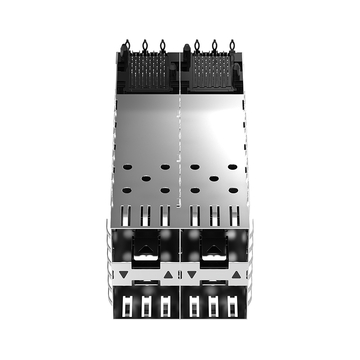

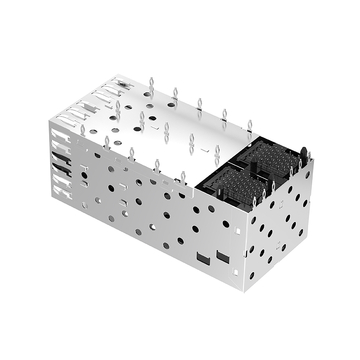

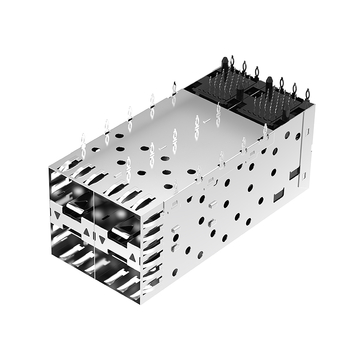

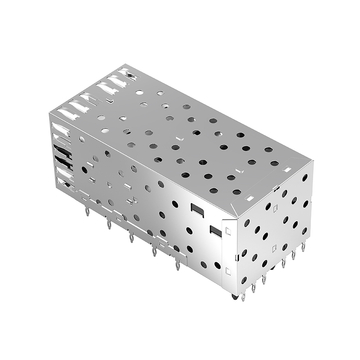

LP22AC01301 SFP 2x2 Cage Assembly With Integrated Connector Press-Fit With Outer Light Pipe

LINK-PP Part Number LP22AC01301 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP
Max Data Rate 4 Gbps Features EMI Shielded
Port Matrix Configuration 2×2 Number of Ports 4
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 1.132/28.75 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22AC01301.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    On our qualification board it did. We ran three cycles from minus 40 to 85 C and cage to chassis resistance stayed under 30 milliohms after each soak, with no intermittent open at the press-fit joints. The plating showed no bare spots at the folded corners under a loupe and no flaking on the legs. Inserting a transceiver in all four ports after the final soak produced no binding. Keep the chassis path short and recheck it after cycling if the cabinet sees repeated freeze and thaw. by LINK-PP Technical Support
  • A:
    The frame is 28.75 mm wide and 25.20 mm high. Our bezel was cut at 29.4 mm, which left roughly 0.3 mm per side and still let the frame seat flat. Leave a little extra if your panel is painted or has a gasket, because the shield fingers need a conductive contact patch. Check the opening against the full four port matrix rather than scaling up a single port drawing. Height is the same as the 2x1 version, so only the width changes. by LINK-PP Technical Support
  • A:
    Support the board evenly under the whole cage and drive the legs in one controlled operation rather than pressing one corner at a time. We measured flatness within 0.08 mm across all four port openings after the press, and a bowed frame is what makes the upper right transceiver bind. Gauge the finished plated holes first, follow the drawing diameter, and avoid a second press on a used cage. Check the four folded corners for plating damage afterwards. by LINK-PP Technical Support
  • A:
    The outer pipe runs along the outside edge of the 2x2 frame, so all four board LEDs sit in a single row near that edge and the light is carried out to the faceplate. An inner pipe sits between the ports and needs the LEDs split across the matrix. For a 2x2 layout the outer version keeps the LED routing much simpler. The pipe is a separate plastic clip, so confirm it is seated on incoming inspection and check it has not shifted after thermal cycling. by LINK-PP Technical Support
