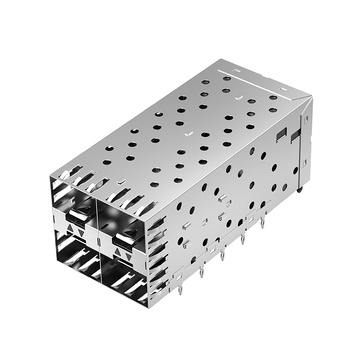

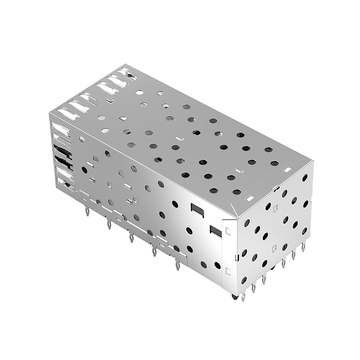

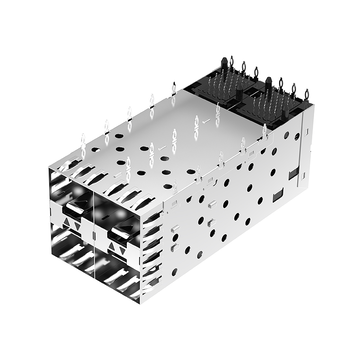

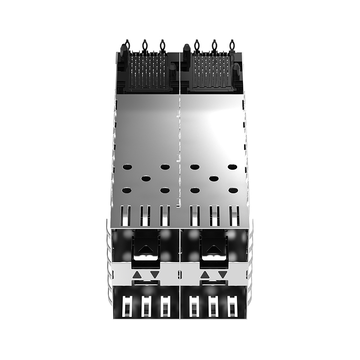

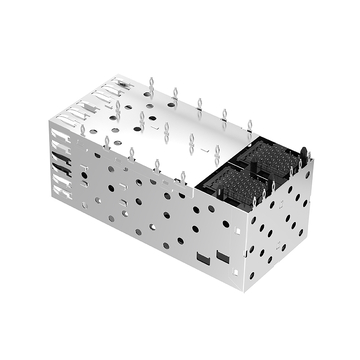

Pulse SFP0-3031-L Compatible LINK-PP LP22AC01201 SFP 2x2 Cage&Connector Press-Fit With Inner Light Pipe

Product summary

Product
Pulse SFP0-3031-L Compatible LINK-PP LP22AC01201 SFP 2x2 Cage&Connector Press-Fit With Inner Light Pipe
SKU
203659
P/N
LP22AC01201
Price
$ 5.93
Stock
800 in Stock
Sold
7.2K
Unit price $ 5.93
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP22AC01201SKU: 203659

Compatible with Pulse SFP0-3031-LDatasheetAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
SFP0-3031-L
Volume pricing Online tiers · larger qty or custom price on request
$ 5.930
1–99 pcs
$ 5.086
100–999 pcs
$ 4.450
1,000–4,999 pcs
$ 4.228
5,000–9,999 pcs
$ 4.005
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
800 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 5.93

Pulse SFP0-3031-L Compatible LINK-PP LP22AC01201 SFP Cage Connector 2x2 Port Press-Fit With Inner Light Pipe

LINK-PP Part Number LP22AC01201 REVB Pulse Part Number
SFP0-3031-L
Product Type Cage Form Factor SFP
Cage COPPER ALLOY,Ni PL ATED PACKAGING Tray Packaging
Port Matrix Configuration 2x2 Port Number of Ports 4
Operating Temperature Range -40 – 85°C Mounting Style Through Hole, Right Angle
Included Lightpipe Inner Light Pipe Termination Press-Fit
Height (Inches/mm) 25.20/0.992 Length (Inches/mm) 63.25/2.490
Width (Inches/mm) 28.75/1.132 EMI Containment Feature Type
EMI Springs

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP22AC01201 REVB.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    No, it is a press fit cage with a plated copper alloy shell, so there is no reflow step for the metalwork at all. The low temperature figure describes where the plating and spring temper keep their contact force, not a different assembly profile. We press it after the small parts are soldered, with a support block under the whole board. It is worth paying for only when the equipment really starts cold in an unheated cabinet. by LINK-PP Technical Support
  • A:
    Yes. This part ships as one assembly with the connector already located inside the shell, and the press fit tails bring it down to the plated holes. Skipping a separate connector placement removes the small offset that makes module insertion stiff, which was the reason we chose it. All four openings lined up on the first board without shimming. If you place your own connector, pick the bare cage version of the family. by LINK-PP Technical Support
  • A:
    The opening must let both rows of ports sit flush while the spring contacts around the edge still touch the panel. A cutout that is a little generous leaves the upper row floating, and one that is tight pushes the shell back and strains the press fit tails. We cut a sample panel first, checked the fit with the bare cage, then released the drawing. The twenty five point two millimetre height is the figure to work from. by LINK-PP Technical Support
  • A:
    The pipe is moulded into the cage body and runs from a board mounted LED up to each of the four front openings, so the lamp sits behind the shell rather than in it. You still supply the LED and its resistor on the board, and the alignment depends on where that part is placed. We matched the footprint to the drawing before layout and every opening lit evenly. If your indicators sit far from the cage edge, an external guide is a separate part. by LINK-PP Technical Support

Customer Reviews

  • 5

    15 Reviews

  • 5 Stars
    100%
    4 Stars
    0%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (15)
No data
A***d
Verified Purchase
5.0
2026-04-10
Walls bonded. It dropped in with the same pin out.
D***t
Verified Purchase
5.0
2025-12-11
14.00 mm wide, two of them fit side by side. It matched the sheet on every dimension.
E***g
Verified Purchase
5.0
2025-06-15
No light pipe on this part, so the module window does the work. It held up through the pull test. :-)
C***n
Verified Purchase
5.0
2024-10-25
Press fit tails needed no solder at the cage. It matched the drawing on the hole pattern.
R***t
Verified Purchase
5.0
2023-08-23
Four cages in one frame, and the tails seated. No fuss seating it in the faceplate.
