LPJD0012DNL without led vertical rj45 connector with 10 100 base-t integrated magnetics

LPJD0012DNL Without LED Vertical RJ45 Connector With 10/100 Base-T Integrated Magnetics

Product summary

Product
LPJD0012DNL Without LED Vertical RJ45 Connector With 10/100 Base-T Integrated Magnetics
SKU
172474
P/N
LPJD0012DNL
Price
$ 3.07
Stock
2052 in Stock
Sold
103.1K
Unit price $ 3.07
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJD0012DNLSKU: 172474

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJD0012DNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.070
1–99 pcs
$ 2.514
100–599 pcs
$ 2.208
600–1,199 pcs
$ 1.686
1,200–5,999 pcs
$ 1.441
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2052 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.07
Packaging Details
50 pcs
1000 pcs
Tray
32×30×31 cm
0.008 kg
7.5 kg

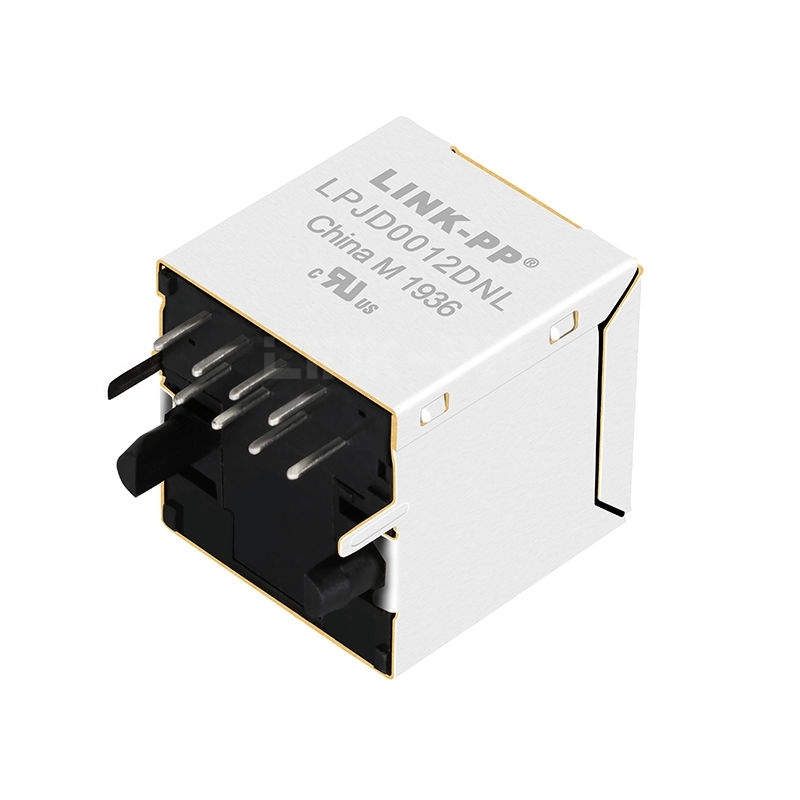

LINK-PP LPJD0012DNL Vertical RJ45 Connector With 10/100 Base-T Integrated Magnetics For Machine(Top Entry,Without LED)

The LPJD0012DNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Alarm, TV, Surgical Equipment.

LINK-PP Part Number: LPJD0012DNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Up Cores per Port 4
Orientation 180° Angle (Right) PCB Mount Angle

THT Solder

Shield EMI Tabs Without LED Option

Without

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.665/16.90 Package Length (Inches/mm)

0.657/16.70

Package Width (Inches/mm) 0.630/16.00 Temperature 0℃ TO 70℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJD0012DNL Drawing LPJD0012DNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A port that sees daily patching ages far quicker than one fitted for life, so we ask the supplier for the gold depth and the mating cycle rating up front. Before the lot is approved a sample goes through many insertion cycles and the contact resistance is measured at the end. A thin finish in a damp cabinet first shows as links that drop in and out long before the surface looks worn, which is why a spare sits on the shelf for side by side comparison. by LINK-PP Technical Support
  • A:
    For sign off we confirm the port negotiates ten and hundred megabits and clears its error counters at both a short and a ninety metre length. With no indicator on the jack itself, the first check is a ratio and tap rail verification against the drawing before we send any frames. The register snapshot from the first good unit is kept as the lot reference. A unit that only slips at the longer length gets flagged on the build sheet. by LINK-PP Technical Support
  • A:
    A connector that stands up from the board leaves the panel cutout shallow but asks for room beside it, since the cable exits the side instead of the front. We set the part near the tray rear and checked the boot swing against the neighbouring components during the mechanical review. Our first placement fouled a support rib, which we relieved rather than move the board. Mark the keep out zone on the layout so a later revision does not crowd the bend radius. by LINK-PP Technical Support
  • A:
    No lamps on the connector means we rely on the PHY registers or a chassis level telltale instead of the jack itself. We surfaced link and activity on the management page and trained the port at both ten and a hundred megabits to confirm the speed. As nothing on the jack shows state, each build starts with a winding ratio check and a tap rail continuity check before any traffic goes. Those two checks catch a wrong winding or a dead pair before the link is asked to carry anything. by LINK-PP Technical Support
