X Multiple 51F-1203ND2 Compatible LINK-PP LPJD0012DNL 10/100Base-T Without LED Vertical RJ45 Sockets

X Multiple 51F-1203ND2 Compatible LINK-PP LPJD0012DNL 10/100Base-T Without LED Vertical RJ45 Sockets

#99662
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100
77 Reviews
1 Questions
Request Stock
103.1K Sold
$  3.066
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 3.066
100
$ 2.515
600
$ 2.208
1200
$ 1.687
6000
$ 1.442
Manufacture: LINK-PP
P/N: LPJD0012DNL
Competitor P/N:
51F-1203ND2
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2052 in Stock .
Quantity:
Total Price:
$ 3.066
Packaging Details:
0.008kg
Tray
50pcs
1000pcs
32*30*31cm
7.5kg

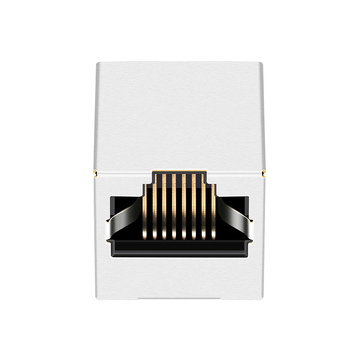

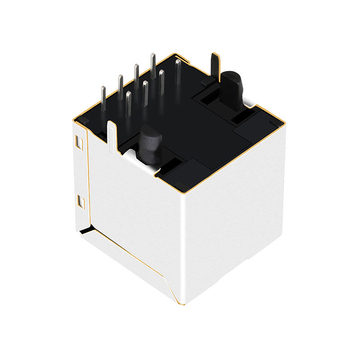

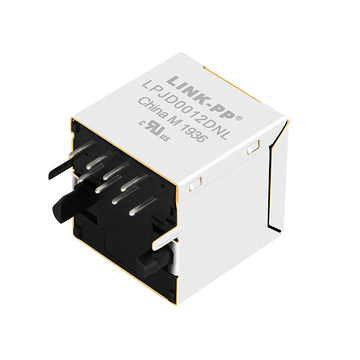

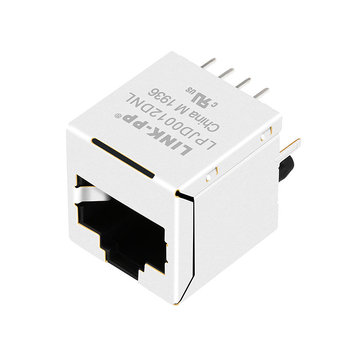

X Multiple 51F-1203ND2 Compatible LINK-PP LPJD0012DNL 10/100 Base-T Vertical RJ45 Sockets For Game Controller (Top Entry, Without LED)


The LPJD0012DNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Surgical Equipment , Ethernet Control, Monitoring System.


LINK-PP Part Number:
LPJD0012DNL YDS Part Number 51F-1203ND2
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.665/16.90Package Length (Inches/mm)

0.657/16.70

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

Download

LPJD0012DNL Drawing
