LPJD4012-9BENL 10 100 base-t vertical rj45 magjack green yellow led

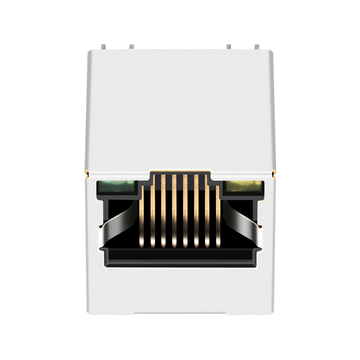

LPJD4012-9BENL 10/100 Base-T Vertical RJ45 Magjack Green/Yellow LED

Product summary

Product
LPJD4012-9BENL 10/100 Base-T Vertical RJ45 Magjack Green/Yellow LED
SKU
142384
P/N
LPJD4012-9BENL
Price
$ 6.56
Stock
3290 in Stock
Sold
260
Unit price $ 6.56
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJD4012-9BENLSKU: 142384

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJD4012-9BENL
Volume pricing Online tiers · larger qty or custom price on request
$ 6.560
1–99 pcs
$ 5.379
100–599 pcs
$ 4.723
600–1,199 pcs
$ 3.608
1,200–5,999 pcs
$ 3.083
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3290 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 6.56
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

Vertical Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, Green/Yellow LED,RoHS

LINK-PP Part Number: LPJD4012-9BENL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Up Cores per Port 4
Orientation 180° Angle (Right) PCB Mount Angle

THT Solder

Shield EMI Tabs Without LED Option

Green/Yellow

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.657/16.70 Package Length (Inches/mm)

0.665/16.90

Package Width (Inches/mm) 0.636/16.15 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 50u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJD4012-9BENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The post holes sit off centre, so the body only seats one way on the board. We put a silk outline with the mouth side marked. All 20 boards passed the first fit check there. by LINK-PP Technical Support
  • A:
    A lamp inside the can saves a hole in the plate. It also keeps the light where the technician looks. Green over yellow shows link and activity on both of our builds. The window faces up with the mouth. by LINK-PP Technical Support
  • A:
    A thicker plating resists wear at the contact point, which matters for a port that gets plugged often. This version ships with 50 micro inch gold on the mating area. Our field units showed no wear marks. by LINK-PP Technical Support
  • Q:
    A:
    Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on the products. by LINK-PP Technical Support
  • A:
    Free samples are always available for testing or quality evaluation purpose. by LINK-PP Technical Support

Customer Reviews

  • 5

    108 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (108)
No data
H***n
Verified Purchase
5.0
2026-11-14
Green and yellow, one column each. The light pipe lined up first try.
R***n
Verified Purchase
4.0
2026-05-16
The first order had a crushed carton and three jacks loose, but the shells were sound. Both pairs read even and the links have held.
M***k
Verified Purchase
5.0
2026-01-12
No fingers, plate ground. It went in with the same tooling, no drama.
C***i
Verified Purchase
5.0
2025-08-02
LPJD4012-9BENL replaces our old right angle part in the same hole. No drama with the tab direction.
T***n
Verified Purchase
5.0
2025-04-03
Same 16 mm cutout as the old part, so no sheet metal work. It sat within spec on the height.
