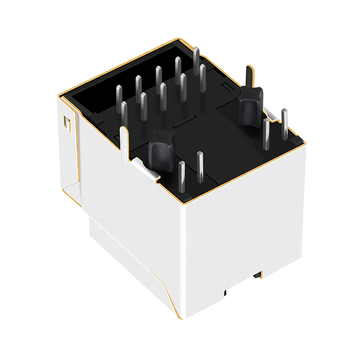

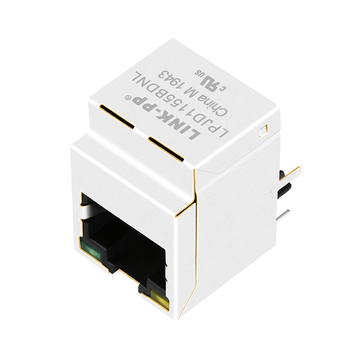

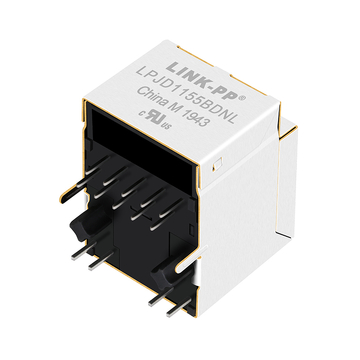

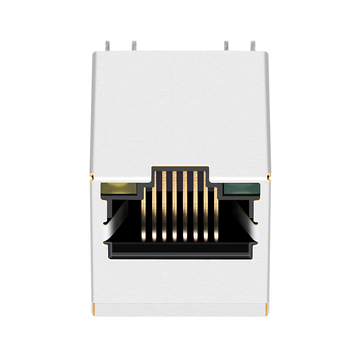

LPJD1155BDNL 10/100 Base-T RJ45 PoE Vertical Magjack With Rectifier Bridge Green/Green LED

Name: LPJD1155BDNL 10/100 Base-T RJ45 PoE Vertical Magjack With Rectifier Bridge Green/Green LED
Brand: LINK-PP
SKU: 172361
Price: 5.29 USD
Availability: InStock
Rating: 5 (51 reviews)

Product: LPJD1155BDNL 10/100 Base-T RJ45 PoE Vertical Magjack With Rectifier Bridge Green/Green LED
SKU: 172361
P/N: LPJD1155BDNL
Price: $ 5.29
Stock: 2480 in Stock
Sold: 118.4K
Product URL: https://www.l-p.com/products/470338.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

51 Reviews

0 Questions

118.4K Sold

$ 5.29

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 5.291

100

$ 4.339

600

$ 3.810

1200

$ 2.911

6000

$ 2.487

Manufacture: LINK-PP P/N: LPJD1155BDNL SKU: 172361

Compatible:: LINK-PP; Halo

Compatible P/N:: LPJD1155BDNL

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

2480 in Stock .

Quantity:

Total Price:

$ 5.29

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 54pcs
Qty/carton: 1296pcs
Carton size: 36.5*33*32cm
G.W./carton: 10kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJD1155BDNL 10/100Base-T RJ45 Vertical MagJack For Embedded Main Board (POE,Rectifier Bridge,Top Entry,Green/Green LED)

The LPJD1155BDNL speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as 1/0 Controller, Alarm, Router.

LINK-PP Part Number:	LPJD1155BDNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	4
Orientation	180° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Green/Green
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.654/16.60	Package Length (Inches/mm)	0.850/21.59
Package Width (Inches/mm)	0.630/16.00	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	Rectifier Bridge	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Prodcut Drawing LPJD1155BDNL-Drawing.pdf Download
