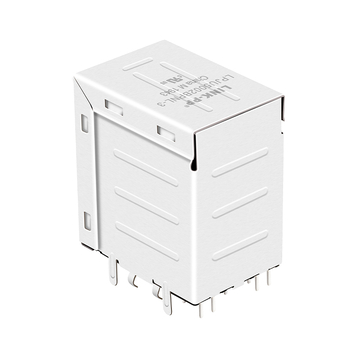

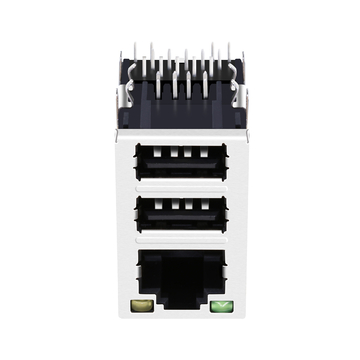

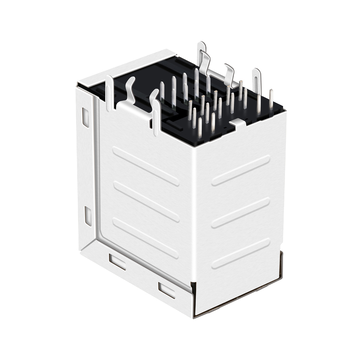

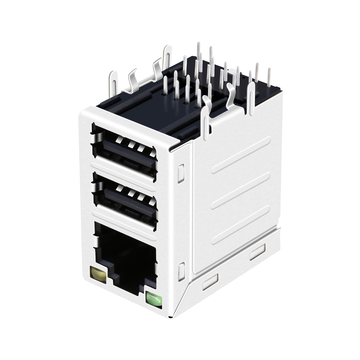

WE 7497010211A Compatible LINK-PP LPJU5002BPNL-3 10/100 Base-T Tab Up Green/Yellow LED with DUAL USB Modular Connector RJ45

Product summary

Product
WE 7497010211A Compatible LINK-PP LPJU5002BPNL-3 10/100 Base-T Tab Up Green/Yellow LED with DUAL USB Modular Connector RJ45
SKU
142507
P/N
LPJU5002BPNL-3
Price
$ 7.06
Stock
3245 in Stock
Sold
6K
Unit price $ 7.06
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJU5002BPNL-3SKU: 142507

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJU5002BPNL-3
Volume pricing Online tiers · larger qty or custom price on request
$ 7.060
1–99 pcs
$ 5.785
100–599 pcs
$ 5.080
600–1,199 pcs
$ 3.880
1,200–5,999 pcs
$ 3.316
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3245 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 7.06
Packaging Details
50 pcs
500 pcs
Tray
45.5×31×17.5 cm
0.018 kg
9.2 kg

WE 7497010211A Compatible LINK-PP LPJU5002BPNL-3 10/100 Base-T Modular Connector RJ45 for Automation and Fieldbus System(with DUAL USB , Tab Up ,Green/Yellow LED)


The LPJU5002BPNL-3 supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Automation, Fieldbus System,Embedded Main Board and Ethernet Control.


LINK-PP Part Number:
LPJU5002BPNL-3 WE Part Number 7497010211A
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
Single Port with Dual USBSpeed
10/100 Base-T
Latch
UPCores per Port
5
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.240/31.50Package Length (Inches/mm)

1.079/27.40

Package Width (Inches/mm)
0.736/18.70
Temperature
0℃ TO +70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJU5002BPNL-3-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Repair granularity and panel height. The 31.50mm body saves two cutouts and two placements, but a damaged contact now takes out the RJ45 and both USB ports together, so rework means removing the whole block. The height also rules out a low profile chassis. For a service panel that is rarely touched the saving wins; for a field replaceable unit, three separate connectors are usually the safer choice. by LINK-PP Technical Support
  • A:
    It can if the shields are tied together carelessly. This variant has no EMI tabs, so the chassis bond has to be made at the panel, and the USB shield should be kept separate from the Ethernet centre tap network until it reaches a defined ground point. A direct tie under the part often injects switching noise into the data pairs. We suggest a ferrite or a controlled single point bond and an emissions check with both USB ports active. by LINK-PP Technical Support
  • A:
    Because the leads for the two functions do not all sit at the same height. A slight tilt that a single purpose jack would tolerate can leave the USB pins barely wetted while the RJ45 pins look fine. We specify 0.1mm across the whole mixed field and check the first article with a flat gauge. If a port later fails enumeration, inspect those joints first rather than replacing the whole housing. by LINK-PP Technical Support
  • A:
    The full pinout and the footprint, especially the USB section. The RJ45 side follows the usual 8p8c pattern, but the two USB ports add shield and power pins whose assignment can differ between suppliers even when the outline matches. Compare the 31.50mm by 18.70mm outline against the panel drawing too. A mechanical fit alone does not guarantee the USB lines land on the right pads, and that mistake is expensive to find after reflow. by LINK-PP Technical Support

Customer Reviews

  • 5

    68 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (68)
No data
N***h
New Zealand
Verified Purchase
5.0
2026-11-16
We put these on a kiosk board where the front panel had room for one opening and the USB ports saved a second cutout. Green and yellow LEDs read from the front, and the 10p8c contacts carry the 10/100 pairs without any drama. The 31.50 mm height cleared the AC brick underneath, worth it.
M***m
United Kingdom
Verified Purchase
5.0
2026-10-29
Dual USB stack, 10p8c, worth it.
A***w
Ukraine
Verified Purchase
5.0
2026-10-11
USB and network on one drop, no extra cable, worth it. :D
M***y
Greece
Verified Purchase
4.0
2026-09-23
One USB shell was bent, but the RJ45 side linked at 10/100 and the 10p8c contacts took the plug without a rattle, worth it.
S***m
Thailand
Verified Purchase
5.0
2026-09-23
One RJ45 and two USB in a 31.50mm housing.
