LPJU3401AONL 10 100 base-t rj45 magjack with single usb tab up orange&green yellow led

LPJU3401AONL 10/100 Base-T RJ45 Magjack with Single USB Tab Up Orange&Green/Yellow LED

Product summary

Product
LPJU3401AONL 10/100 Base-T RJ45 Magjack with Single USB Tab Up Orange&Green/Yellow LED
SKU
150391
P/N
LPJU3401AONL
Price
$ 3.09
Stock
10442 in Stock
Sold
20.2K
Unit price $ 3.09
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJU3401AONLSKU: 150391

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJU3401AONL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.090
1–99 pcs
$ 2.531
100–599 pcs
$ 2.222
600–1,199 pcs
$ 1.697
1,200–5,999 pcs
$ 1.450
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
10442 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 3.09
Packaging Details
40 pcs
720 pcs
Tray
37×30×30 cm
0.014 kg
10.2 kg

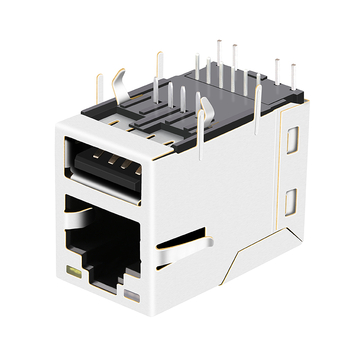

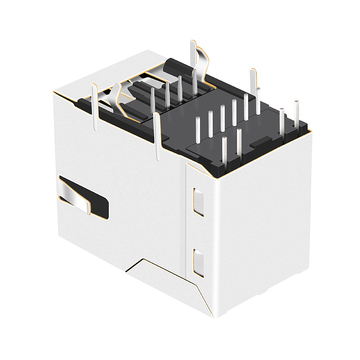

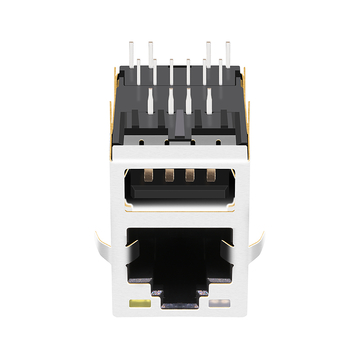

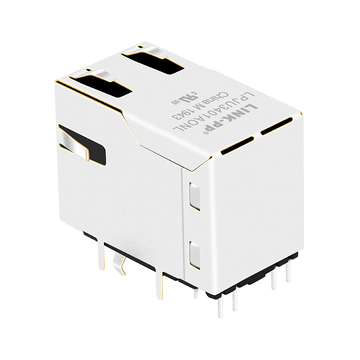

LINK-PP LPJU3401AONL 10/100 Base-T RJ45 Magjack for Smart Camera and Monitoring System(with Single USB , Tab Up ,Orange&Green/Yellow LED)

The LPJU3401AONL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Camera, Monitoring System,1/0 Controller and Alarm.

LINK-PP Part Number: LPJU3401AONL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port with Single USB Speed 10/100 Base-T
Latch UP Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Orange&Green/Yellow Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.822/20.89 Package Length (Inches/mm)

1.142/29.00

Package Width (Inches/mm) 0.654/16.60 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Profile Drawing LPJU3401AONL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Orange and green or yellow lenses are fitted to the LPJU3401AONL front. Shield tabs are stamped on the shell, but no magnetics power is passed. The final sign off rests with the engineer releasing the board, with the assembled case in view. by LINK-PP Technical Support
  • A:
    Smart camera, monitoring, IO controller and alarm are listed for LPJU3401AONL, for that board spin. The orange and green lens pair serves status, not a specific port speed. A bench sample settles the margin your circuit needs, on the released board drawing. by LINK-PP Technical Support
  • A:
    LPJU3401AONL is rated 10/100 Base-T on both the RJ45 and USB combo. No gigabit figure is printed, so a 1000 link is not claimed by this part. The sustaining group reviews the fit at the next spin, on the incoming parts page. by LINK-PP Technical Support
  • A:
    Smart camera and monitoring system are named uses for the LPJU3401AONL, at the first fit review. Minus forty to plus eighty five Celsius fits an outdoor camera enclosure. The inspection gauge checks the width the cavity claims, on the released board drawing. by LINK-PP Technical Support
