LPJU5117BPNL 10 100 base-t rj45 magjack connector with dual usb tab up green yellow led

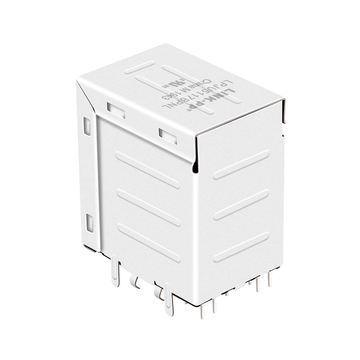

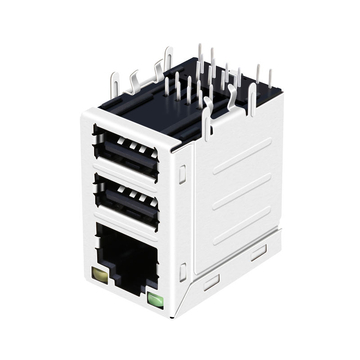

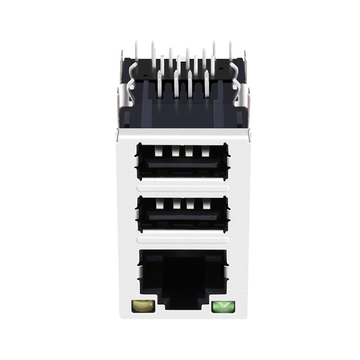

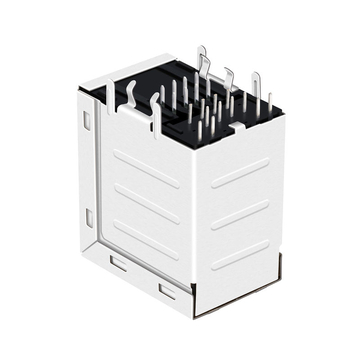

LPJU5117BPNL 10/100 Base-T RJ45 magjack connector with DUAL USB Tab Up Green/Yellow LED

Product summary

Product
LPJU5117BPNL 10/100 Base-T RJ45 magjack connector with DUAL USB Tab Up Green/Yellow LED
SKU
177794
P/N
LPJU5117BPNL
Price
$ 7.06
Stock
3000 in Stock
Sold
2.8K
Unit price $ 7.06
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJU5117BPNLSKU: 177794

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Other
Compatible P/N:
LPJU5117BPNL
Volume pricing Online tiers · larger qty or custom price on request
$ 7.060
1–99 pcs
$ 5.785
100–599 pcs
$ 5.080
600–1,199 pcs
$ 3.880
1,200–5,999 pcs
$ 3.316
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 7.06
Packaging Details
50 pcs
500 pcs
Tray
45.5×31×17.5 cm
0.018 kg
9.2 kg

LINK-PP LPJU5117BPNL 10/100 Base-T RJ45 magjack connector with DUAL USB for Automation and Fieldbus System(Tab Up ,Green/Yellow LED)


The LPJU5117BPNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Automation, Fieldbus System,Embedded Main Board and Ethernet Control.


LINK-PP Part Number
LPJU5117BPNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
Single Port with Dual USBSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.1217/30.90Package Length (Inches/mm)

1.079/27.40

Package Width (Inches/mm)
0.745/18.92
Temperature
0℃ TO +70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Model LPJU5117BPNL.zip
3D Model LPJU5117BPNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Green and yellow lamps are fitted on the LPJU5117BPNL face, via a patch. The controller decides what each one shows, across a window, around that case. Your jig proves the part on the link, on the print, around our patch. by LINK-PP Technical Support
  • A:
    LPJU5117BPNL suits a panel that needs two USB drops, around that run, on that shelf. The RJ45 side still runs at 10/100 Base-T, on our port, around our link. The build note fixes the orientation, across our size, around a patch. by LINK-PP Technical Support
  • A:
    The LPJU5117BPNL can is listed without EMI tabs, across that rig, across the run. Inside a sealed box that is often fine, around that lamp, around this carton. The schematic owner signs it off, under that cabinet, at the mux. by LINK-PP Technical Support
  • A:
    LPJU5117BPNL stacks two USB ports beside the RJ45 opening, near a lamp, under this plan. All three share one panel window, near a tape, near our list, at this patch. The parts team confirms the reel, in a size, around this harness. by LINK-PP Technical Support

Customer Reviews

  • 5

    23 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (23)
No data
S***d
Brazil
Verified Purchase
5.0
2026-11-15
A single opening in the plate takes the RJ45 and the 2 USB ports, which saved us a second cut and a separate harness. The USB shells share the can with the jack, so the whole block is one part on the BOM. That is good for a small enclosure.
R***e
Verified Purchase
4.0
2026-05-16
The carton came dented on 1 corner and the tray was loose, but the jacks were undamaged. The 2 USB sockets sit under the RJ45 mouth. The packing held up through the trip.
A***n
Verified Purchase
5.0
2025-12-22
4 cores are enough for 100 megabit, so the extra positions stay unused and the wiring is simple. No surprises on the turns ratio. :-)
E***n
Verified Purchase
5.0
2025-07-04
Latch up clears the USB plugs. It matched the drawing on the tab side.
N***d
United Arab Emirates
Verified Purchase
5.0
2025-04-20
0 to 70 ℃ is fine for an indoor panel.
