LPJG47537CNL 2x4 port 1000 base-t integrated magnetics ethernet rj45 jack without led

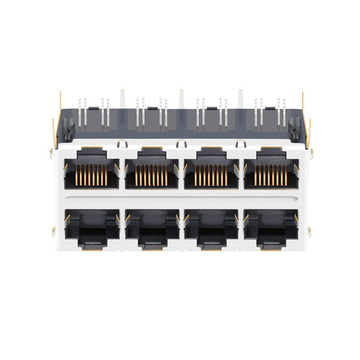

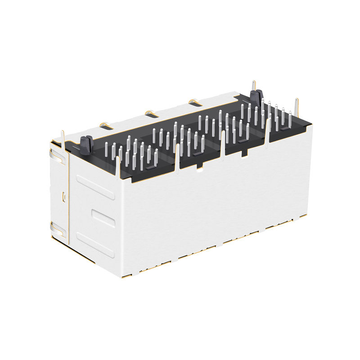

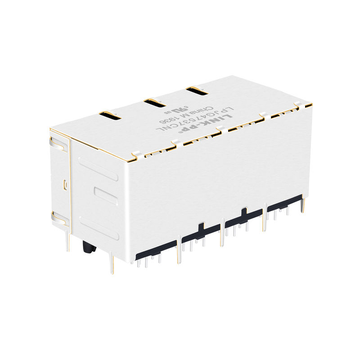

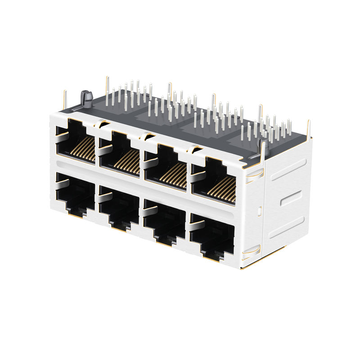

LPJG47537CNL 2x4 Port 1000 Base-T Integrated Magnetics Ethernet RJ45 Jack Without LED

Product summary

Product
LPJG47537CNL 2x4 Port 1000 Base-T Integrated Magnetics Ethernet RJ45 Jack Without LED
SKU
104432
P/N
LPJG47537CNL
Price
$ 26.03
Stock
3330 in Stock
Sold
2.8K
Unit price $ 26.03
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJG47537CNLSKU: 104432

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJG47537CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 26.030
1–99 pcs
$ 21.607
100–599 pcs
$ 18.483
600–1,199 pcs
$ 16.400
1,200–5,999 pcs
$ 14.578
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3330 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 12
Total Price:
$ 26.03
Packaging Details
12 pcs
216 pcs
Tray
37×30×30 cm
0.059 kg
12.7 kg

2x4 Port Ethernet RJ45 Jack with 10/100/1000 Base-T Integrated Magnetics, Without LED,Tab Up,RoHS

LINK-PP Part Number:
LPJG47537CNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p10c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.116/28.35

Package Width (Inches/mm)
2.330/59.18
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG47537CNL Drawing LPJG47537CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The tabs sit outside the can and bend as the jack goes down. Bare metal at the rim is what matters, since paint blocks the bond. Scrape a small ring at each tab and the shell reads under an ohm to the chassis. by LINK-PP Technical Support
  • A:
    It keeps the transmit and receive windings at unity, which is what 1000 Base-T expects. Any other ratio would cost you signal level at the far end. We checked 4 ports on a 100 m run and the eye stayed open. by LINK-PP Technical Support
  • A:
    A 1U box gives about 44 mm, so the stack clears with room for the plug boot. The mouth faces up, so the cable leaves upward and needs that space. Measure the boot, not just the body, before you close the lid. by LINK-PP Technical Support
  • A:
    Start from the plain LPJG47537CNL if your board follows our current drawing. The dash one exists for boards built to the older tail pattern. Send us the board file and we will say which one lines up. by LINK-PP Technical Support
  • A:
    Free samples are always available for testing or quality evaluation purpose. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    19 Reviews

  • 5 Stars
    89%
    4 Stars
    11%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (19)
No data
G***i
Verified Purchase
4.0
2026-11-12
The carton showed a creased edge from the belt, Thankfully, the LPJG47537CNL is well built and the eight unlit ports gave us no trouble.
J***m
Verified Purchase
5.0
2026-06-12
Both ends line up with the bezel. It sat within spec on the press force.
N***y
Verified Purchase
5.0
2026-02-22
The LPJG47537CNL measured true against the print. Nothing needed a second look. Heights matched across the tray. Nothing shifted under load. Fit was right out of the bag. The print matched what we measured. Insertion felt right every time. No surprises once the box was open.
B***s
Spain
Verified Purchase
5.0
2025-09-07
Our first LPJG47537CNL mated with the plug without play. No play once the plug seated. The print matched what we measured, well made.
B***m
Verified Purchase
5.0
2025-05-22
Popped the 2x4 Port cage in clean. The module latched first try.
