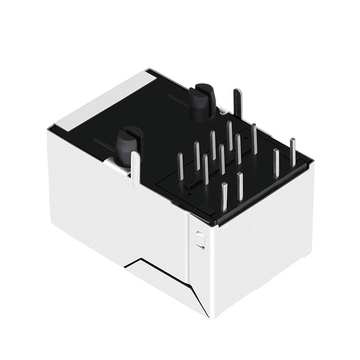

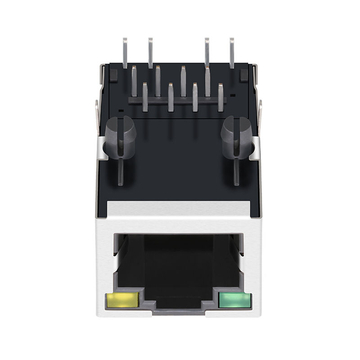

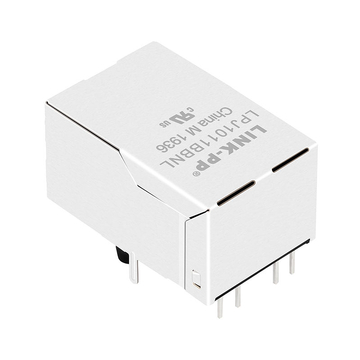

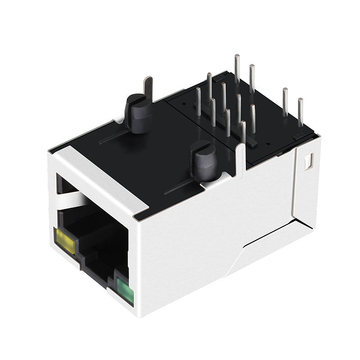

Wurth 7499010214 Compatible LINK-PP LPJ1011BBNL 10/100 Base-T RJ45 Magjack Single Port Tab Up Green/Yellow LED

Product summary

Product
Wurth 7499010214 Compatible LINK-PP LPJ1011BBNL 10/100 Base-T RJ45 Magjack Single Port Tab Up Green/Yellow LED
SKU
117541
P/N
LPJ1011BBNL
Price
$ 2.38
Stock
990 in Stock
Sold
92.6K
Unit price $ 2.38
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ1011BBNLSKU: 117541

Compatible with WE 7499010214Datasheet3D ModelAll downloads

Compatible P/N:
7499010214
Volume pricing Online tiers · larger qty or custom price on request
$ 2.380
1–99 pcs
$ 1.952
100–599 pcs
$ 1.714
600–1,199 pcs
$ 1.310
1,200–5,999 pcs
$ 1.119
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
990 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.38
Packaging Details
50 pcs
1000 pcs
Tray
32×30×31 cm
0.009 kg
8.5 kg

Wurth 7499010214 Compatible LINK-PP LPJ1011BBNL 10/100 Base-T RJ45 Magnetics Modular jack for Digital Camera and Smart Meters (Single Port, Tab Up, Green/Yellow Led)

The LPJ1011BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.

LINK-PP Part Number: LPJ1011BBNL Wurth Part Number 7499010214
Part Status Active Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch UP Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs Without LED Option

Green/Yellow Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.530/13.45 Package Length (Inches/mm)

0.994/25.25

Package Width (Inches) 0.636/16.15 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP
