LPJ4011-8G44S0R rj45 jack with 10 100 base-t integrated magnetics tab down yellow&green yellow&green leds
Click to open expanded view

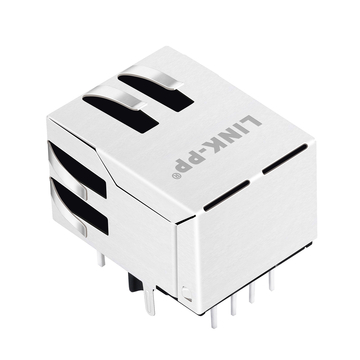

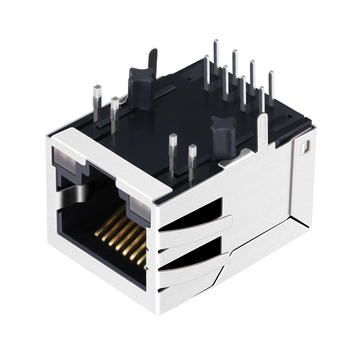

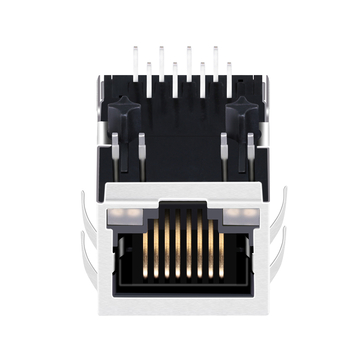

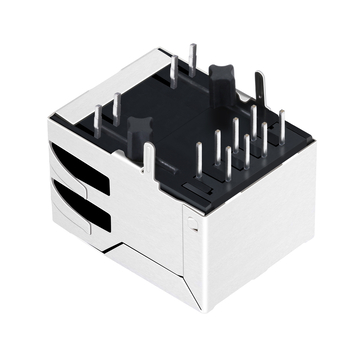

LPJ4011-8G44S0R RJ45 Jack with 10/100 Base-T Integrated Magnetics Tab Down Yellow&Green/Yellow&Green Leds

Product summary

Product
LPJ4011-8G44S0R RJ45 Jack with 10/100 Base-T Integrated Magnetics Tab Down Yellow&Green/Yellow&Green Leds
SKU
182349
P/N
LPJ4011-8G44S0R
Price
$ 2.20
Stock
900 in Stock
Sold
2.1K
Unit price $ 2.20
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJ4011-8G44S0RSKU: 182349

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJ4011-8G44S0R
Volume pricing Online tiers · larger qty or custom price on request
$ 2.200
1–99 pcs
$ 1.800
100–599 pcs
$ 1.580
600–1,199 pcs
$ 1.207
1,200–5,999 pcs
$ 1.032
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.20
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

LINK-PP LPJ4011-8G44S0R RJ45 Jack with 10/100 Base-T Integrated Magnetics for Monitoring System and Digital Camera (Single Port, Tab Down, Yellow&Green/Yellow&Green Led)

The LPJ4011-8G44S0R supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Industrial PC, Hub and Intercom.


LINK-PP Part Number
LPJ4011-8G44S0R Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow&Green/Yellow&Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.833/21.15

Package Width (Inches/mm)
0.627/15.93Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ4011-8G44S0R.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Not per this datasheet. The page describes the application as Ethernet without power and gives no current rating for the windings, so the behaviour under a DC bias is not something we can confirm. If power on the cable is on the roadmap, choose a jack that states the rating and check the winding current before the layout is fixed. For data only use this is the right part. by LINK-PP Technical Support
  • A:
    The tabs press against the panel opening when the board is screwed down, so they bond the shell to the chassis without a separate gasket, provided the panel is bare metal at that point. If your chassis is powder coated, mask the opening or the tabs will sit on paint and do nothing. We check continuity from the shell to the chassis on the first article of every build. by LINK-PP Technical Support
  • A:
    The cutout belongs to the same family, but the body sits differently behind the panel, so take the depth from the drawing rather than assuming it matches a tab up part. With the latch facing down the release sits on the underside, which is what you want when the cable comes up from below. On our enclosure it also kept the whole body inside a 14mm internal height. by LINK-PP Technical Support
  • A:
    Correct, it is a 10/100 part. Four cores is two pairs, which is everything Fast Ethernet needs and nothing more, so there is no path to gigabit through this jack. That is a deliberate choice on a monitoring or sensor board where the port only ever carries telemetry. If the same product might later need gigabit, take the eight core version rather than planning a board change. by LINK-PP Technical Support

Customer Reviews

  • 5

    53 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (53)
No data
Y***i
Greece
Verified Purchase
5.0
2026-11-07
Common mode energy has to go somewhere, and with no termination on an unused pair it goes out of the cable as radiated noise. With the network inside the jack it is present on every port regardless of board space, which on a small board there was none of.
L***m
Hungary
Verified Purchase
5.0
2026-10-09
With the tabs, the shell bonds to the chassis at the panel opening rather than through a separate finger strip. That removed a part from the BOM and a step from the assembly, and on the radiated scan the difference against the unshielded version was clear at the top of the band.
A***y
India
Verified Purchase
5.0
2026-09-10
One jack, four cores, no diodes, shielded and tab down. Every one of those choices comes from the enclosure and the 10/100 link, not from a datasheet preference. =)
D***n
Netherlands
Verified Purchase
5.0
2026-08-12
Tab down is the whole reason we picked this over the tab up part. The harness in this enclosure runs under the board and comes up, so the clip has to face the underside or the installer is working blind.
G***k
Egypt
Verified Purchase
5.0
2026-07-15
1CT:1CT both ways, so one part covers both windings.
