LPJ0190HENL rj45 poe magjack 10p8c 10 100 base-t tab down green yellow led

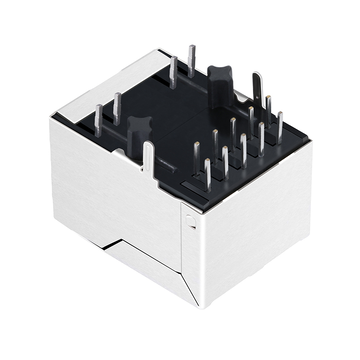

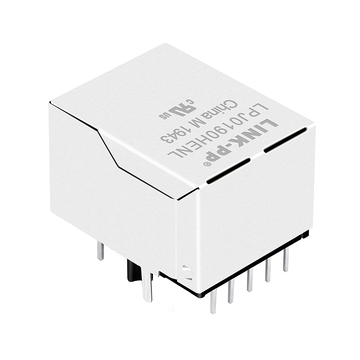

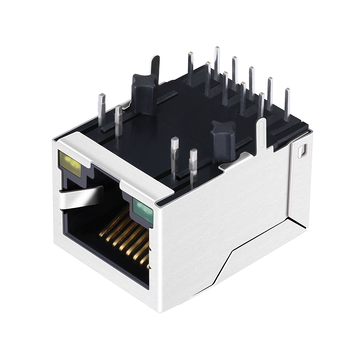

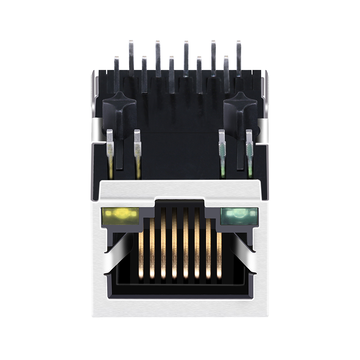

LPJ0190HENL RJ45 PoE Magjack 10P8C 10/100 Base-T Tab Down Green/Yellow Led

Product summary

Product
LPJ0190HENL RJ45 PoE Magjack 10P8C 10/100 Base-T Tab Down Green/Yellow Led
SKU
142574
P/N
LPJ0190HENL
Price
$ 5.29
Stock
950 in Stock
Sold
10.9K
Unit price $ 5.29
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0190HENLSKU: 142574

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJ0190HENL
Volume pricing Online tiers · larger qty or custom price on request
$ 5.290
1–99 pcs
$ 4.339
100–599 pcs
$ 3.810
600–1,199 pcs
$ 2.910
1,200–5,999 pcs
$ 2.487
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
950 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 5.29
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

10/100 Base-T RJ45 POE Magjack for Smart Meters and Satellite (Rectifier Diode, POE, 1 Port, Tab Down, Green/Yellow Led)


The LPJ0190HENL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJ0190HENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0 TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
Rectifier DiodeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0190HENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The operating range is 0℃ to 70℃ for this part. A loaded port warms the transformer more than an idle one. Measure at the body rather than at the cabinet inlet. Leave margin if the enclosure has no airflow. by LINK-PP Technical Support
  • A:
    The tap is on the jack side, so the supply can come from either end of the link. What matters is that the pairs are the ones the tap sits on. The drawing shows which contacts those are. by LINK-PP Technical Support
  • A:
    The package height stays at 13.40 mm. The tap is an extra winding inside the same transformer stack. Width is 15.90 mm across the front face. That is the same envelope as the non PoE version of this jack. by LINK-PP Technical Support
  • A:
    An empty port draws nothing through the tap. The contacts sit open and the lamps stay dark. The body has no tabs, so the front face is plain apart from the lamp window. That is what we see on a bench supply. by LINK-PP Technical Support
  • A:
    The transformer has 4 cores per port with a supply tap on the spare pairs. That is the usual arrangement for a 10/100 PoE magjack. The 10p8c contacts bring the taps out to the board. by LINK-PP Technical Support

Customer Reviews

  • 5

    93 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (93)
No data
C***n
Verified Purchase
5.0
2026-11-14
The rectifier diode sits on the board. Every contact read through first try.
H***t
Verified Purchase
5.0
2026-07-11
Tails reach 21.30 mm behind the mouth, so the diode and the winding both clear our rail. Nothing had to move on the board. It took the wave first try. :-)
R***o
Verified Purchase
5.0
2025-12-15
Body stands 13.40 mm high and 15.90 mm across, the same envelope as the unpowered jack we retired, so the cutout stayed. Three hundred out. No surprises on the footprint.
M***n
Verified Purchase
5.0
2025-08-25
LPJ0190HENL, powered magjack. It matched the drawing on every pair.
D***m
Verified Purchase
5.0
2024-12-30
Ten contacts, four cores, clip down, no fingers. It has been in service since the pilot.
