LPJ0049CNL 10 100 base-t poe rj45 connector single port tab down without led

LPJ0049CNL 10/100 Base-T POE RJ45 connector Single Port Tab Down Without Led

Product summary

Product
LPJ0049CNL 10/100 Base-T POE RJ45 connector Single Port Tab Down Without Led
SKU
169504
P/N
LPJ0049CNL
Price
$ 4.32
Stock
5250 in Stock
Sold
721
Unit price $ 4.32
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0049CNLSKU: 169504

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
LPJ0049CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.320
1–99 pcs
$ 3.543
100–599 pcs
$ 3.111
600–1,199 pcs
$ 2.377
1,200–5,999 pcs
$ 2.031
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
5250 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.32
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

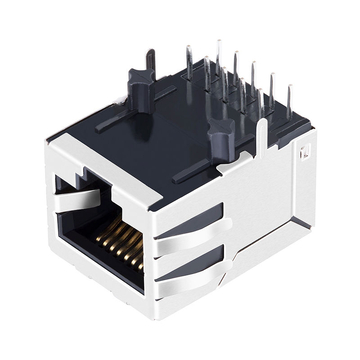

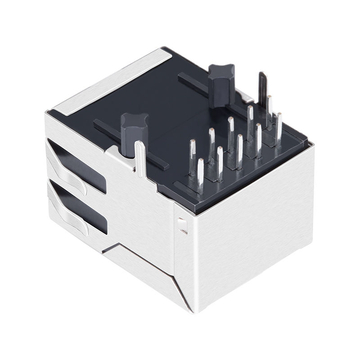

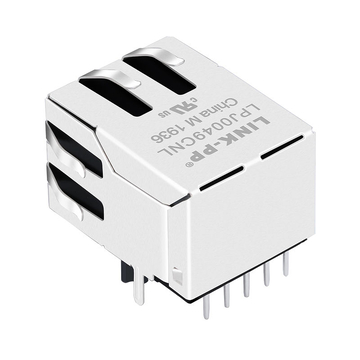

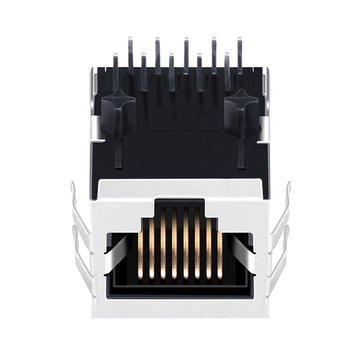

LINK-PP LPJ0049CNL 10/100 Base-T POE RJ45 connector for Game Controller and Solar Inverter ( Rectifier Bridge, Single Port, Tab Down, Without Led)


The LPJ0049CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Set-top Box and Intercom.


LINK-PP Part Number:
LPJ0049CNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
6
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

0 TO 70℃

Bst Circuit
YESAutomDX

YES

Diodes
Rectifier BridgeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJ0049CNL Drawing LPJ0049CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    In af the spare pair 4/5 and 7/8 carry the DC, and the signal pairs stay for data. The bridge then feeds the PD from those two spare cores. Two of the 6 cores in this part are wired for that duty. by LINK-PP Technical Support
  • A:
    The winding and the bridge are rated for af, so at levels will run hot here. A switch that offers at will still negotiate down to af, which is safe. Do not force at through this body without checking the current path. by LINK-PP Technical Support
  • A:
    Two pairs carry the data and the spare pair carries the DC current to the PD. That third pair is the 2 extra cores this part adds. Without them the power would have to ride on the signal pairs. by LINK-PP Technical Support
  • A:
    It lets the jack accept power on either polarity, so a crossed pair still feeds the load. The 4 diodes sit in the bridge and drop a little voltage. That drop is why the part suits 802.3af levels, not higher. by LINK-PP Technical Support
  • A:
    ONLINE (TRADE INSURANCE),VISA,T/T,Western union,MoneyGram. by LINK-PP Technical Support
