LPJ1202BHNL 10 100 base-t single port rj45 ethernet connector tab up green yellow led
Click to open expanded view

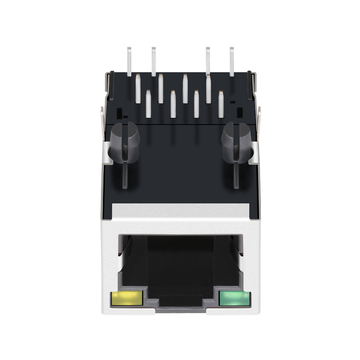

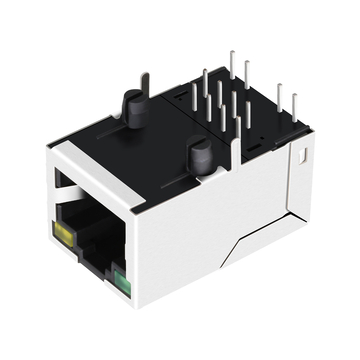

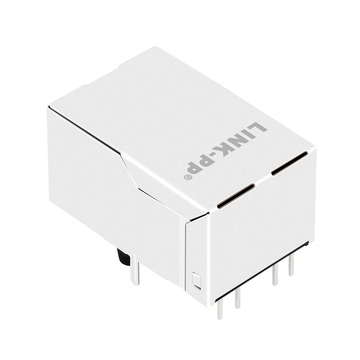

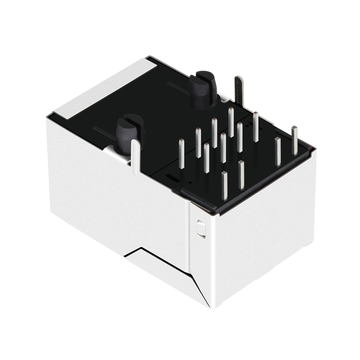

LPJ1202BHNL 10/100 Base-T Single Port RJ45 Ethernet Connector Tab Up Green/Yellow Led

Product summary

Product
LPJ1202BHNL 10/100 Base-T Single Port RJ45 Ethernet Connector Tab Up Green/Yellow Led
SKU
184985
P/N
LPJ1202BHNL
Price
$ 3.09
Stock
2900 in Stock
Sold
9.1K
Unit price $ 3.09
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ1202BHNLSKU: 184985

LINK-PP original

Compatible:
LINK-PP
Other
Compatible P/N:
LPJ1202BHNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.090
1–99 pcs
$ 2.531
100–599 pcs
$ 2.222
600–1,199 pcs
$ 1.697
1,200–5,999 pcs
$ 1.450
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.09
Packaging Details
50 pcs
1000 pcs
Tray
32×30×31 cm
0.009 kg
8.5 kg

LINK-PP LPJ1202BHNL 10/100 Base-T Shielded RJ45 Ethernet Connector for Smart Camera and Game Controller (Single Port, Tab Up, Green/Yellow Led)


The LPJ1202BHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.


LINK-PP Part Number
LPJ1202BHNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NON PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.000/25.40

Package Width (Inches)
0.640/16.25Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It sets the common mode reference on the cable side of the magnetics, and without it a link can come up and then drop under load, especially with a long lead attached. Keep the network the vendor specifies close to the part and do not let a cost review delete it. This jack also has no internal diodes, so add a transient clamp on the cable side if the lead leaves the building. by LINK-PP Technical Support
  • A:
    Not on its own. The tabs bond the shell to a metal panel, so they matter when the enclosure is metal and the panel carries the shield. On a plastic case there is nothing to bond to and the plain body is the sensible choice. Emissions then depend on the board, the magnetics and the cable dressing. If your enclosure is metal, order the shielded version of the same jack instead of trying to add a bond afterwards. by LINK-PP Technical Support
  • A:
    It describes where the latch sits relative to the board. With the latch up the cable enters from above and the pins sit underneath, which suits a case where the port is at the top of a front panel. Latch down puts the cable below. The right answer comes from the mechanical drawing rather than the electrical one, and the two versions stop being interchangeable once the cutout and the board height are fixed. by LINK-PP Technical Support
  • A:
    No. The listing describes a data port, and this part carries nothing to the cable side beyond the signal pairs, with no centre tap feed and no current rating for a powered load. The same footprint exists in versions built for that job and they carry different part numbers. If a camera or an access point needs feeding, order the powered version and check the magnetics and the pin current rating before you commit the board. by LINK-PP Technical Support

Customer Reviews

  • 5

    48 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (48)
No data
H***t
Indonesia
Verified Purchase
5.0
2026-11-07
Bootstrap circuit present and no diodes, so the common mode reference is set on the jack side and transient clamping is left to the board. That is a decision rather than an omission, and it wants a clamp behind the part.
E***d
Israel
Verified Purchase
5.0
2026-10-09
The body is thirteen point five by sixteen point two five millimetres in FR4, small enough that two fit behind a double gang plate with room left for the magnetics.
A***i
South Africa
Verified Purchase
5.0
2026-09-09
Latch up versus latch down is the first thing to check against a mechanical drawing. Ours sits on a board that slides into a chassis from the front, so the cable plugs from above and the latch faces the same way as the bevel. Get it wrong and the assembly still works on the bench and will not go into the field.
E***k
Canada
Verified Purchase
5.0
2026-08-11
Green and yellow LEDs, link and activity, colours fixed by the part.
D***k
Finland
Verified Purchase
5.0
2026-07-12
No diodes means no clamp inside the jack, so a surge on the cable side reaches whatever the board provides. On an indoor product that is fine and saves cost. On anything with a lead that leaves the building, add the clamp yourself.
