we 74982104400 compatible lpj16657b4nlv 100mbps poe rj45 modular jack with transformer tab up yellow&green yellow&green led
Click to open expanded view

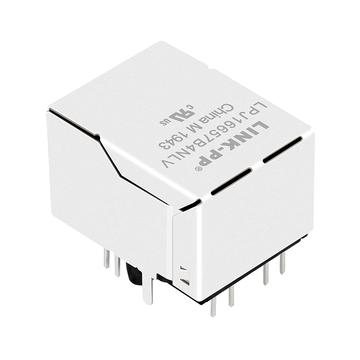

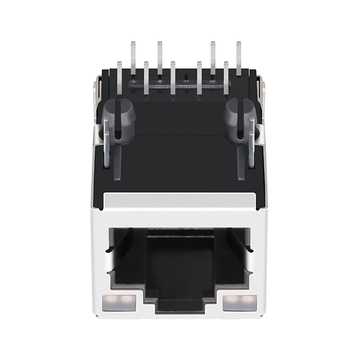

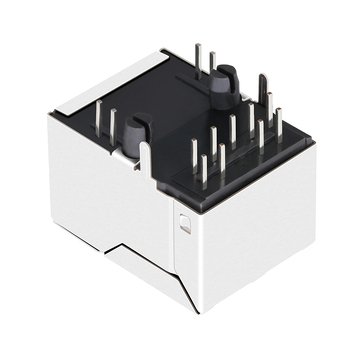

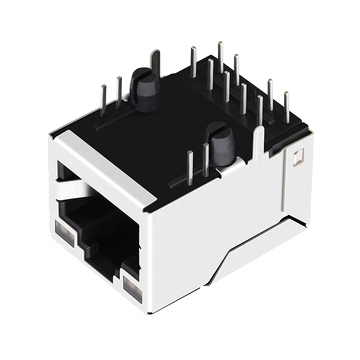

WE 74982104400 Compatible LPJ16657B4NLV 100Mbps POE RJ45 Modular Jack With Transformer Tab Up Yellow&Green/Yellow&Green Led

Product summary

Product
WE 74982104400 Compatible LPJ16657B4NLV 100Mbps POE RJ45 Modular Jack With Transformer Tab Up Yellow&Green/Yellow&Green Led
SKU
175915
P/N
LPJ16657B4NLV
Price
$ 2.87
Stock
2990 in Stock
Sold
5.7K
Unit price $ 2.87
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ16657B4NLVSKU: 175915

Compatible with WE 74982104400DatasheetAll downloads

Compatible:
WE
LINK-PP
Compatible P/N:
74982104400
Volume pricing Online tiers · larger qty or custom price on request
$ 2.870
1–99 pcs
$ 2.355
100–599 pcs
$ 2.068
600–1,199 pcs
$ 1.580
1,200–5,999 pcs
$ 1.350
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2990 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.87
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

WE 74982104400 Compatible LINK-PP LPJ16657B4NLV 100Mbps POE RJ45 Modular Jack With Transformer(1x1 Port,Tab Up, Yellow&Green/Yellow&Green Led,POE)


LINK-PP Part Number:
LPJ16657B4NLV
WE Part Number
74982104400
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
9p8c (RJ45, Ethernet) Application-Lan
Ethernet( PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow&Green/Yellow&Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.628/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ16657B4NLV.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The opening has to sit at the board edge with enough free space in front for a plug body and its strain relief, and the tab up latch needs room above the housing for a finger to press it. Measure from the mechanical drawing rather than the outline in the layout library, then check the panel thickness against the latch travel with a paper mock up. A cable that hangs downward puts steady load on the contacts, so allow a bend radius and a tie point nearby. by LINK-PP Technical Support
  • A:
    A housing without spring fingers cannot make its own contact with a metal bezel, so the earth route has to be drawn into the schematic deliberately. On our board the shield lands went to a chassis pad beside the jack, with the surge parts between that pad and the PHY. A plastic front is fine for a short indoor cable run, but a long outdoor one benefits from a bonded surround. Test both builds for radiated noise before fixing the bill of materials. by LINK-PP Technical Support
  • A:
    Four lamps on a single port usually split into a link or speed indicator and an activity indicator on each side, but the mapping follows the PHY pins rather than a fixed rule. Map each lamp lead back to its PHY pin and fix the common rail before the board is released. A bicolour emitter wired backwards gives a display that looks plausible until traffic starts. Write the expected behaviour on the silkscreen. by LINK-PP Technical Support
  • A:
    The power pairs arrive on the centre taps of the two used differential pairs, and this housing has no internal diode bridge, so the board has to provide the rectification and the PSE interface itself. Size the tap traces from the current the powered device will draw, and leave margin in the copper before routing. A fast ethernet link uses only two pairs, which leaves the other pins free for the supply path. Log the case temperature once the load has settled. by LINK-PP Technical Support

Customer Reviews

  • 5

    89 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (89)
No data
T***n
Verified Purchase
5.0
2026-11-15
15.95 mm wide, 13.45 mm tall, fits the lid. The panel cut needed no filing, no fuss.
J***n
Verified Purchase
5.0
2026-07-27
No shield fingers, so the ground runs to the board plane through both side legs. 7 cameras built, insulation read clean. Nothing to report. =)
M***n
Verified Purchase
5.0
2023-12-20
9p8c body takes a standard 8p8c plug. The pin out was as advertised.
M***a
Indonesia
Verified Purchase
5.0
2023-09-01
Just received my order today and it is exactly what I wanted!
M***w
Taiwan, Province of China
Verified Purchase
5.0
2023-08-15
Purchase it just because of the low price. But a little surprised when receiver it. Not bad.
