Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
92754

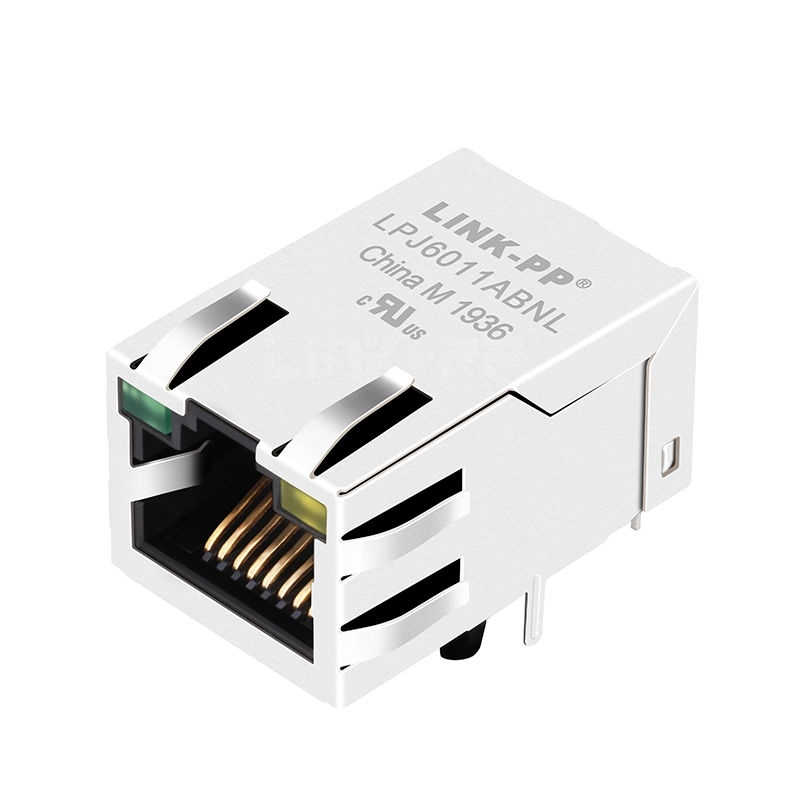

Pulse JXR1-0011NL Compatible LINK-PP LPJ6011ABNL 10/100 Base-T Tab Up Green/Yellow Led Single Port 8P8C RJ 45 Connector

Pulse JXR1-0011NL Compatible LINK-PP LPJ6011ABNL 10/100 Base-T Tab Up Green/Yellow Led Single Port 8P8C RJ 45 Connector

#92754
For Order Over $300 Get $10.00 Off, Code:
January
For First Order Over $100 Get $5.00 Off, Code:
First

Pulse JXR1-0011NL Compatible LINK-PP LPJ6011ABNL 10/100 Base-T Tab Up Green/Yellow Led Single Port 8P8C RJ 45 Connector

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
10 Reviews
0 Questions
Request Stock
8.1K Sold
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )
Free shipping over $600
Qty (pcs) :
Unit Price :
1
$ 2.734
100
$ 2.242
600
$ 1.969
1200
$ 1.504
6000
$ 1.285
Manufacture: LINK-PP
P/N: LPJ6011ABNL
Compatible:
Pulse
XFMRC
Competitor P/N:
JXR1-0011NL
JXR1-0011NLT
L/T(In stock):
5-7 days
L/T(out of stock):
4-6 weeks
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
To Be Negotiated
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.total }}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.009kg
Tray
50pcs
1000pcs
32*30*31cm
8.75kg
Add to wish

Pulse JXR1-0011NL Compatible LINK-PP LPJ6011ABNL 10/100 Base-T 8P8C RJ 45 Connector for Industrial PC and Fieldbus System (Single Port, Tab Up, Green/Yellow Led)


The LPJ6011ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
 LPJ6011ABNL Pulse Part Number JXR1-0011NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. 8P8C RJ 45 Connector

Matching Products
Pictures ID# Description Price Stock Add to Cart

Download

LPJ6011ABNL Drawing
