pulse j0024d21bnl compatible link-pp lpj0024abnl 10 100 base-t tab down green yellow led one port rj45 connector socket

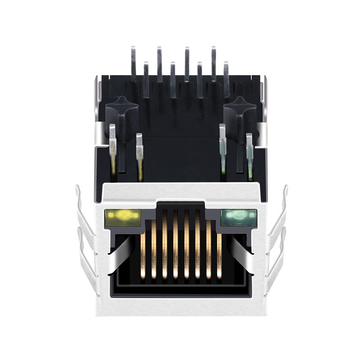

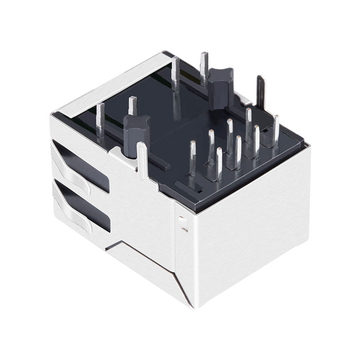

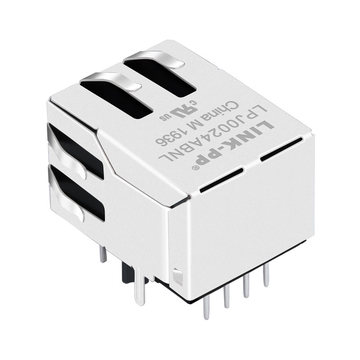

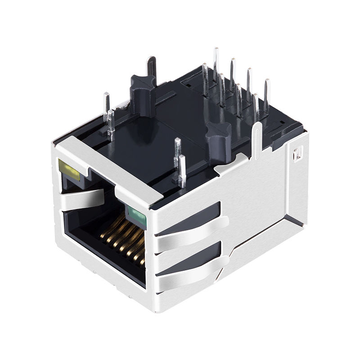

Pulse J0024D21BNL Compatible LINK-PP LPJ0024ABNL 10/100 Base-T Tab Down Green/Yellow Led One Port RJ45 Connector Socket

Product summary

Product
Pulse J0024D21BNL Compatible LINK-PP LPJ0024ABNL 10/100 Base-T Tab Down Green/Yellow Led One Port RJ45 Connector Socket
SKU
137379
P/N
LPJ0024ABNL
Price
$ 2.82
Stock
4518 in Stock
Sold
1.9K
Unit price $ 2.82
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0024ABNLSKU: 137379

Compatible with Pulse J0024D21BNLDatasheet3D ModelAll downloads

Compatible P/N:
J0024D21B
J0024D21BNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.820
1–99 pcs
$ 2.314
100–599 pcs
$ 2.032
600–1,199 pcs
$ 1.552
1,200–5,999 pcs
$ 1.326
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
4518 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.82
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Pulse J0024D21BNL Compatible LINK-PP LPJ0024ABNL 10/100 Base-T RJ45 Connector Socket for Switches and Entrance Guard System(One Port, Tab Down, Green/Yellow Led)


The LPJ0024ABNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, Ethernet Control, Server and Embedded Main Board.


Product Specification

LINK-PP Part Number:
LPJ0024ABNL Pulse Part Number J0024D21BNL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.30Package Length (Inches/mm)

0.839/21.25

Package Width (Inches/mm)
0.626/15.93Temperature

0 TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ0024ABNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Ours sits near 30℃ in summer, well inside the 0℃ to 70℃ window. The cabinet fan keeps the corner by the drive cooler than the sheet. A cold bay would be the case to check before you buy. For our shop this range was plenty. by LINK-PP Technical Support
  • A:
    The latch sits under the mouth, so vibration pushes the shell wall. Our press shakes hard during a stroke and no plug has walked out. Gold plating was the 15 micro inch option for us. Three years on that line and the ports still pass. by LINK-PP Technical Support
  • A:
    Green is link and yellow blinks on traffic for this part. Our electrician reads the pair without a meter. The labels sit inside the cabinet door, so the meaning travels with the machine. It has saved us a few callouts. by LINK-PP Technical Support
  • A:
    The press drive throws a lot of noise at that panel. A shielded shell with tabs bonded at the cutout kept our link clean. We scanned the cable run twice and saw nothing above the floor. Forty cabinets out, no dropouts. by LINK-PP Technical Support

Customer Reviews

  • 5

    87 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (87)
No data
A***n
Verified Purchase
4.0
2026-11-15
One carton arrived with a torn flap, but all 10 jacks were straight. The link trained on the first plug and the tabs gripped the plate. No fuss getting them onto the line.
A***n
Verified Purchase
5.0
2026-07-18
Latch down holds the plug under the plate. The length matched the sheet.
U***l
Belgium
Verified Purchase
5.0
2026-03-13
The industrial label is why we tried this body on the line side cabinet. It is 13.30 mm tall on a 15.93 mm face, so the existing cutout still fits. 4 cores carry both pairs and the winding sits inside the shell. 10 cabinets built and every port trained at 100 megabit, good.
C***o
Verified Purchase
5.0
2025-10-22
Through hole tails took solder cleanly on one pass. The press fit held up square.
D***d
Verified Purchase
5.0
2025-07-06
13.30 mm tall on a 15.93 mm face. It cleared the chassis wall as expected.
