pulse jxd1-0007nl compatible link-pp lpj16698a10nl 10 100 base-t tab up yellow green led single port poe ethernet connector rj45 modules

Pulse JXD1-0007NL Compatible LINK-PP LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules

Product summary

Product
Pulse JXD1-0007NL Compatible LINK-PP LPJ16698A10NL 10/100 Base-T Tab Up Yellow/Green Led Single Port POE Ethernet Connector RJ45 Modules
SKU
139086
P/N
LPJ16698A10NL
Price
$ 2.65
Stock
2800 in Stock
Sold
990
Unit price $ 2.65
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ16698A10NLSKU: 139086

Compatible with Pulse JXD1-0007NLDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
JXD1-0007NL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.650
1–99 pcs
$ 2.170
100–599 pcs
$ 1.905
600–1,199 pcs
$ 1.455
1,200–5,999 pcs
$ 1.244
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2800 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.65
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

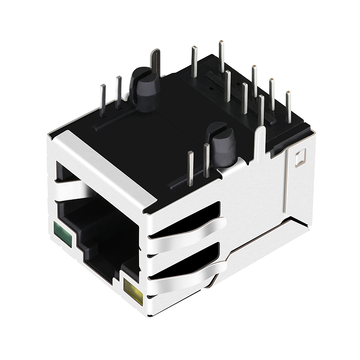

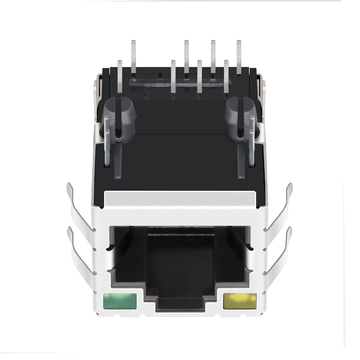

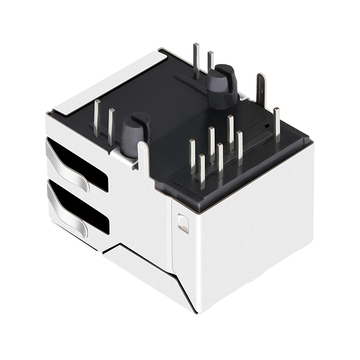

Pulse JXD1-0007NL Compatible LINK-PP LPJ16698A10NL 10/100 Base-T POE Ethernet Connector RJ45 Modules for Industrial PC and Fieldbus System (POE, Single Port, Tab Up, Yellow/Green Led)


The LPJ16698A10NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number:
LPJ16698A10NL Pulse Part Number JXD1-0007NL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches)
0.628/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
Rectifier DiodeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ16698A10NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Tab Up means the release latch faces upward, so leave finger access above the opening when the board is mounted vertically. In our enclosure the shelf above was close enough that we rerouted the cable bundle to keep the latch reachable. The ninety degree orientation keeps the plug parallel to the board, which suits a front panel exit. Check the mechanical drawing for the exact height above the PCB before you fix the chassis standoff positions. by LINK-PP Technical Support
  • A:
    The two lamps are wired to the host side, so their meaning follows your PHY and firmware rather than the jack itself. We assigned green to link and yellow to activity, printed that legend on the bezel and verified the polarity on the first article with a known good link. If your board drives them from a different supply rail, check the series resistors before assembly. The Tab Up shell puts both windows on the same face as the latch. by LINK-PP Technical Support
  • A:
    The rating is for the connector, not for the whole thermal design, so treat the enclosure as a separate question. We measured the body temperature with the maximum load applied for two hours and used that number to decide whether a vent was needed. Cable gauge and ambient temperature both shift the result, so a short bench test with the real harness is more useful than the datasheet figure alone. If the box is sealed, leave copper area around the pins. by LINK-PP Technical Support
  • A:
    The rectifier diode inside the jack accepts power from either pair polarity and presents a single output at the centre tap, which removes the need for a bridge on the board. That saves a few parts and one diode drop in the path. We still checked the PSE budget before deployment, because the diode and the magnetics both dissipate something under full load. On a warm shelf the jack body was noticeably warmer than a non powered neighbour, so airflow is worth allowing for. by LINK-PP Technical Support
