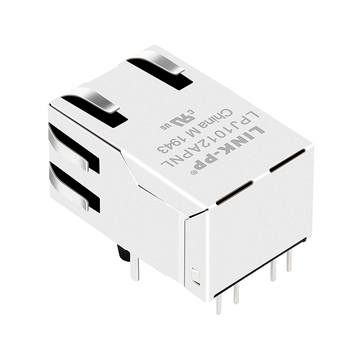

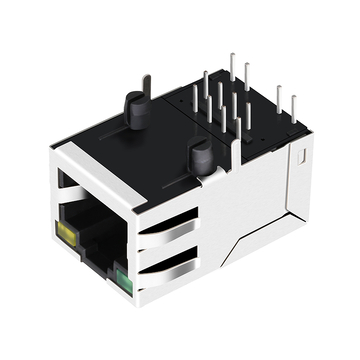

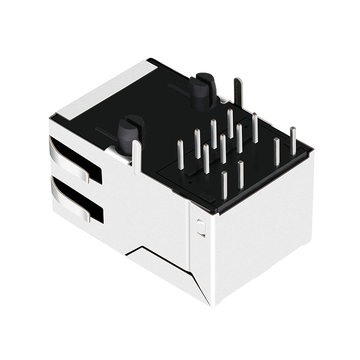

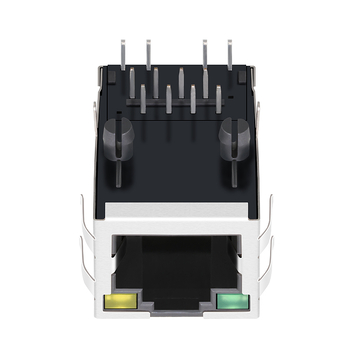

Pulse J1012F21RNL Compatible LINK-PP LPJ1012APNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Cat5e Jack RJ 45 Connectors

Product summary

Product
Pulse J1012F21RNL Compatible LINK-PP LPJ1012APNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Cat5e Jack RJ 45 Connectors
SKU
142576
P/N
LPJ1012APNL
Price
$ 2.47
Stock
6100 in Stock
Sold
30.6K
Unit price $ 2.47
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ1012APNLSKU: 142576

Compatible with Pulse J1012F21RNLDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
J1012F21R
J1012F21RNL
Volume pricing Online tiers · larger qty or custom price on request
$ 2.470
1–99 pcs
$ 2.025
100–599 pcs
$ 1.778
600–1,199 pcs
$ 1.358
1,200–5,999 pcs
$ 1.160
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
6100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 2.47
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg

Pulse J1012F21RNL Compatible LINK-PP LPJ1012APNL 10/100 Base-T Cat5e Jack RJ 45 Connectors (Single Port, Tab Up, Green/Yellow Led )


The LPJ1012APNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Entrance Guard System.


LINK-PP Part Number:
LPJ1012APNL Pulse Part Number J1012F21RNL
Part Status
Active Connector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJ1012APNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The mating area comes plated at 6u, 15u or 30u inch. Pick 30u inch for a port where the plug comes and goes daily. A 6u part is fine on a link that is set once and left alone. by LINK-PP Technical Support
  • A:
    Four cores, one pair for transmit and one for receive. The other 4 blades in the 8p8c mouth sit unused on a 10/100 link. They still center the plug, which matters more than people think. Our bench unit locked on the first plug. by LINK-PP Technical Support
  • A:
    Cat5e covers 100 Base-T with room to spare, and this body is rated for that speed. The 4 cores carry both pairs, so no spare legs are left for anything else. Step up to a Cat6 part only if the same cable also runs gigabit. by LINK-PP Technical Support
  • A:
    Yes,we are pleased to supply samples to test and check quality. free samples is also acceptable. by LINK-PP Technical Support

Customer Reviews

  • 5

    47 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (47)
No data
D***y
Poland
Verified Purchase
5.0
2026-05-31
Plating read even across the tray with no bright spots at the lead in, well made =)
X***e
Verified Purchase
5.0
2025-07-27
Shield tabs bit into the chassis lip, and our emissions scan came back totally quiet. It matched the drawing on the keepout.
J***n
Verified Purchase
5.0
2024-07-24
Green and yellow lamps sit abreast on the face. The latch cleared the bezel first try.
D***t
Saudi Arabia
Verified Purchase
4.0
2023-12-31
The bag was unlabeled, though the LPJ1012APNL bodies were the right part. Tab up clicked home and the green lamp lit on link. Good value.
M***l
Morocco
Verified Purchase
5.0
2023-02-05
I really like your news room, and can get mnay surprising news. Such as holiday sale of hotselling products,free shipping notice and so on. Of coursse, I like your products as well, all of them are with high quality and resonable price, looking forward to more cooperation with Link-pp.
