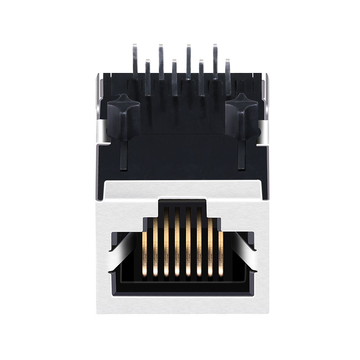

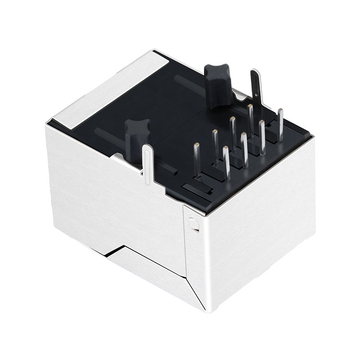

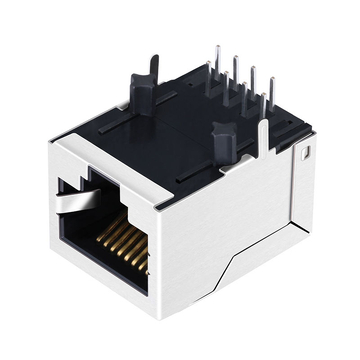

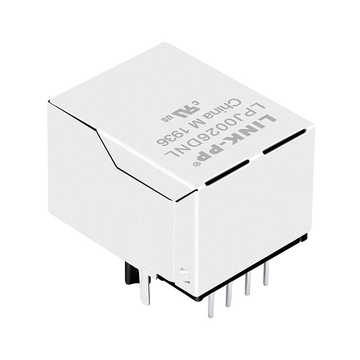

Pulse J0026D01NL Compatible LINK-PP LPJ0026DNL 10/100 Base-T Tab Down Without Led 1 Port Registered Jack RJ 45 Connectors

Name: Pulse J0026D01NL Compatible LINK-PP LPJ0026DNL 10/100 Base-T Tab Down Without Led 1 Port Registered Jack RJ 45 Connectors
Brand: LINK-PP
SKU: 117834
Price: 1.04 USD
Availability: InStock
Rating: 5 (4 reviews)

Product: Pulse J0026D01NL Compatible LINK-PP LPJ0026DNL 10/100 Base-T Tab Down Without Led 1 Port Registered Jack RJ 45 Connectors
SKU: 117834
P/N: LPJ0026DNL
Price: $ 2.207
Stock: 1007 in Stock
Sold: 11.2K
Product URL: https://www.l-p.com/products/432756.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

4 Reviews

0 Questions

11.2K Sold

$ 2.207

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 2.207

100

$ 1.81

600

$ 1.59

1200

$ 1.214

6000

$ 1.038

Manufacture: LINK-PP P/N: LPJ0026DNL SKU: 117834

Compatible:: LINK-PP; Hanrun; Pulse

Compatible P/N:: J0026D01; J0026D01NL

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

1007 in Stock .

Quantity:

Total Price:

$ 2.207

Packaging Details:

N.W/pcs: 0.007kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W/carton: 8.5kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Pulse J0026D01NL Compatible LINK-PP LPJ0026DNL 10/100 Base-T Registered Jack RJ 45 Connectors with Magnetics for Fieldbus System and Game Controller (1 Port, Tab Down, Without Led)

The LPJ0026DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Digital Camera and Game Controller.

LINK-PP Part Number:	LPJ0026DNL	Pulse Part Number	J0026D01NL
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	5
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.528/13.40	Package Length (Inches/mm)	0.839/21.30
Package Width (Inches/mm)	0.626/15.90	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Female Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJ0026DNL-Drawing.pdf Download
