pulse jkm-0011nl 100 base-t rj45 connector with integrated magnetics without led tab down

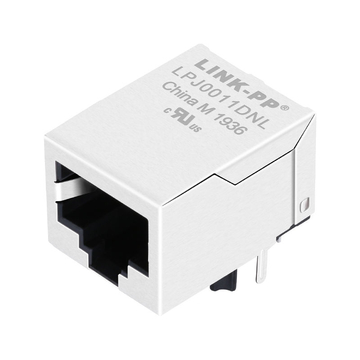

Pulse JKM-0011NL 100 Base-T rj45 connector with integrated magnetics Without Led Tab Down

Product summary

Product
Pulse JKM-0011NL 100 Base-T rj45 connector with integrated magnetics Without Led Tab Down
SKU
88949
P/N
LPJ0011DNL
Price
$ 1.94
Stock
10628 in Stock
Sold
570.2K
Product URL
https://www.l-p.com/products/432728.htm
215 Reviews
1 Questions
570.2KSold
Unit price $ 1.94
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJ0011DNLSKU: 88949

Compatible with Pulse JKM-0011NLDatasheet3D ModelAll downloads

Compatible:
Pulse
Halo
Belfuse
WE
Bothhand
Hanrun
LINK-PP
Compatible P/N:
J00-0014NL
J00005NL
J0011D01
J0011D01NL
JKM-0011NL
Volume pricing Online tiers · larger qty or custom price on request
$ 1.940
1–99 pcs
$ 1.591
100–599 pcs
$ 1.397
600–1,199 pcs
$ 1.067
1,200–5,999 pcs
$ 0.912
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
10628 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 1.94
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.007 kg
8.5 kg
Add to wish Compare

Pulse JKM-0011NL Compatible LINK-PP LPJ0011DNL 10/100 Base-T Ethernet RJ45 Connector Modules for Smart Home and Smart Meters (1x1 Port, Without Led, Tab Down)


The LPJ0011DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, Smart Meters, hub and switches.


Product Specification

LINK-PP Part Number:
 LPJ0011DNL Pulse Part Number JKM-0011NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

  1. Pulse JKM-0011NL
  2. rj45 connector with integrated magnetics

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download
3D Files LPJ0011DNL.3d_stp.zip
3D Files LPJ0011DNL.glb
