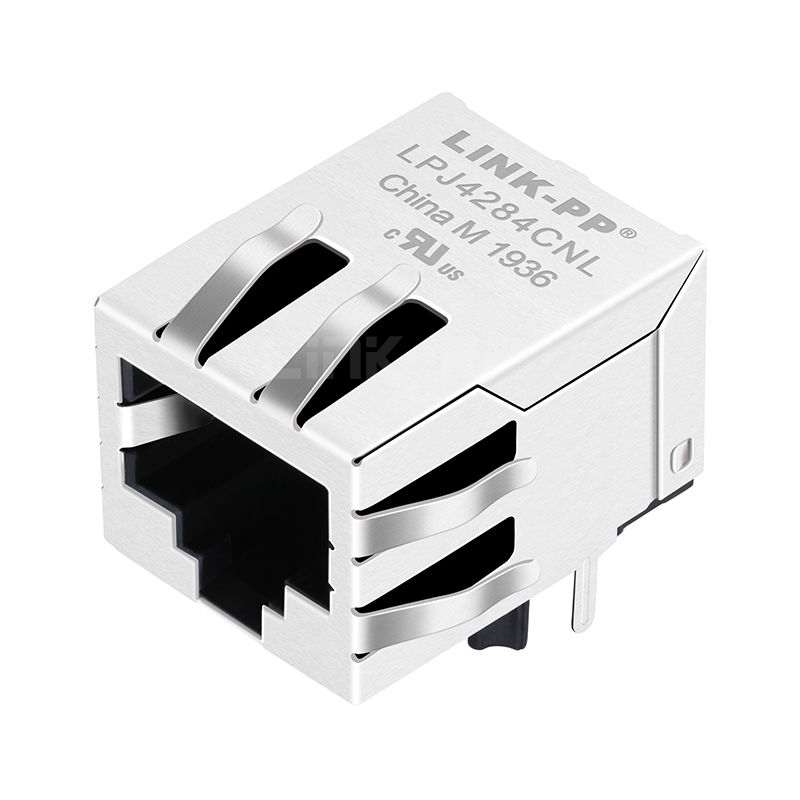

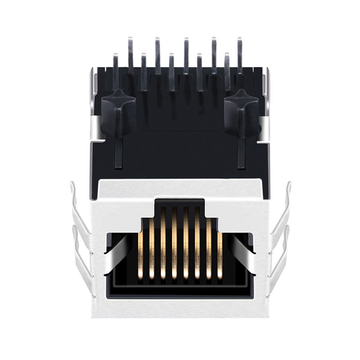

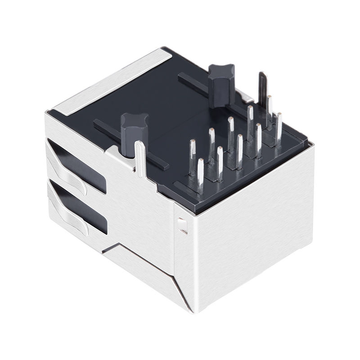

RJP-003TC1 Compatible LINK-PP LPJ4284CNL 10/100 Base-T POE Connector RJ45 Magnetics Jack With Rectifier Diode One Port Tab Down Without Led

RJP-003TC1 Compatible LINK-PP LPJ4284CNL 10/100 Base-T POE Connector RJ45 Magnetics Jack With Rectifier Diode One Port Tab Down Without Led

#88887
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

RJP-003TC1 Compatible LINK-PP LPJ4284CNL 10/100 Base-T POE Connector RJ45 Magnetics Jack With Rectifier Diode One Port Tab Down Without Led

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
11 Reviews
3 Questions
Request Stock
18.2K Sold
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 3.527
100
$ 2.893
600
$ 2.54
1200
$ 1.94
6000
$ 1.658
Manufacture: LINK-PP
P/N: LPJ4284CNL
Compatible:
LINK-PP
Amphenol
Competitor P/N:
RJP-003TC1
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
To Be Negotiated
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details
Stock:
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
undeliverable
Total Price:
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.total }}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

RJP-003TC1 Compatible LINK-PP LPJ4284CNL 10/100 Base-T POE Connectors RJ45 Magnetics Jacks for Video Recorder and Media Player (Rectifier Diode, POE, One Port, Tab Down, Without Led)


The LPJ4284CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Set-top Box and Intercom.


LINK-PP Part Number:
 LPJ4284CNL Amphenol Part Number RJP-003TC1
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

-40 TO +85℃

Bst Circuit
YESAutomDX

YES

Diodes
Rectifier DiodeContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. with-tvs-and-diode-rj45-connector
  2. poe-rj45-connector
