Rated only zero to seventy — can this jack live in an unheated outdoor cabinet?

Not comfortably. The commercial winding and the moulding are screened for the narrower band, and a cabinet that dips below freezing will see the compound stiffen and the plating work harder. If the enclosure is outdoors or unheated, take the industrial version of the same body instead; we build it with a wider rated winding and a different compound.

The shell has EMI tabs but my plate is powder coated — how do I bond them?

Mask a bare land on the inside of the plate where the tabs land, and keep the powder off the mating face, because a coated surface is an insulator at these frequencies. If the plate cannot be masked, add a conductive gasket or a spring finger from the board. Prove it with a milliohm reading from shell to chassis at first article.

The latch is underneath — how does that change the opening in my faceplate?

You need the cutout to run a little below the mouth so a thumb can press the release, and the cord then leaves downward, which usually suits a wall box or a low shelf. Check the plate thickness against the release travel: a thick extrusion eats the finger room, and an opening cut exactly to the nose will hold the plug captive.

The part ships without any emitter — what is the usual way to indicate link and activity?

Most integrators put two board emitters behind the shell and bring their light out through pipes in the bezel, then drive them from the PHY exactly as if the jack had lenses. Fix the pipe exits before you place the emitters, and keep the pipe mouths clear of the plug travel so a cord cannot clip them on the way in.

Breadcrumb: Home; Products; Integrated RJ45 Connector; Single Port RJ45 Connector; 10/100 Base-T RJ45 Connector; 117789

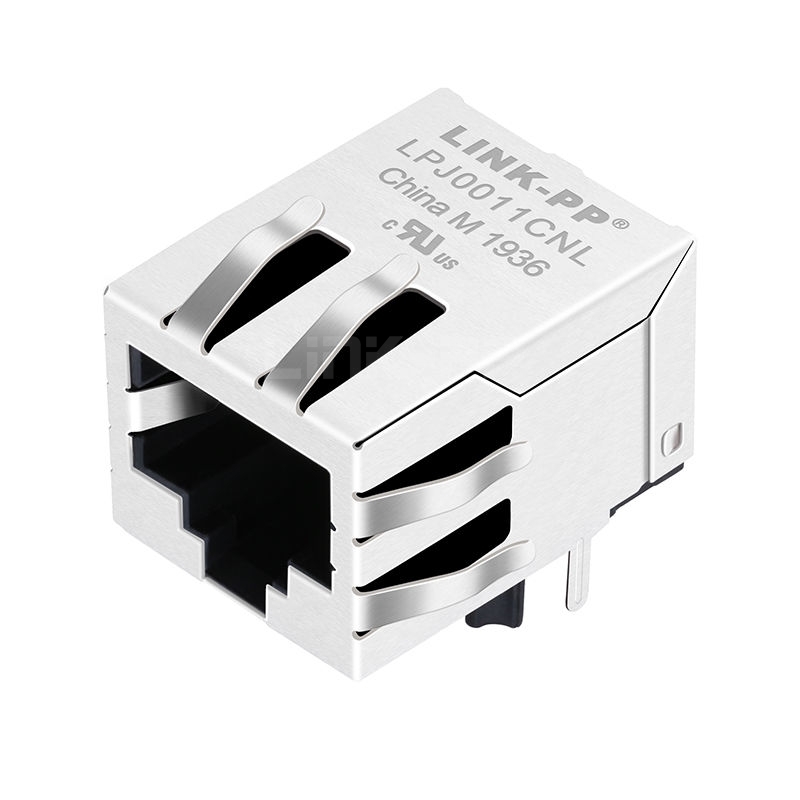

WE MIC24010-5104T-LF3 Compatible LINK-PP LPJ0011CNL 100 Base-T RJ45 Ethernet MagJack Tab Down Without Led

Name: WE MIC24010-5104T-LF3 Compatible LINK-PP LPJ0011CNL 100 Base-T RJ45 Ethernet MagJack Tab Down Without Led
Brand: LINK-PP
SKU: 117789
Price: 1.94 USD
Availability: InStock
Rating: 5 (80 reviews)

Product: WE MIC24010-5104T-LF3 Compatible LINK-PP LPJ0011CNL 100 Base-T RJ45 Ethernet MagJack Tab Down Without Led
SKU: 117789
P/N: LPJ0011CNL
Price: $ 1.94
Stock: 1462 in Stock
Sold: 36.8K
Product URL: https://www.l-p.com/products/432595.htm

80 Reviews

4 Questions

36.8KSold

Unit price $ 1.94

New Users: $ 10.00 Coupon on Your First Order

Code linkpp2610

For Order Over $ 1,000.00 Get $ 15.00 Off

Code Linkpp15

For Order Over $ 3,000.00 Get $ 50.00 Off

Code Linkpp50

For Order Over $ 5,000.00 Get $ 100.00 Off

Code Linkpp100

Manufacture: LINK-PPP/N: LPJ0011CNLSKU: 117789

Compatible with WE MIC24010-5104T-LF33D Model All downloads

Compatible:: LINK-PP; Belfuse; Centralcm; Halo; Pulse; WE; X Multiple; Other

Compatible P/N:: MIC24010-0104T-LF3; MIC24010-5104; MIC24010-5104T-LF3

Volume pricing Online tiers · larger qty or custom price on request

$ 1.940

1–99 pcs

$ 1.591

100–599 pcs

$ 1.397

600–1,199 pcs

$ 1.067

1,200–5,999 pcs

$ 0.912

≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:

1462 in Stock

Shipping:

$ 29.47

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Free shipping over $ 600.00.

Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).

Quantity:

SPQ 50

Total Price:

$ 1.94

Packaging Details

SPQ:50 pcs
Qty/carton:1200 pcs
Package:Tray
Carton size:32×30×31 cm
N.W/pcs:0.007 kg
G.W/carton:8.5 kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

WE MIC24010-5104T-LF3 Compatible LINK-PP LPJ0011CNL 10/100 Base-T RJ45 Ethernet MagJack for Automation and Solar Inverter (1x1 Port, Tab Down, Green/Yellow Led)

The LPJ0011CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Fieldbus System, Embedded Main Board, New Energy and Solar Inverter.

LINK-PP Part Number:	LPJ0011CNL	WE Part Number	MIC24010-5104T-LF3
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Down	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Without
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.627/15.93	Temperature	0 TO 70℃
Bst Circuit	YES	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Ethernet MagJack

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

3D Model LPJ0011CNL.zip

3D Model LPJ0011CNL.glb

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Q:
Rated only zero to seventy — can this jack live in an unheated outdoor cabinet? by H***k

A:
Not comfortably. The commercial winding and the moulding are screened for the narrower band, and a cabinet that dips below freezing will see the compound stiffen and the plating work harder. If the enclosure is outdoors or unheated, take the industrial version of the same body instead; we build it with a wider rated winding and a different compound. by LINK-PP Technical Support
Q:
The shell has EMI tabs but my plate is powder coated — how do I bond them? by T***o

A:
Mask a bare land on the inside of the plate where the tabs land, and keep the powder off the mating face, because a coated surface is an insulator at these frequencies. If the plate cannot be masked, add a conductive gasket or a spring finger from the board. Prove it with a milliohm reading from shell to chassis at first article. by LINK-PP Technical Support
Q:
The latch is underneath — how does that change the opening in my faceplate? by S***n

A:
You need the cutout to run a little below the mouth so a thumb can press the release, and the cord then leaves downward, which usually suits a wall box or a low shelf. Check the plate thickness against the release travel: a thick extrusion eats the finger room, and an opening cut exactly to the nose will hold the plug captive. by LINK-PP Technical Support
Q:
The part ships without any emitter — what is the usual way to indicate link and activity? by H***k

A:
Most integrators put two board emitters behind the shell and bring their light out through pipes in the bezel, then drive them from the PHY exactly as if the jack had lenses. Fix the pipe exits before you place the emitters, and keep the pipe mouths clear of the plug travel so a cord cannot clip them on the way in. by LINK-PP Technical Support
