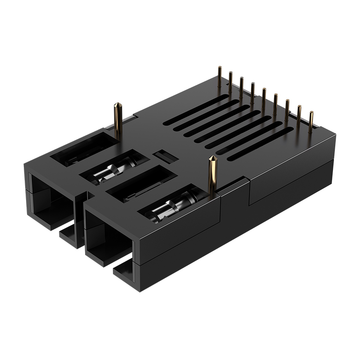

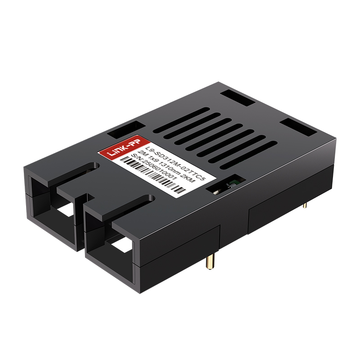

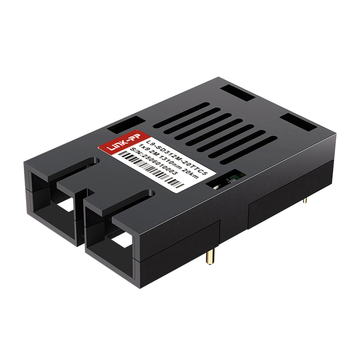

L9-SD312M-20TTC5 1x9 transceiver is designed for 2Mbps serial data transmission in RS232, RS485, and RS422 fiber communication systems. With a 1310nm FP laser transmitter, it extends optical transmission distances up to 20km over single-mode fiber. The module uses a 5V power supply and (LV)TTL data inputs and outputs, with an (LV)TTL signal detect function and an operating temperature range of 0°C to +70°C.
| LINK-PP Part Number | L9-SD312M-20TTC5 | Vendor Name | LINK-PP |
| Form Factor | 1x9 | Max Data Rate | 2Mbps |
| Wavelength | 1310nm | Max Cable Distance | 20km |
| Connector | Duplex SC | Fiber Type | SMF |
| Transmitter Type | FP | Receiver Type | PIN |
| Receiver Sensitivity | <-18dBm | Supply Voltage | 5V |
| Differential Input/ Output |
(LV)TTL | Signal Detect |
(LV)TTL |
| Operating Temperature Range | 0 to 70°C | Application |
RS232/RS485/RS422 Receptacle Fiber Transmission Fiber System |
LINK-PP L9-SD312M-20TTC5 is designed to extend serial data communication over longer optical fiber distances. Its 1×9 package, 1310nm optical output, and duplex SC interface provide a practical solution for fiber transmission systems using RS232, RS485, and RS422 signals.

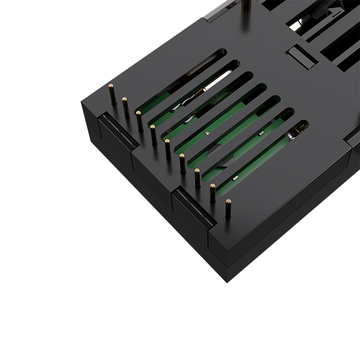

The standard 1×9 package is designed for direct mounting on a printed circuit board, making it suitable for integration into serial communication equipment. Its (LV)TTL data inputs and outputs, together with a signal detect function, provide the electrical connections needed for data exchange with the host circuit.
Supporting data rates of up to 2Mbps, this transceiver is suitable for fiber communication systems carrying RS232, RS485, and RS422 serial data. It helps extend these communication links by converting electrical data into optical signals for transmission over fiber.
Operating at a nominal wavelength of 1310nm, the transceiver provides an optical output designed for single-mode fiber transmission. This wavelength supports optical signal transmission over the specified fiber link and helps ensure proper wavelength matching between connected equipment.
The transceiver supports optical transmission distances of up to 20km over single-mode fiber. This extended reach allows serial communication equipment in separate locations to exchange data without placing the endpoints close together.

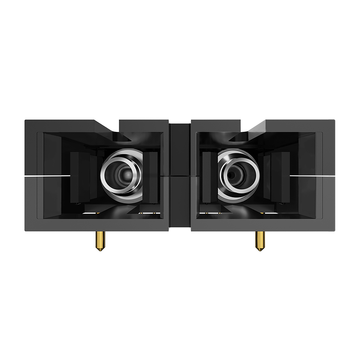

The duplex SC interface provides two separate optical ports for transmitting and receiving signals. Connecting the TX and RX fibers to their corresponding ports at both ends enables data transmission in both directions.
LINK-PP L9-SD312M-20TTC5 1×9 transceiver is covered by quality and compliance standards such as ISO 9001, CE, RoHS, and FCC, supporting its conformity with recognized manufacturing and product requirements.
The testing process examines optical output and electrical response to assess the module's ability to maintain accurate serial data transmission over its specified fiber link.
The transceiver carries recognized certifications that support compliance with established quality, manufacturing, and regulatory requirements.

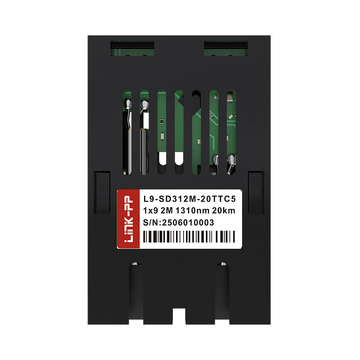

The established 1×9 pin configuration gives equipment designers a familiar board layout for incorporating the transceiver into different hardware designs.
LINK-PP L9-SD312M-20TTC5 1×9 optical transceiver is tested to evaluate its optical output, signal quality, data accuracy, and temperature response. These checks help assess stable operation during 2Mbps transmission over single-mode fiber; learn more at the LINK-PP Test Support Center.
Measure the 1310nm optical spectrum to check transmitter wavelength accuracy.
Inspect the transmitted eye pattern to assess 2Mbps signal quality.
Measure bit errors across optical links to verify data accuracy.
Check module operation across the specified 0°C to +70°C range.
LINK-PP L9-SD312M-20TTC5 1×9 transceiver modules are handled through organized packing and dispatch procedures. Shipping arrangements help protect the modules during transit and keep customers informed about their orders.
Apply static-control protection to safeguard modules during packing and handling.
Cushion packages securely to reduce impact risks throughout product transportation.
Confirm order information quickly and arrange dispatch within agreed schedules.
Share tracking details for overseas orders throughout the delivery process.
Mount the L9-SD312M-20TTC5 transceiver onto the circuit board by fitting its pins into the corresponding PCB holes and soldering them securely. Connect the SC fiber cables at both ends of the optical link, apply power to the equipment, and test the serial data exchange between the connected systems.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal L9-SD312M-20TTC5 module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
![]() Current Model L9-SD312M-20TTC5 |
|---|
Compatible | LINK-PP | LINK-PP |
Data Rate (Max) | 2Mbps | 2Mbps |
Wavelength | 1310nm | 1310nm |
Connector | Duplex SC | Duplex SC |
Cable Distance (Max) | 20km | 2km |
Operating Temperature | 0 to 70°C | 0 to 70°C |
Fiber Type | SMF | MMF |
Fiber Interface | Duplex SC | Duplex SC |
Form Factor | 1x9 | 1x9 |
Transmitter Type | FP | FP |
Receiver Type | PIN | PIN |
Supply Voltage | 5V | 5V |
Differential Input/ Output | (LV)TTL | (LV)TTL |
Signal Detect | (LV)TTL | (LV)TTL |
Application | RS232/RS485/RS422 Receptacle Fiber Transmission Fiber System | RS232/RS485/RS422 Receptacle Fiber Transmission Fiber System |
