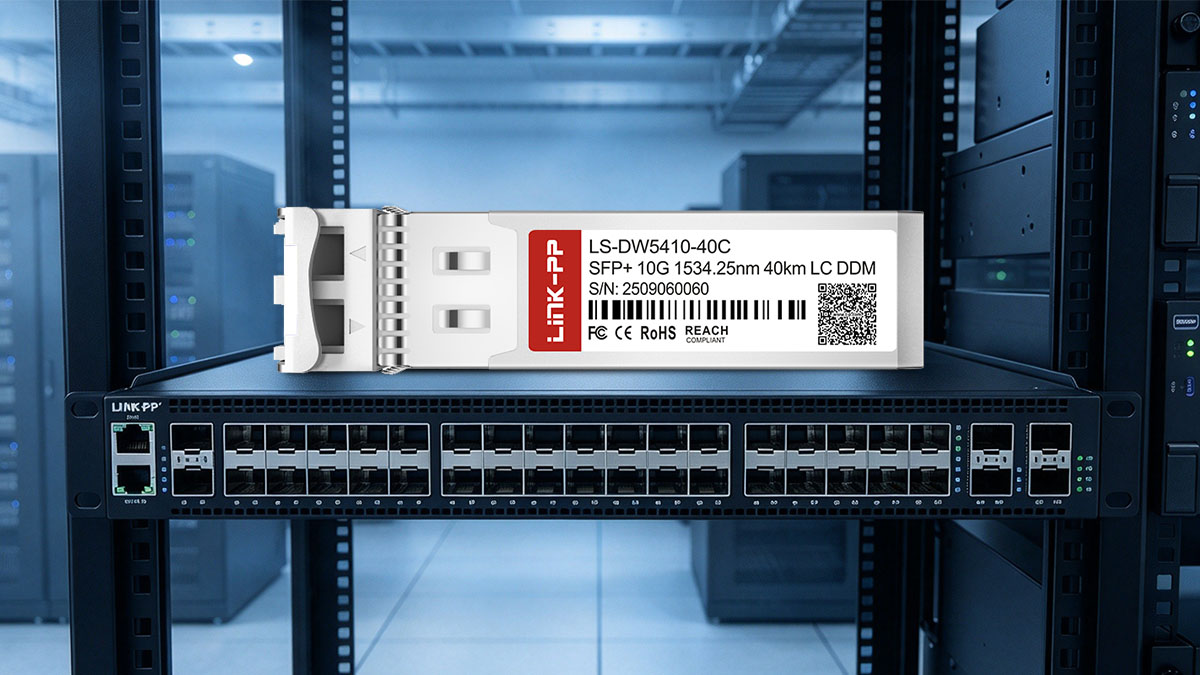

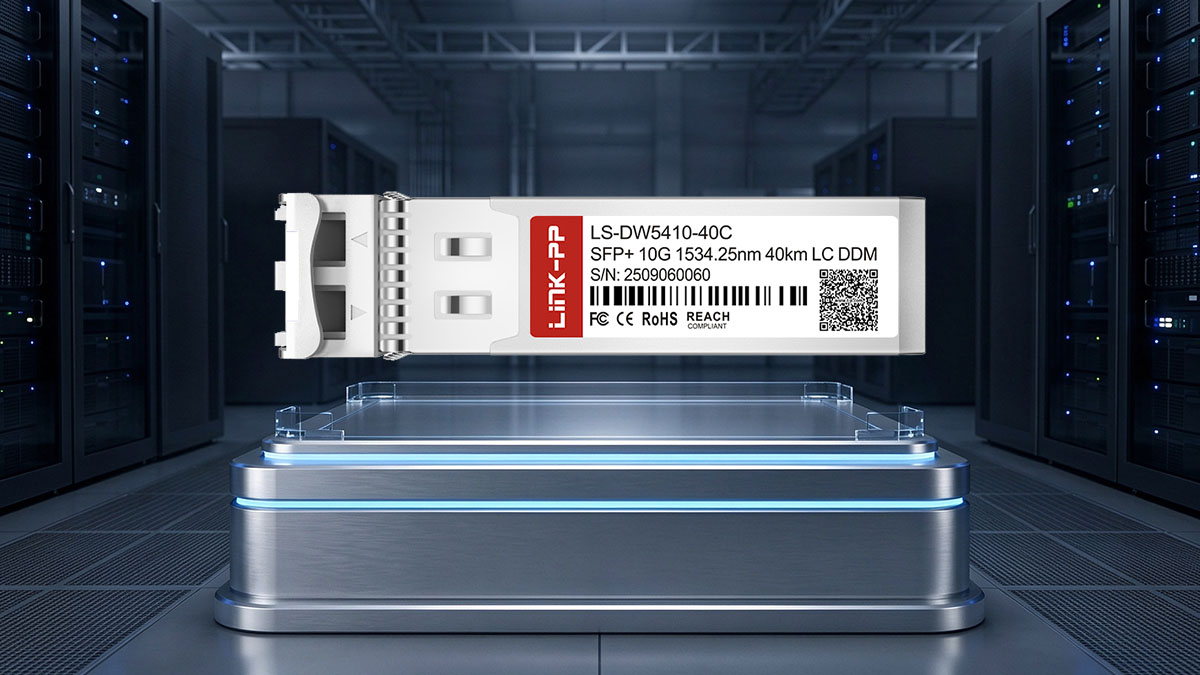

The Broadcom DW-SFP10G40-54 Compatible LINK-PP module is a high-performance 10G DWDM SFP+ optical transceiver engineered for single-mode fiber links. Operating at the ITU Channel 54 1534.25nm wavelength with a cooled EML laser and PIN receiver, this hot-pluggable module supports data rates up to 10.7Gbps across 40km reaches while utilizing an energy-efficient 3.3V power supply in commercial networking environments.
Broadcom Part Number
DW-SFP10G40-54
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1534.25nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
DDM/DOM
Supported
Receiver Sensitivity
-15.5dBm
Operating Temperature Range
0°C to +70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of Broadcom DW-SFP10G40-54 Compatible LINK-PP 10G DWDM SFP+
The Broadcom DW-SFP10G40-54 Compatible LINK-PP 10G DWDM SFP+ features 100GHz ITU channel spacing, a reliable cooled EML transmitter, and a duplex LC optical receptacle. With hot-pluggable architecture, built-in digital diagnostic monitoring, and low power dissipation, it delivers superior signal integrity and dependable 40km transmission performance for carrier-grade networks.
Designed for high-speed interconnects, the Broadcom DW-SFP10G40-54 Compatible LINK-PP 10G SFP+ optical module provides robust 10Gbps transmission with high link budget efficiency. Its compact form factor ensures flexible deployment across high-density aggregation switches and telecom routing systems.

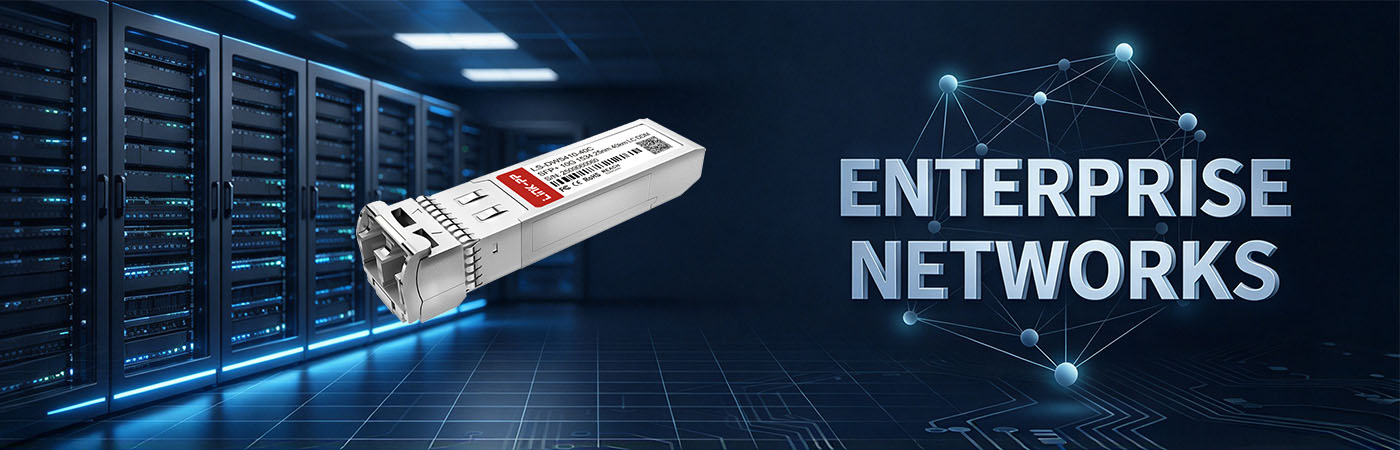

DW-SFP10G40-54: 10G Connectivity for Enterprise Networks
The DW-SFP10G40-54 transceiver establishes seamless 10G Ethernet and OTN connectivity across enterprise backbones. It ensures ultra-low latency, smooth bandwidth scaling, and dependable point-to-point data transmission for modern corporate data centers and campus distribution layers.

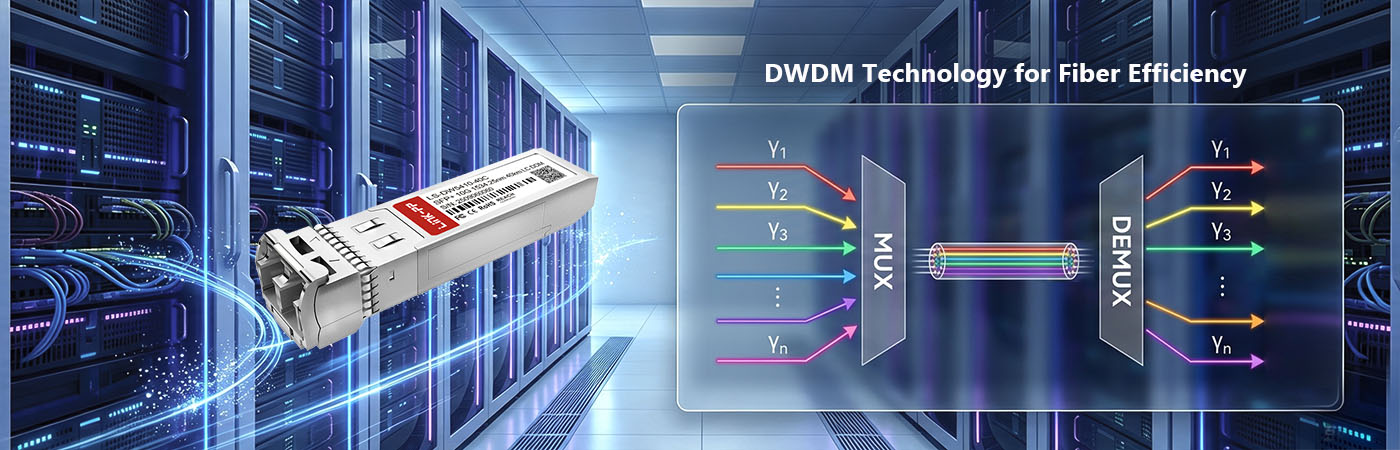

DW-SFP10G40-54 Module with DWDM Technology for Fiber Efficiency
Leveraging advanced dense wavelength division multiplexing, the DW-SFP10G40-54 module maximizes fiber capacity by transmitting dedicated channels over existing single-mode fiber. This eliminates the necessity of laying new cabling while significantly cutting overall infrastructure operational expenditures.

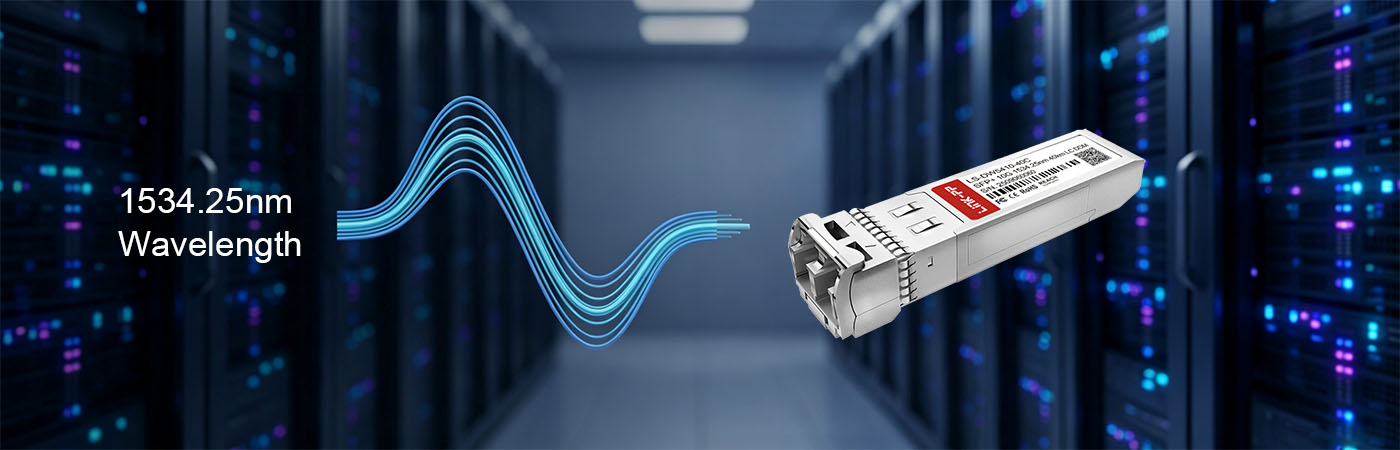

DW-SFP10G40-54 Module with 1534.25nm Wavelength
Calibrated to ITU Channel 54 at 1534.25nm (195.4THz), the DW-SFP10G40-54 utilizes a stable cooled EML laser. It maintains exceptional optical spectral stability, minimizing chromatic dispersion penalties across demanding DWDM C-band multiplexing optical links.
With an optical power budget exceeding 14.5dB, the DW-SFP10G40-54 module supports extended 40km transmission over standard single-mode fiber. It provides steady, high-bandwidth reach for metropolitan access links, LTE transport, and intermediate-distance data center connections.

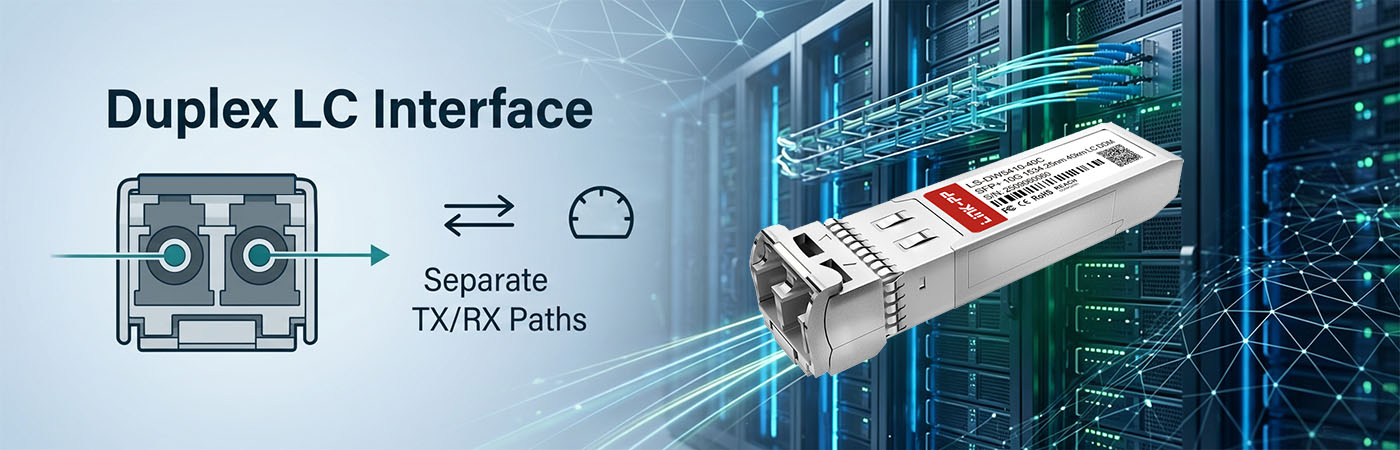

DW-SFP10G40-54 Module with Duplex LC Interface
Equipped with an industry-standard duplex LC receptacle, the DW-SFP10G40-54 module offers seamless integration with standard patch cords. Its robust locking mechanism ensures secure mating, low optical insertion loss, and consistent physical connectivity in high-density rack enclosures.

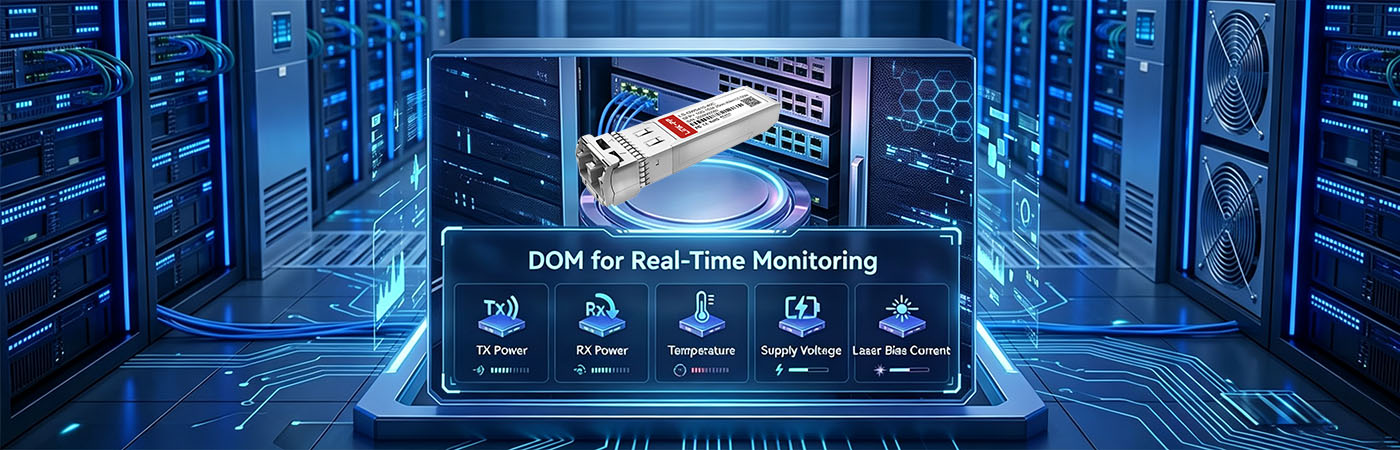

DW-SFP10G40-54 Module with DOM for Real-Time Monitoring
Featuring SFF-8472 compliant digital optical monitoring (DOM), the DW-SFP10G40-54 tracks laser bias current, transmit and receive optical power, voltage, and module temperature in real time, simplifying network maintenance and preventative fault detection.
The Broadcom DW-SFP10G40-54 Compatible LINK-PP 10G SFP+ module meets international safety and regulatory benchmarks, strictly adhering to environmental, electromagnetic compatibility, and electrical standards required for worldwide commercial network deployments.
Every DW-SFP10G40-54 transceiver passes a multi-stage quality assurance protocol, verifying signal integrity, optical output precision, electrical performance, and sustained packet forwarding before shipment to ensure zero-defect reliability.
DW-SFP10G40-54 Quality Certifications
Fully compliant with CE, FCC, UKCA, UL, and REACH directives, the DW-SFP10G40-54 guarantees strict environmental safety, hazard-free materials, laser safety, and reliable operational compliance across international telecommunications markets.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DW-SFP10G40-54 Certified for Reliable Host-Device Compatibility
Engineered to MSA specifications, the DW-SFP10G40-54 is fully verified across leading brands of enterprise switches, routers, and transport systems to ensure transparent multi-vendor interoperability and plug-and-play installation.
LINK-PP conducts comprehensive optical and electrical validation tests on each module, verifying flawless operation, maximum longevity, and continuous link stability in critical network infrastructures.
Optical Spectrum Test
Verifies the 1534.25nm center wavelength accuracy and suppresses side modes for clear DWDM spectral performance.
Eye Pattern Test
Validates high-speed optical transmitter waveform purity, jitter margins, and extinction ratio compliance with IEEE standards.
Bit Error Rate Test
Ensures flawless data transmission with BER below 1×10⁻¹² under full 10Gbps line-rate traffic.
Temperature Test
Confirms stable thermal stability and TEC cooling efficiency across standard 0°C to 70°C operating conditions.
Product Shipping for Broadcom DW-SFP10G40-54 Compatible LINK-PP 10G SFP+
Each Broadcom DW-SFP10G40-54 Compatible LINK-PP module is packaged with care using specialized materials, ensuring safe, rapid, and defect-free international transit to global enterprise clients.
Anti-Static Protective Packaging
Individually sealed in ESD-safe blister trays preventing electrostatic discharge damage.
Shock-Resistant Transport Protection
Cushioned packaging absorbs vibrations and external impacts during long-distance transit.
Fast Order Processing and Dispatch
Streamlined order fulfillment guarantees prompt dispatch from stocked regional warehouses.
Global Logistics and International Delivery
Partnered with express international carriers providing reliable door-to-door worldwide tracking.

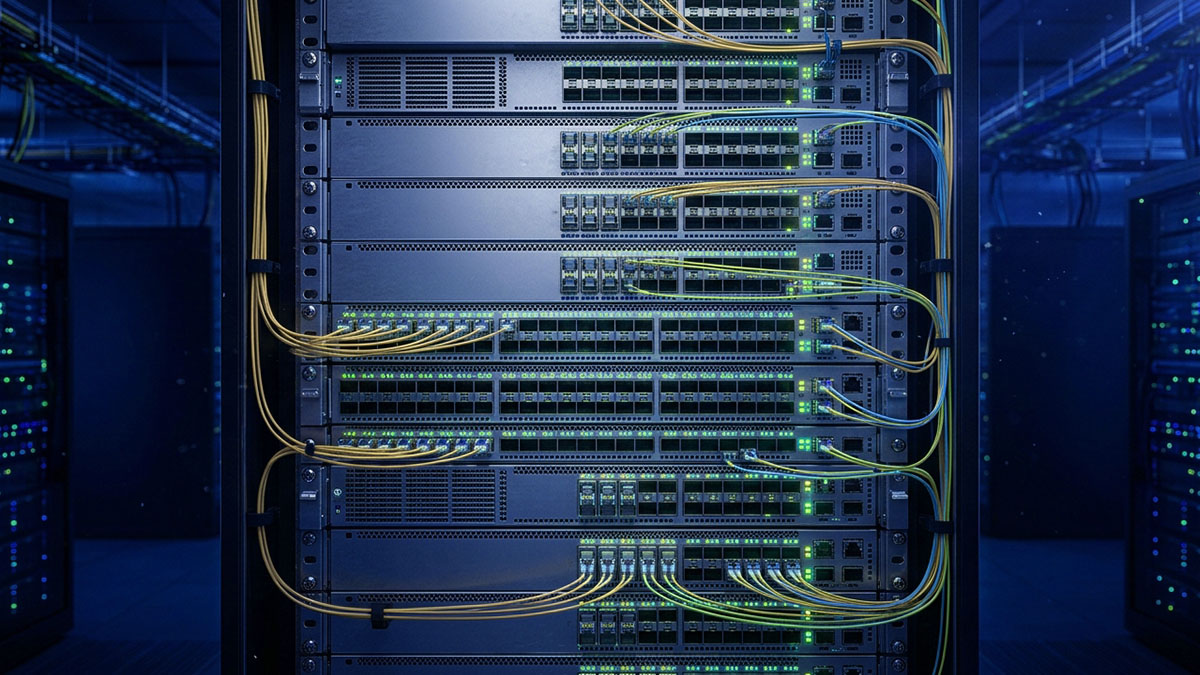

Deploying the Broadcom DW-SFP10G40-54 Compatible LINK-PP 10G SFP+ requires simply sliding it into an MSA-compliant port, removing dust caps, and attaching duplex LC single-mode fiber. The module delivers instant link synchronization with real-time DOM diagnostics accessible via host software.
DW-SFP10G40-54 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable DW-SFP10G40-54 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes! We can pre-code each LS-DW5410-40C module for its specific host switch (Extreme, Juniper, H3C, or Arista) while all units operate on the exact same ITU Channel C54 (1534.25nm) wavelength, ensuring 100% end-to-end interoperability. By
admin
A:
Use standard 9/125µm OS2 Single-Mode Fiber (SMF) patch cords terminated with Duplex LC UPC connectors to achieve optimal insertion loss and full 40km transmission reach. By
admin
A:
Orders of 45 units qualify for our 30+ and 50-tier B2B project discount. Reach out to our sales team with your quantity and required vendor coding for a customized bulk quote. By
admin
A:
Yes, LS-DW5410-40C is fully compliant with SFP+ MSA, SFF-8472 (DOM/DDM), SFF-8431, 100GHz ITU-T G.694.1 (C54 1534.25nm), 10.7Gbps CPRI/eCPRI, Class I Laser Safety, and RoHS directives. By
admin
A:
Yes! Alongside the standard commercial LS-DW5410-40C (0°C to +70°C), we offer the industrial wide-temperature LS-DW5410-40I (-40°C to +85°C) built to withstand extreme outdoor cellular tower and substation environments. By
admin
Please write comments with more than three
character.
497818
575157
Z***y
Bolivia
Verified
Purchase
5 .0
2026-09-18
Ideal optical transceiver for high capacity campus fiber rings and remote 10G NAS replication on H3C switches, offering accurate SFF-8472 diagnostics and sturdy Duplex LC mechanical latches
Please write comments with more than three
character.
497818
575160
W***d
Colombia
Verified
Purchase
5 .0
2026-08-31
During our 10.7Gbps CPRI and 10GBASE-DWDM stress test through a 100GHz mux, the cooled EML transmitter maintained tight spectral width and zero bit errors across the entire 0C to 70C range.
Please write comments with more than three
character.
497818
575165
N***r
Portugal
Verified
Purchase
5 .0
2026-08-15
We tested interoperability against legacy Arista DWDM optics on the far end of our metro span and LS-DW5410-40C negotiated full duplex 10G immediately at a fraction of OEM pricing.
