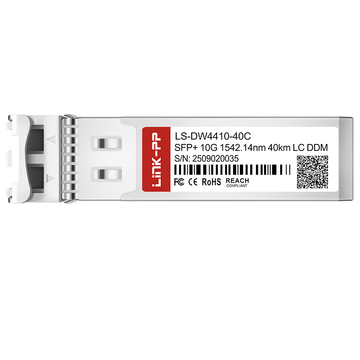

The Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G DWDM SFP+ transceiver provides high-performance connectivity with up to a 10.7Gbps data rate. Utilizing a cooled EML laser and integrated PIN photodiode, this commercial-grade optical module ensures excellent signal integrity. It supports standard 100GHz ITU C-band frequencies, operating flawlessly across demanding environments ranging from 0°C to +70°C.
Broadcom Part Number
DW-SFP10G40-44
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1542.14nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
DDM/DOM
Supported
Receiver Sensitivity
-15.5dBm
Operating Temperature Range
0°C to +70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G DWDM SFP+
Operating on a single 3.3V power supply, the hot-pluggable DW-SFP10G40-44 maximizes deployment flexibility. This RoHS-compliant module consumes minimal power while satisfying Class I laser safety standards. It delivers an optimal balance of cost-effectiveness and exceptional optical networking reliability for modern enterprise infrastructures.
Engineered for robust optical networks, the Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G SFP+ optical module fully supports 10GBASE-ZR and 10GBASE-ZW applications. It provides seamless 10Gbps transmission over single-mode fiber, addressing complex data center interconnection requirements.
DW-SFP10G40-44: 10G Connectivity for Metropolitan Area Networks
Delivering exceptional high-speed bandwidth, the DW-SFP10G40-44 enables scalable 10G connectivity for metropolitan area networks. Its robust design easily accommodates demanding LTE systems and expansive optical links, ensuring continuous data flow across city-wide digital architectures.
DW-SFP10G40-44 Module with DWDM Technology for Fiber Efficiency
By leveraging dense wavelength division multiplexing, the DW-SFP10G40-44 module maximizes existing optical fiber capacity. This advanced DWDM technology allows multiple data streams to share a single fiber, significantly reducing infrastructure costs while enhancing overall network efficiency.
DW-SFP10G40-44 Module with 1542.14nm Wavelength
Specifically tuned to ITU Channel 44, the DW-SFP10G40-44 module operates precisely at the 1542.14nm wavelength. Operating on the 194.4 THz frequency within the C-band spectrum, it guarantees tight spectral width and an exceptional side-mode suppression ratio.
Designed for extended long-haul routing, the DW-SFP10G40-44 module confidently supports up to 40km transmission distances over single-mode fiber. The high-quality PIN receiver ensures minimal signal degradation, maintaining reliable 10Gbps communication across vast geographical network layouts.
DW-SFP10G40-44 Module with Duplex LC Interface
The DW-SFP10G40-44 module features a standard duplex LC receptacle, ensuring seamless physical connections. This universally compatible fiber connector enables quick plug-and-play integration with high-density patch panels, minimizing downtime during critical networking hardware upgrades.
DW-SFP10G40-44 Module with DOM for Real-Time Monitoring
Integrated with an advanced I2C controller, the DW-SFP10G40-44 module features DOM capabilities for real-time monitoring. Administrators can instantly track vital parameters including temperature, voltage, laser bias current, and optical power using SFF-8472 compliant digital diagnostics.
The Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G SFP+ adheres strictly to essential global safety standards. It holds official CE, FCC, UKCA, UL, and REACH certifications for secure telecommunications deployment.
Every DW-SFP10G40-44 undergoes a rigorous quality testing program. Advanced diagnostic evaluations ensure each transceiver meets strict optical networking specifications, delivering defect-free hardware directly to enterprise clients.
DW-SFP10G40-44 Quality Certifications
Backed by comprehensive industry approvals, the DW-SFP10G40-44's quality certifications guarantee environmental compliance and electrical safety, allowing network operators worldwide to confidently deploy these verified hardware solutions.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
DW-SFP10G40-44 Certified for Reliable Host-Device Compatibility
Fully compliant with the SFP+ Multi-Source Agreement, the DW-SFP10G40-44 is certified for reliable host-device compatibility. It integrates smoothly with major brand routers and switches without interoperability issues.
Our strict validation protocols guarantee peak operational stability. This rigorous testing ensures reliable SFP+ performance across challenging enterprise data networking environments.
Optical Spectrum Test
Verifies precise 1542.14nm wavelength alignment and confirms optimal side-mode suppression ratio metrics.
Eye Pattern Test
Validates optical signal clarity to ensure absolute compliance with stringent IEEE transmission standards.
Bit Error Rate Test
Guarantees flawless 10Gbps connectivity by confirming zero data loss over extended testing periods.
Temperature Test
Confirms durable operational stability across commercial environments ranging from 0°C to +70°C.
Product Shipping for Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G SFP+
We maintain strict supply chain controls to secure your Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G SFP+ orders. Every package guarantees prompt and safe international delivery.
Deploying the Broadcom DW-SFP10G40-44 Compatible LINK-PP 10G SFP+ is exceptionally straightforward. Its hot-pluggable design allows technicians to insert the module into active network switches seamlessly, instantly establishing reliable 40km duplex optical connections without requiring a complete system restart.
DW-SFP10G40-44 Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable DW-SFP10G40-44 modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
This DWDM module is specifically designed for Single Mode Fiber (SMF) to achieve the 40km transmission distance and utilizes a standard Duplex LC fiber interface. It is not compatible with multimode fiber (MMF). By
admin
A:
Yes, we do! For data center and enterprise bulk deployments, we offer tiered wholesale pricing. Please reach out to our B2B sales team directly, and we’ll get you a custom quote that fits your project budget. By
admin
A:
This specific SKU operates at standard commercial temperatures (0°C to 70°C). However, we do manufacture industrial-grade wide-temp versions (-40°C to 85°C) for extreme outdoor or base station backhaul deployments. Just contact support for the industrial SKU! By
admin
A:
Absolutely! This module is fully OEM compatible and built to standard MSA protocols. We’ve had many network engineers successfully deploy these in multi-brand environments without any interoperability issues. By
admin
