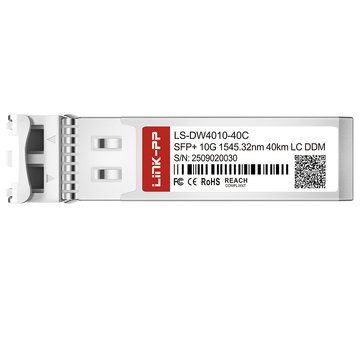

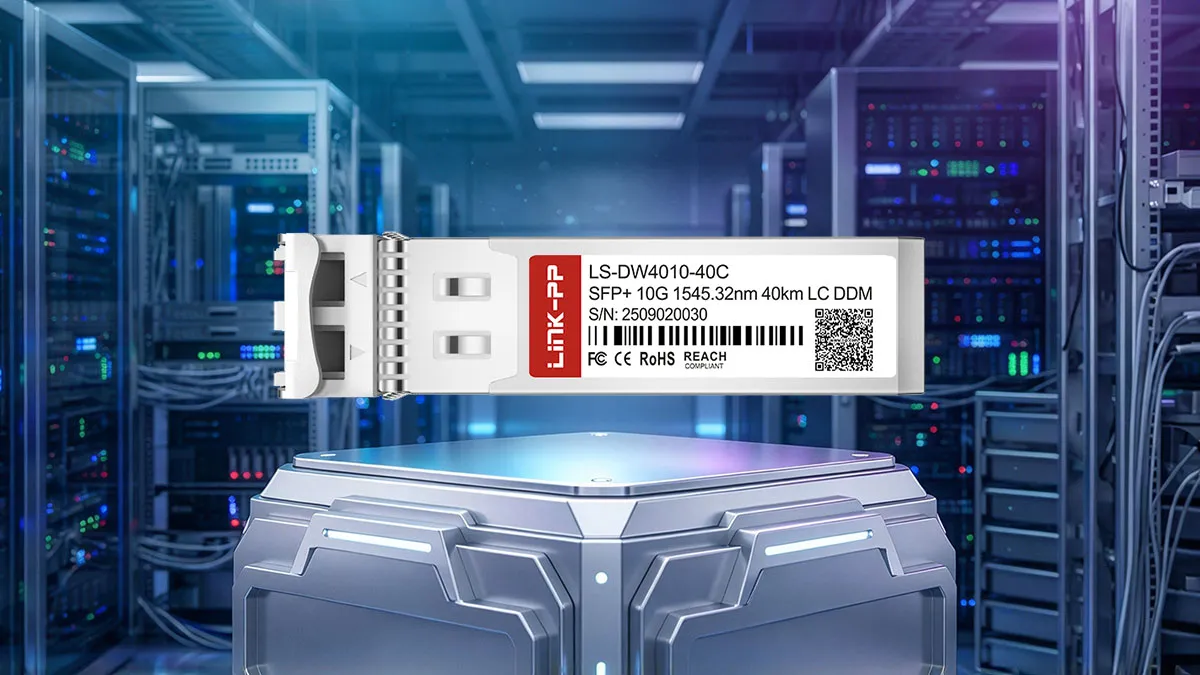

The LINK-PP LS-DW4010-40C is a high-performance 10G DWDM SFP+ optical transceiver engineered for robust data center and telecommunications networks. Operating at a precise 1545.32nm wavelength on ITU channel 40, this module delivers Max 10.7Gbps connectivity over 40km single-mode fiber. It features a premium cooled EML laser, duplex LC connector, and SFP+ MSA compliance.
LINK-PP Part Number
LS-DW4010-40C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1545.32nm
Max Cable Distance
40km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1 to +2dBm
RX Power
-16 to -1dBm
Receiver Sensitivity
-15.5dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
SFP+ MSA, CPRI, eCPRI, SFF-8472, SFF-8431
Key Features of LINK-PP LS‑DW4010‑40C 10G DWDM SFP+
Enhance your network infrastructure with the LINK-PP LS-DW4010-40C. This hot-pluggable 10G DWDM SFP+ transceiver supports 10.7Gbps bit rates and features integrated digital diagnostic monitoring. Built with a highly reliable cooled EML transmitter and PIN receiver, it ensures exceptional fiber efficiency and low power consumption.

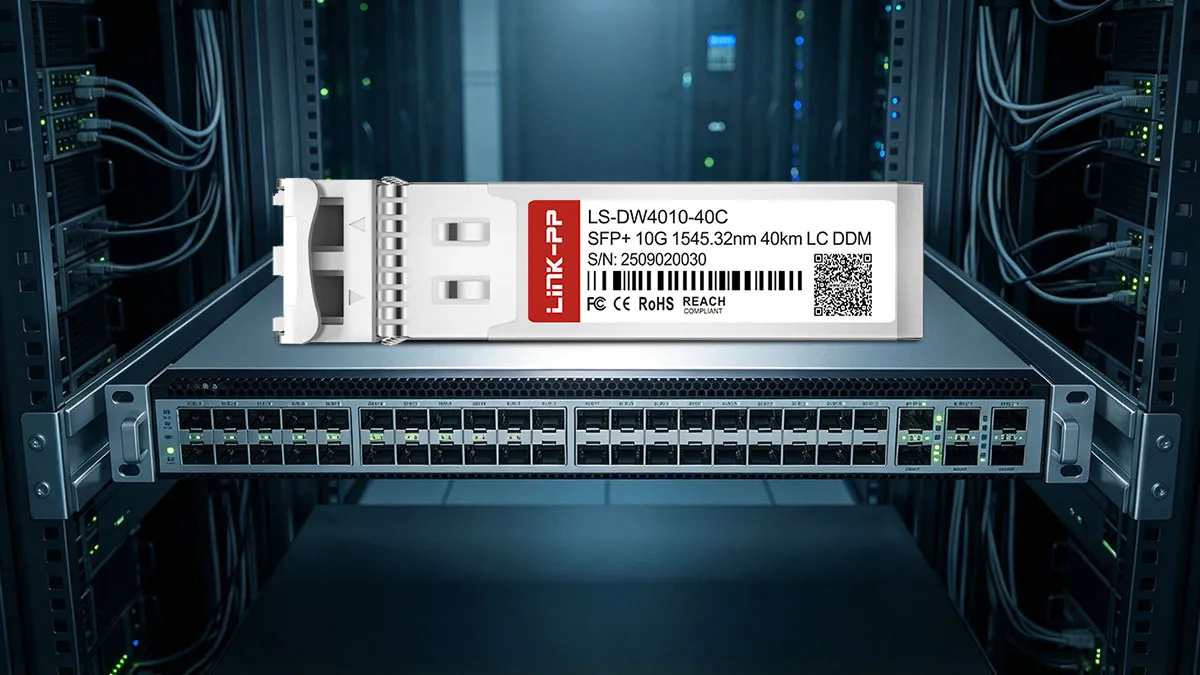

LINK-PP LS‑DW4010‑40C 10G SFP+ Optical Module
As a versatile 10G SFP+ optical module, the LS-DW4010-40C provides a cost-effective solution for upgrading network capacity. It fully complies with the SFF-8472 protocol, ensuring seamless integration into various 10Gbps Ethernet and telecommunication routing environments.
LS‑DW4010‑40C: 10G Connectivity for Metropolitan Area Networks
Tailored for demanding metropolitan area networks, the LS-DW4010-40C guarantees reliable 10G connectivity. Its robust design easily handles the rigorous data requirements of MAN architectures, making this transceiver ideal for LTE backhaul systems and enterprise campus deployments.

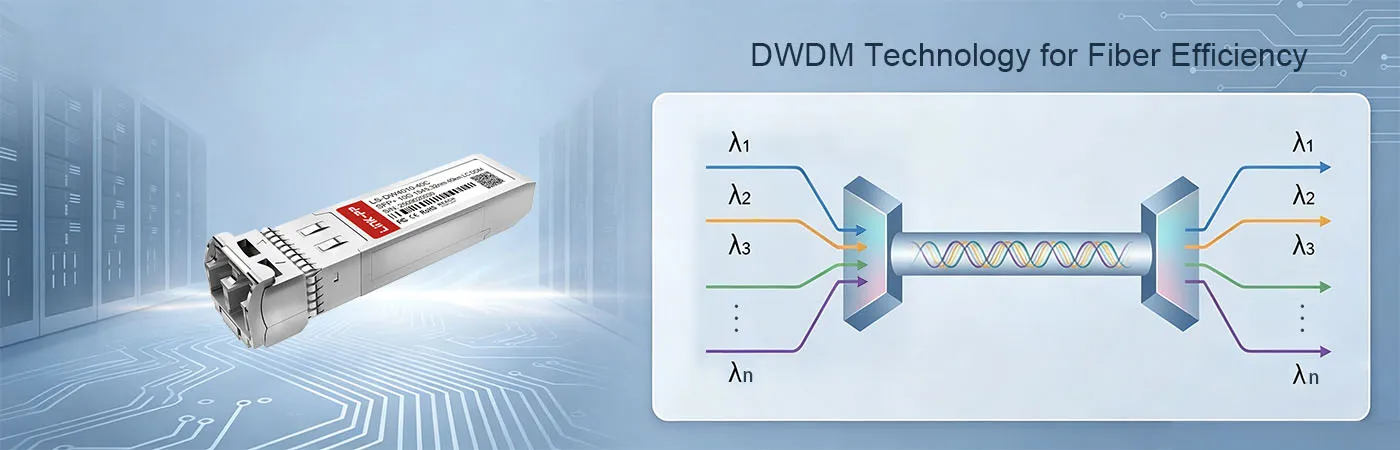

LS‑DW4010‑40C Module with DWDM Technology for Fiber Efficiency
Leveraging advanced Dense Wavelength Division Multiplexing, the LS-DW4010-40C module maximizes existing optical fiber bandwidth. This DWDM technology allows multiple data streams to share a single fiber, significantly reducing infrastructure costs while drastically increasing overall network scalability.
LS‑DW4010‑40C Module with 1545.32nm Wavelength
Operating on the precise 100GHz ITU C-Band grid, this LS-DW4010-40C module transmits at a 1545.32nm wavelength. The integrated cooled EML laser maintains excellent frequency stability, ensuring minimal signal dispersion and high-quality data transmission across long distances.
LS‑DW4010‑40C Module Supporting 40km Transmission
Engineered for extended reach, the LS-DW4010-40C module confidently supports up to 40km transmission distances over standard single-mode fiber. Its high-sensitivity PIN photodiode and trans-impedance preamplifier guarantee optimal signal integrity without requiring additional costly amplification equipment.
LS‑DW4010‑40C Module with Duplex LC Interface
Featuring an industry-standard duplex LC interface, the LS-DW4010-40C module ensures secure and low-loss physical fiber connections. This standardized receptacle allows for quick hot-swapping and effortless compatibility with standard SMF patch cords in dense rack environments.

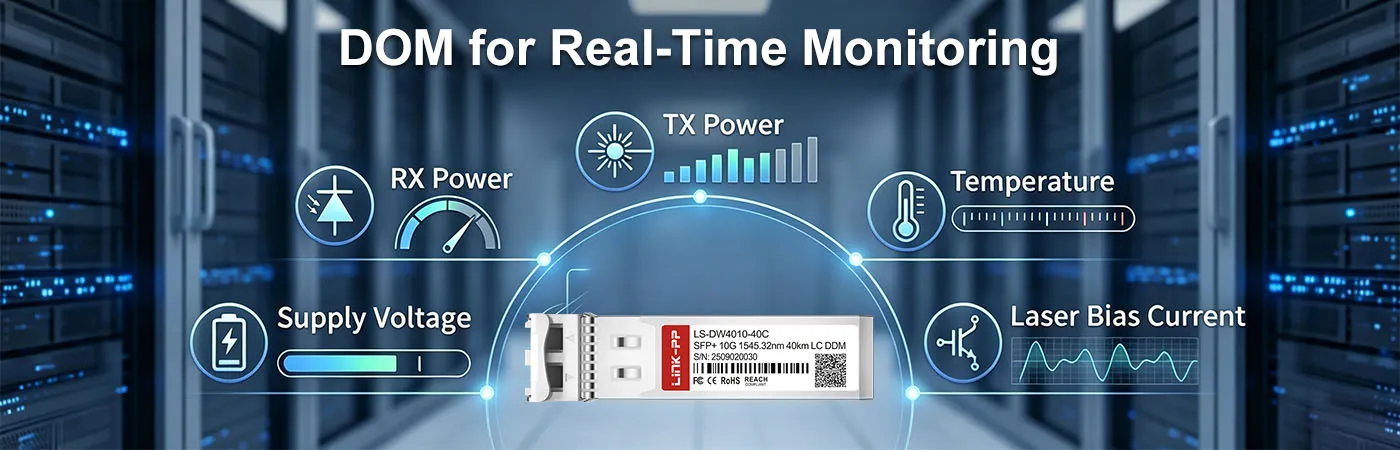

LS‑DW4010‑40C Module with DOM for Real-Time Monitoring
Equipped with advanced Digital Optical Monitoring, the LS-DW4010-40C module provides real-time access to critical operating parameters. Network administrators can easily track temperature, voltage, laser bias current, and optical power, enabling proactive maintenance and improved network reliability.
LINK-PP LS‑DW4010‑40C 10G SFP+ Certification
The LINK-PP LS-DW4010-40C 10G SFP+ module meets stringent global regulatory standards, carrying CE, FCC, UKCA, UL, REACH, and RoHS certifications to guarantee absolute safety and environmental compliance.
Every LS-DW4010-40C undergoes a comprehensive quality testing program before shipment. This strict quality control guarantees that each DWDM optical transceiver delivers flawless long-term operation in enterprise environments.
LS‑DW4010‑40C Quality Certifications
Backed by internationally recognized quality certifications, the LS-DW4010-40C ensures premium manufacturing standards. These credentials validate its Class I laser safety rating and exceptional reliability for telecommunication networks.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS‑DW4010‑40C Certified for Reliable Host-Device Compatibility
Thoroughly verified across major equipment brands, the LS-DW4010-40C is certified for reliable host-device compatibility. It perfectly adheres to SFP+ Multi-Source Agreement standards for seamless plug-and-play network integration.
Extensive laboratory evaluations guarantee that this DWDM transceiver operates flawlessly. Rigorous testing ensures reliable SFP+ performance across varied deployment conditions and high-speed data demands.
Optical Spectrum Test
Verifies the exact 1545.32nm wavelength and SMSR to ensure pristine DWDM channel isolation.
Eye Pattern Test
Analyzes optical signal integrity at 10.3Gbps, ensuring clear transmission with minimal jitter levels.
Bit Error Rate Test
Confirms a flawless data stream over 40km SMF, maintaining BER below industry standards.
Temperature Test
Validates stable commercial operating capabilities within environments ranging from 0°C to +70°C.
Product Shipping for LINK-PP LS‑DW4010‑40C 10G SFP+
We utilize professional packaging to safeguard your LINK-PP LS-DW4010-40C 10G SFP+ orders. Our streamlined logistics network guarantees fast and secure transit worldwide.
Anti-Static Protective Packaging
ESD-safe bags protect the sensitive optical components from static electricity damage.
Shock-Resistant Transport Protection
Custom foam inserts absorb vibrations, ensuring your transceivers arrive in pristine condition.
Fast Order Processing and Dispatch
Automated inventory systems enable rapid order fulfillment and immediate warehouse dispatch.
Global Logistics and International Delivery
Trusted global courier partnerships provide reliable, trackable international shipping for network upgrades.

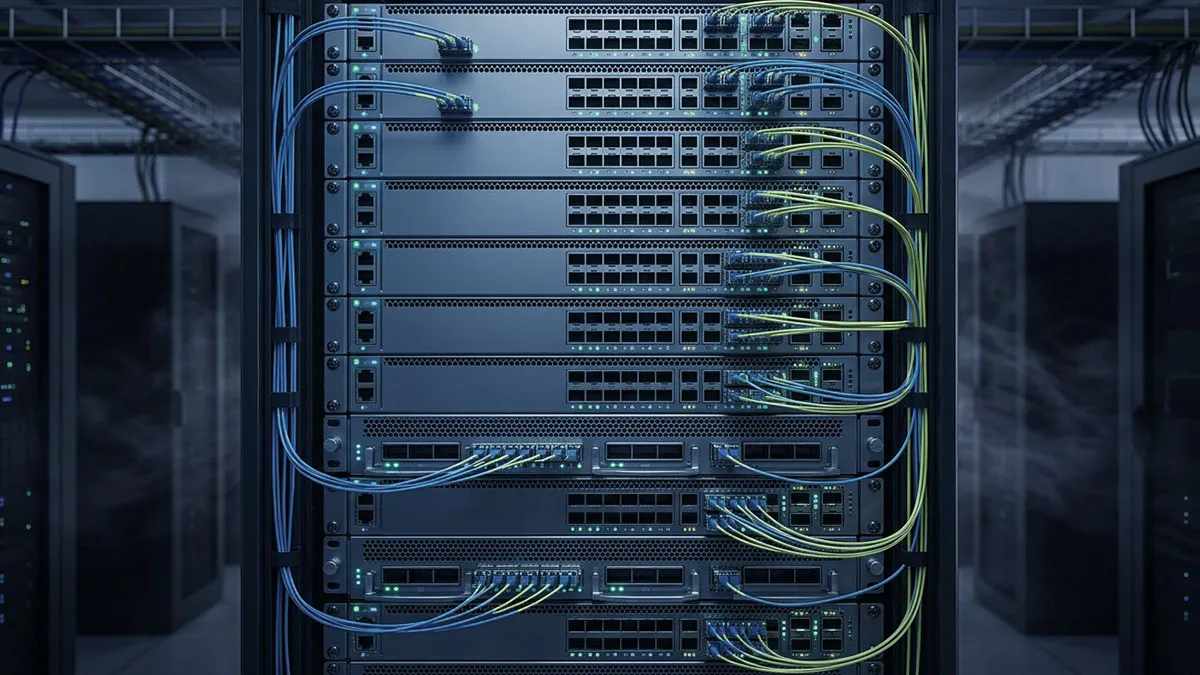

Deploying the LINK-PP LS-DW4010-40C 10G SFP+ is incredibly straightforward. Simply insert the hot-pluggable module into any MSA-compliant switch port, connect your single-mode duplex LC fiber, and instantly establish a stable 40km DWDM data link.
LS‑DW4010‑40C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS‑DW4010‑40C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
