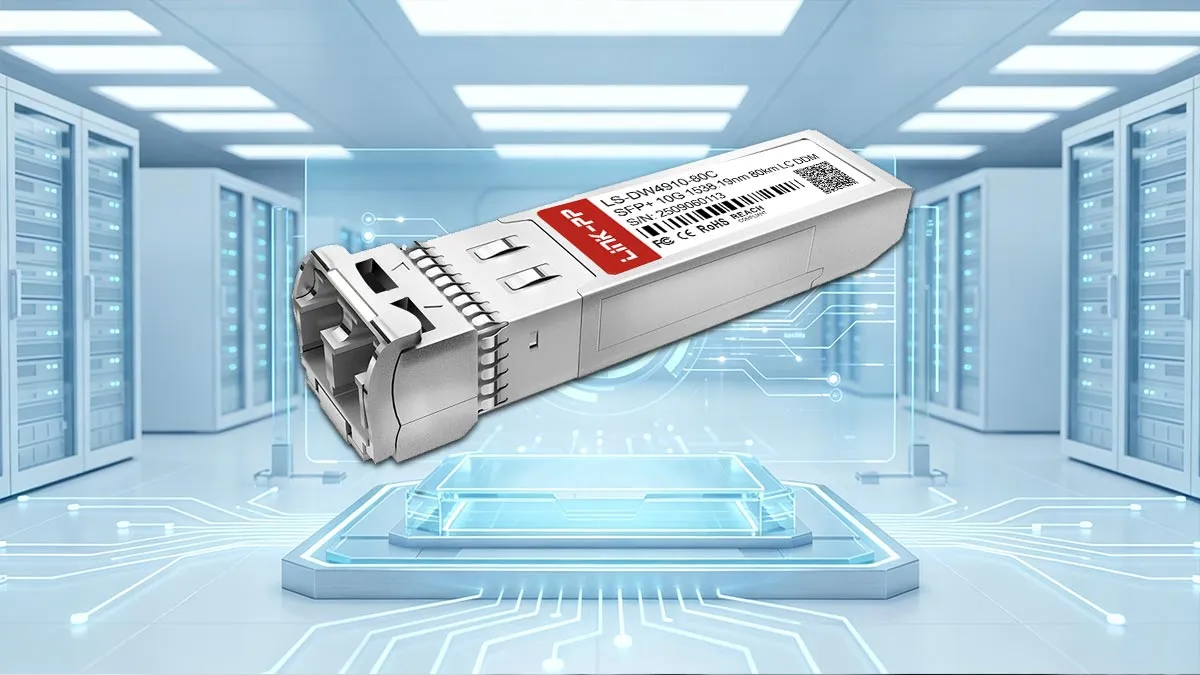

10G-SFPP-ZRD-1538.19 is a 10G SFP+ DWDM optical transceiver designed for long-reach single-mode fiber links, operating at the ITU 100GHz C-Band wavelength of 1538.19nm (Channel 49). It integrates a cooled EML laser and a high-sensitivity APD receiver to achieve transmission distances up to 80km while supporting built-in real-time digital diagnostic monitoring (DDM).
Brocade Part Number
10G-SFPP-ZRD-1538.19
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1538.19nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +5dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
-23dBm
DDM/DOM
Supported
Operating Temperature Range
0 to 70°C
Protocols
10GBASE-ZR/ZW, SDH STM64, SFF-8431, SFF-8472

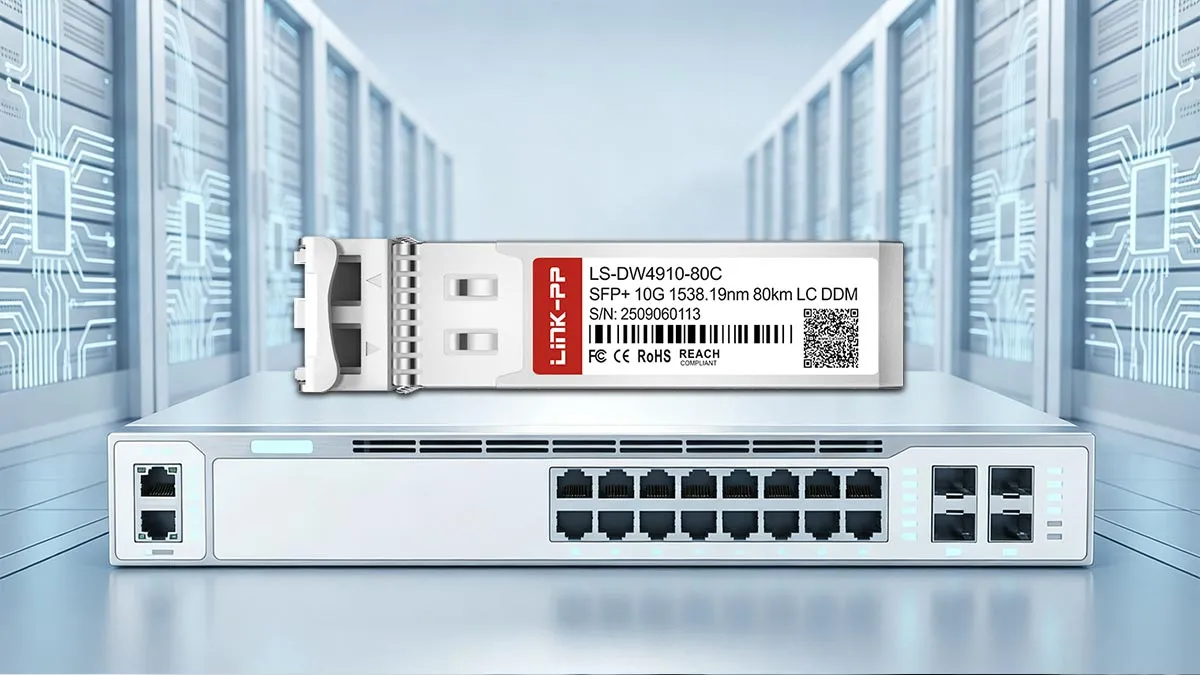

Key Features of Brocade 10G-SFPP-ZRD-1538.19 Compatible LINK-PP 10G SFP+
Brocade 10G-SFPP-ZRD-1538.19 Compatible LINK-PP provides 10Gbps data transmission for long-distance links up to 80km on a 1538.19nm wavelength. Equipped with a standard duplex LC interface, it supports hot-swapping and live digital diagnostics to ensure stable daily operation.
This transceiver features a compact, hot-pluggable SFP+ footprint that allows seamless installation and maintenance without powering down the host equipment. Fully compliant with standard SFP+ MSA specifications, it ensures broad mechanical and electrical compatibility across various networking platforms.

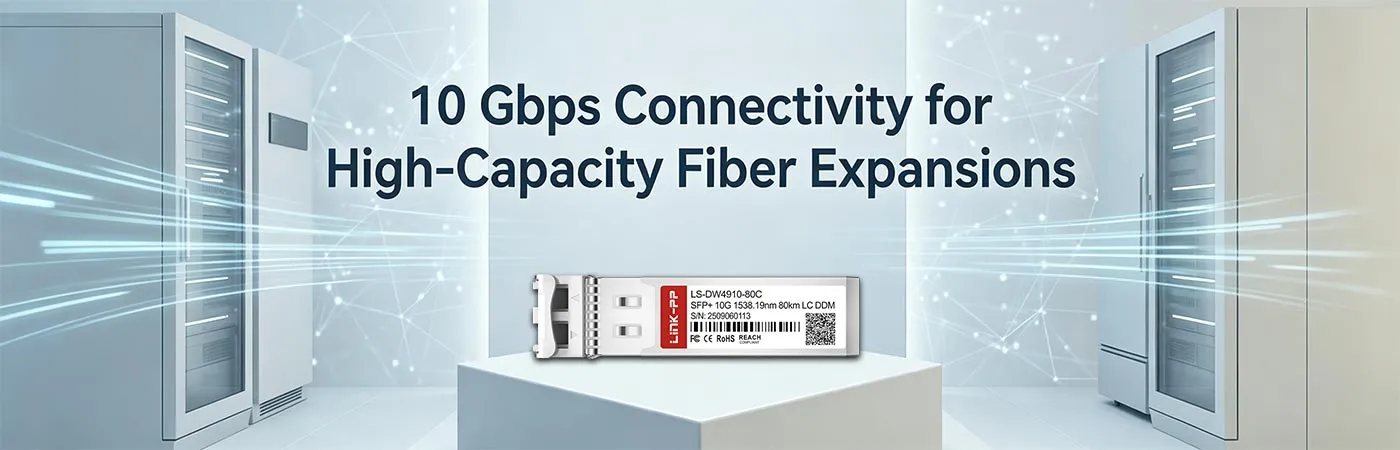

10G-SFPP-ZRD-1538.19: 10 Gbps Connectivity for High-Capacity Fiber Expansions
Delivering consistent 10Gbps data rates, the module effectively addresses growing bandwidth demands across enterprise backbones and service provider aggregation links. It provides a stable and scalable throughput solution that supports heavy traffic loads in continuous point-to-point applications.

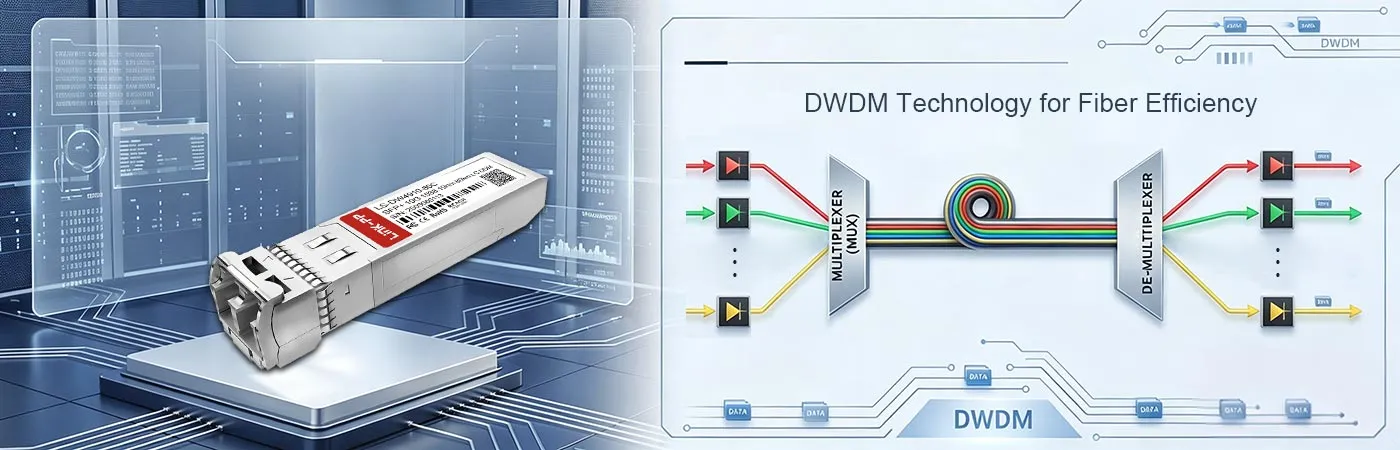

10G-SFPP-ZRD-1538.19 Module with DWDM Technology for Fiber Efficiency
Dense Wavelength Division Multiplexing (DWDM) technology allows operators to combine multiple data channels over an existing fiber infrastructure. By operating on tight channel spacing, the module maximizes overall fiber capacity and significantly reduces total optical cabling requirements.

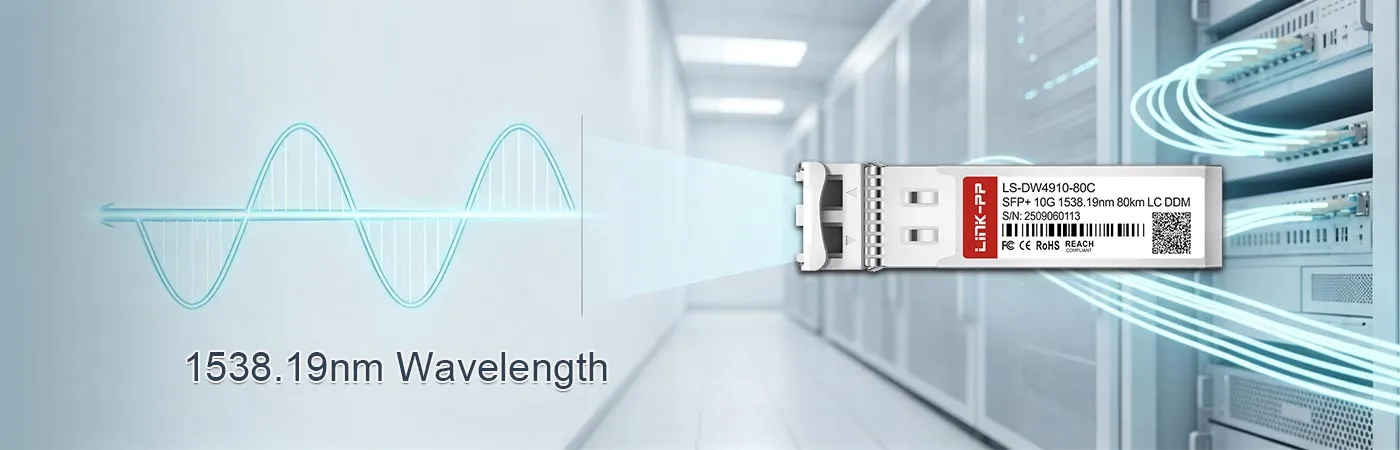

10G-SFPP-ZRD-1538.19 Module with 1538.19nm Wavelength
The 1538.19nm center wavelength (Channel 49) corresponds precisely to the 100GHz ITU C-Band optical grid. A stabilized, cooled transmitter architecture guarantees precise wavelength locking and minimizes frequency drift during long-term operation.
Extended reach capability enables point-to-point optical communication spanning distances of up to 80km over standard single-mode fiber. An integrated cooled EML laser and high-sensitivity APD receiver work together to overcome substantial optical path attenuation across long-haul paths.

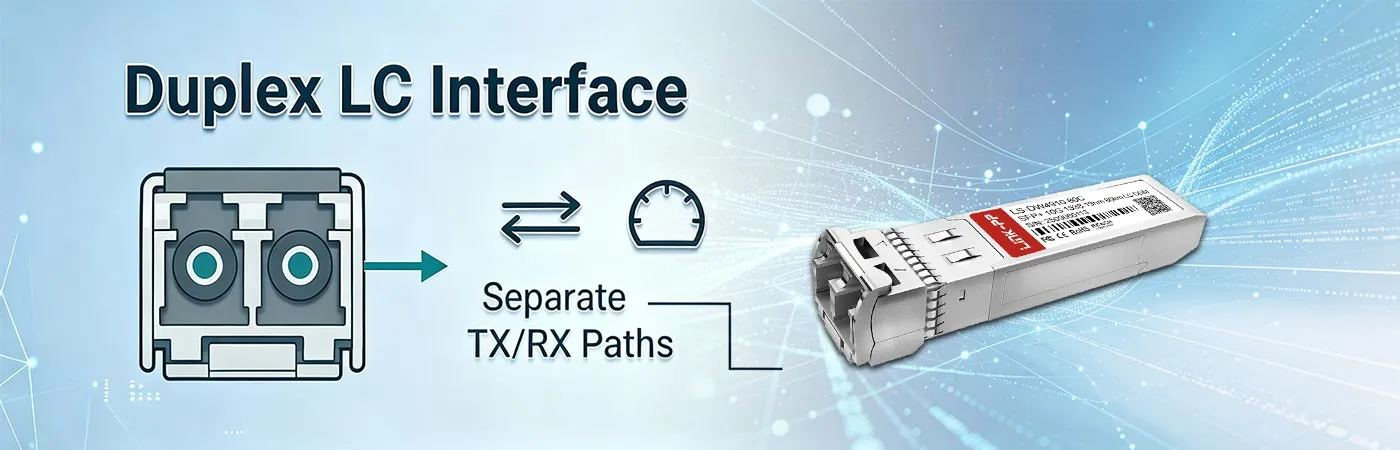

10G-SFPP-ZRD-1538.19 Module with Duplex LC Interface
Standard duplex LC optical connectors ensure easy patching with widely deployed fiber distribution panels and standard patch cords. The durable locking mechanism establishes secure optical connections, minimizing insertion loss and return reflections.

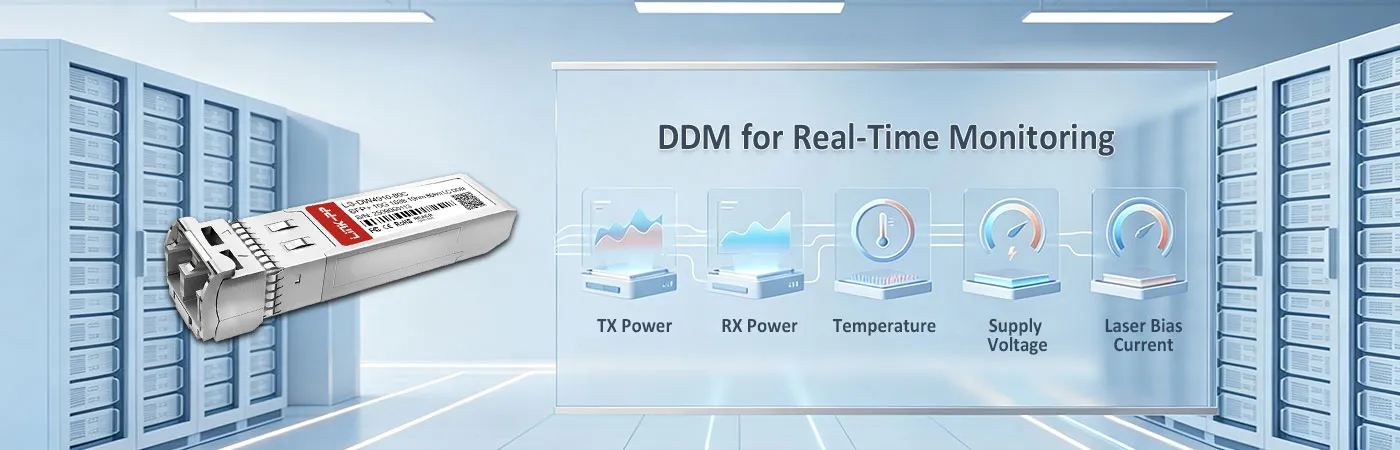

10G-SFPP-ZRD-1538.19 Module with DDM for Real-Time Monitoring
Digital Diagnostic Monitoring (DDM) is fully compatible with SFF-8472 standards, giving network engineers direct visibility into vital operating metrics. The host system can continuously track internal temperature, supply voltage, laser bias current, and both transmitted and received optical power levels.
Brocade 10G-SFPP-ZRD-1538.19 Compatible LINK-PP DWDM 10G SFP+ module is manufactured under strict quality systems and complies with ISO 9001, CE, RoHS, and FCC standards. These international approvals ensure every transceiver meets rigorous safety, environmental, and operational requirements.
Each DWDM SFP+ module goes through thorough optical and electrical tests before leaving the factory. Critical parameters like wavelength precision, receiver sensitivity, and eye pattern stability are strictly verified to ensure flawless out-of-the-box operation.
10G-SFPP-ZRD-1538.19 Quality Certifications
Recognized industry credentials confirm that the product adheres to standardized manufacturing processes and green compliance rules. This regulatory alignment ensures that the hardware is safe, environmentally responsible, and fully authorized for global commercial deployment.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
10G-SFPP-ZRD-1538.19 Certified for Reliable Host-Device Compatibility
The transceiver undergoes rigorous on-switch validation across mainstream switches, routers, and transport platforms. Its customized EEPROM coding ensures quick identification, smooth link-up, and error-free communication with your host hardware.
Every 10G-SFPP-ZRD-1538.19 DWDM SFP+ transceiver undergoes extensive physical and optical evaluations to guarantee stable operation in demanding long-haul networks. Learn more about our comprehensive validation procedures at the LINK-PP Test Support Center.
Optical Spectrum Test
Verify central wavelength accuracy and side-mode suppression ratio for stable transmission.
Eye Pattern Test
Evaluate transmitter signal quality and optical rise times to ensure waveform integrity.
Bit Error Rate Test
Check long-distance data transmission reliability under maximum throughput without frame loss.
Temperature Test
Measure operational thermal stability across commercial ranges to prevent signal degradation.
Product Shipping for Brocade 10G-SFPP-ZRD-1538.19 Compatible LINK-PP 10G SFP+
LINK-PP provides secure packaging and streamlined fulfillment to ensure every transceiver arrives safely and on schedule. Our team handles orders with care to support rapid deployment across diverse network sites worldwide.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage across delicate internal optoelectronic components.
Shock-Resistant Transport Protection
Absorb accidental transit vibrations to maintain precise internal optical alignment.
Fast Order Processing and Dispatch
Expedite stock allocation and label verification for immediate carrier pickup.
Global Logistics and International Delivery
Coordinate cross-border freight routes for timely multi-region delivery to customers.

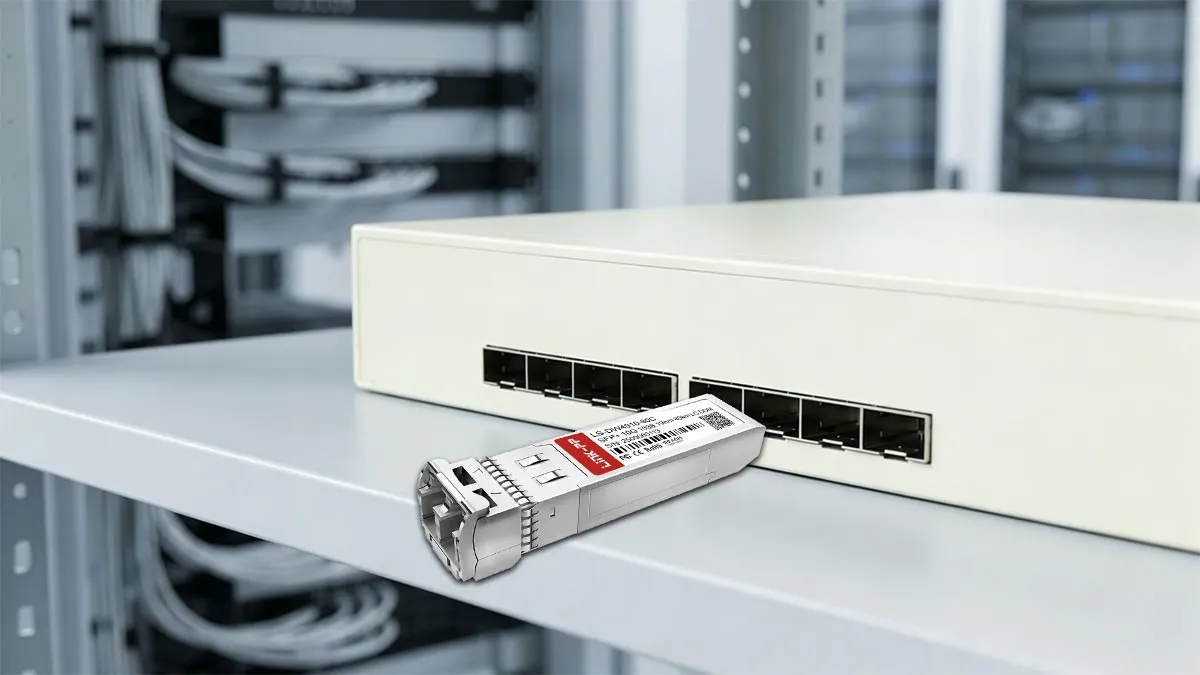

Brocade 10G-SFPP-ZRD-1538.19 Compatible LINK-PP module inserts directly into any standard SFP+ port and connects via duplex LC fiber to DWDM Mux/Demux panels. This hot-swappable installation enables seamless 10G capacity expansions across existing metro rings, enterprise data backbones, and long-haul interconnects without adding extra dark fiber.
10G-SFPP-ZRD-1538.19 Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal 10G-SFPP-ZRD-1538.19 module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
It supports real-time Digital Diagnostic Monitoring (DDM) per SFF-8472 standards, letting your switch poll optical power and temperature levels directly. You can set threshold alarms in your network management system based on these live metrics. By
admin
A:
No, the module uses a narrow-linewidth EML laser centered precisely at 1538.19nm on the ITU-T 100GHz grid. It provides a high side-mode suppression ratio (SMSR) and will operate cleanly alongside adjacent channels such as C48 or C50 without interference. By
admin
A:
The standard duplex LC receptacle features a latching mechanism built to withstand typical patch cord mating cycles. Keeping the optical bore dust-free with a standard LC one-click cleaner helps maintain low insertion loss over repeated connects. By
admin
Please write comments with more than three
character.
496624
507746
A***n
United Kingdom
Verified
Purchase
5 .0
2026-06-12
Bought two for a C49 DWDM channel replacement. They worked well with our existing passive Mux, and the 1538.19nm wavelength lined up exactly as planned ;)
Please write comments with more than three
character.
496624
507740
C***l
Netherlands
Verified
Purchase
5 .0
2026-03-24
Installed on an SDH STM64 transport edge where we needed a fixed 100GHz DWDM wavelength. The EML transmitter and APD receiver combination has been stable, and DOM helps our NOC track the link health remotely.
Please write comments with more than three
character.
496624
507743
L***n
Hong Kong
Verified
Purchase
5 .0
2026-02-28
We deployed this LS-DW4910-80C 10G SFP+ module on a 70km inter-building link through a passive DWDM MUX. The -1 to +5dBm TX output with the high-sensitivity APD receiver gave us plenty of margin above the -23dBm sensitivity limit. Real-time DDM readings make span loss monitoring very easy. Highly recommended for long-range networking.
Please write comments with more than three
character.
496624
507747
B***x
Sweden
Verified
Purchase
5 .0
2025-05-15
The DOM page on our switch shows TX power, RX power, temperature, and voltage as expected. That is helpful when maintaining a long-distance fiber path :-).
Please write comments with more than three
character.
496624
507742
R***a
Taiwan, Province of China
Verified
Purchase
5 .0
2025-04-09
Installed these C49 1538.19nm DWDM transceivers into edge aggregation switches for backhaul. Even over varying ambient rack temps between 25°C and 55°C, the transceiver maintained stable optical output without bit errors. Total throughput stays pinned at 10.7Gbps line rate. Very impressed with the build quality and heat dissipation. :-)
Please write comments with more than three
character.
496624
507749
S***r
Turkey
Verified
Purchase
5 .0
2025-03-27
We used this 10G DWDM SFP+ transceiver for an indoor campus backbone between two buildings. Both ends came online right away, and the optical values stayed steady during normal traffic.
Please write comments with more than three
character.
496624
507739
J***n
Russian Federation
Verified
Purchase
5 .0
2025-02-21
Our base-station backhaul aggregation uses fixed DWDM channels, so wavelength accuracy matters more than fancy extras. This 1538.19nm module integrated cleanly with the channel plan, held a stable 10G link, and reported sensible diagnostics during monitoring.
Please write comments with more than three
character.
496624
507744
R***s
Bangladesh
Verified
Purchase
5 .0
2025-01-31
Our team needed a long-reach 10G single-mode fiber module without changing the switch hardware. These SFP+ optics did the job and gave us useful DOM values for routine checks.
