The Ubiquiti UACC-OM-SM-1G-S Compatible LINK-PP module is a high-performance 1G BiDi SFP transceiver engineered for reliable Gigabit Ethernet links. Operating over single-mode fiber, this module supports a 1.25Gbps data rate and covers transmission distances up to 3km. It leverages standard Simplex LC connectors and advanced WDM technology, making it an ideal cost-effective solution for optimizing fiber network infrastructure.
Ubiquiti Part Number
UACC-OM-SM-1G-S
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
1.25Gbps
Wavelength
1310nm-TX/1550nm-RX
Max Cable Distance
3km
Connector
Simplex LC
Media
SMF
Transmitter Type
FP
Receiver Type
PIN
TX Power
-15 to -8dBm
RX Power
-23 to -1dBm
Receiver Sensitivity
<-23dBm
DOM Support
Yes
Operating Temperature Range
0 to 70°C
Protocols
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Key Features of Ubiquiti UACC-OM-SM-1G-S Compatible LINK-PP 1.25G SFP
This LINK-PP 1G BiDi SFP optical transceiver boasts exceptional hot-pluggable capabilities for seamless integration into existing network setups. It strictly complies with SFP MSA and SFF-8472 standards. Featuring low power consumption and robust laser safety, the UACC-OM-SM-1G-S ensures stable, long-lasting connectivity.
Built with premium components, the Ubiquiti UACC-OM-SM-1G-S Compatible LINK-PP 1G BiDi SFP optical module provides outstanding signal integrity. Its single-mode fiber design maximizes data transfer efficiency, offering network administrators a reliable and scalable Gigabit Ethernet communication solution.
UACC-OM-SM-1G-S: 1G Connectivity for Campus Networks
The UACC-OM-SM-1G-S excels in upgrading Gigabit Ethernet infrastructure across enterprise environments. Delivering robust 1G connectivity for campus networks, this BiDi SFP minimizes cabling costs while maintaining secure, high-speed data transmission between different building facilities.

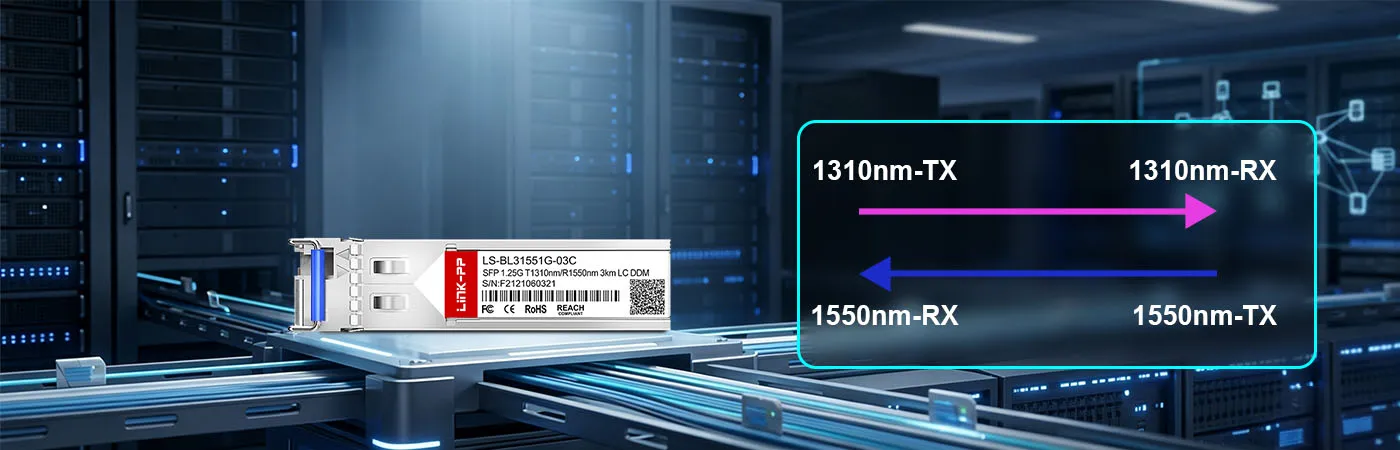

UACC-OM-SM-1G-S Module with 1310nm-TX and 1550nm-RX Wavelength
Utilizing wavelength-division multiplexing, the UACC-OM-SM-1G-S module operates with a 1310nm-TX and 1550nm-RX wavelength over a single fiber strand. This single-fiber bidirectional transmission doubles your network capacity, optimizing available optical infrastructure without deploying additional cables.
Engineered for medium-range fiber links, the UACC-OM-SM-1G-S module supports up to 3km transmission over standard SMF. This reach perfectly accommodates local area networks and industrial interconnects, guaranteeing lossless optical signals throughout the entire distance.
UACC-OM-SM-1G-S Module with Simplex LC Interface
Equipped with an industry-standard connector, the UACC-OM-SM-1G-S module features a simplex LC interface. This precise optical receptacle ensures secure fiber patching, minimal insertion loss, and effortless physical maintenance within high-density network switches and routers.
UACC-OM-SM-1G-S Module with DOM for Real-Time Monitoring
Designed with intelligent management features, the UACC-OM-SM-1G-S module includes DOM for real-time monitoring. Network engineers can proactively track critical transceiver diagnostics, such as temperature, optical power, and voltage, ensuring uninterrupted network stability and performance.
The UACC-OM-SM-1G-S quality testing program evaluates every transceiver under extreme conditions. We systematically analyze optical performance, electrical stability, and mechanical durability to prevent network failures.
UACC-OM-SM-1G-S Quality Certifications
Boasting extensive industry approvals, the UACC-OM-SM-1G-S quality certifications include RoHS, CE, and FDA Class 1 laser safety standards, ensuring eco-friendly and perfectly safe operational deployments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
UACC-OM-SM-1G-S Certified for Reliable Host-Device Compatibility
The UACC-OM-SM-1G-S is certified for reliable host-device compatibility. It works seamlessly with major networking equipment, preventing vendor lock-in and eliminating recognition errors during system integration.
Rigorous Testing Ensures Reliable SFP Performance
Rigorous testing ensures reliable SFP performance across various networking environments. Each LINK-PP module completes advanced factory diagnostics before reaching your network.
Optical Spectrum Test
The optical spectrum test verifies precise wavelength accuracy and spectral width limits.
Eye Pattern Test
An eye pattern test guarantees high signal clarity and minimal timing jitter.
Bit Error Rate Test
The bit error rate test ensures flawless data transmission across continuous operations.
Temperature Test
Extensive temperature testing confirms thermal stability under demanding network switch conditions.
Product Shipping for Ubiquiti UACC-OM-SM-1G-S Compatible LINK-PP 1.25G SFP
We prioritize secure product shipping for the Ubiquiti UACC-OM-SM-1G-S Compatible LINK-PP 1G SFP, utilizing advanced packaging solutions to protect your optical modules globally.
Anti-Static Protective Packaging
Specialized anti-static protective packaging shields components from electrostatic discharge damage.
Shock-Resistant Transport Protection
Custom shock-resistant transport protection safeguards delicate optics against transit vibrations.
Fast Order Processing and Dispatch
Our fast order processing and dispatch procedures ensure minimal waiting times.
Global Logistics and International Delivery
Reliable global logistics and international delivery guarantee prompt worldwide arrivals.
Installing the Ubiquiti UACC-OM-SM-1G-S Compatible LINK-PP 1G SFP is remarkably simple. Gently slide the hot-pluggable transceiver into your compatible switch port until it clicks, then connect your single-mode fiber patch cord directly into the simplex LC receptacle.
UACC-OM-SM-1G-S Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable UACC-OM-SM-1G-S modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
A:
Yes, we definitely do! For batch deployments like your campus network, we offer flexible tiered pricing. Since your order exceeds 100 pieces, you'll automatically get a reduced unit price. Reach out to our direct sales team for a custom quote. By
admin
A:
Absolutely! This 1G BiDi SFP is fully MSA compliant and has been rigorously tested for strict OEM interoperability. It operates plug-and-play on both Cisco and Ubiquiti platforms without triggering any vendor lock-in warnings. By
admin
A:
We maintain a highly stable supply chain with deep stock levels for the LS-BL31551G-03C. Most orders process within 2 days, and standard transit to the US typically takes just 2 to 5 business days, keeping your deployment perfectly on schedule. By
admin
A:
Yes, they are 100% compliant with IEEE 802.3z Gigabit Ethernet standards, as well as Gigabit Fibre Channel and SFF-8472 specifications for DOM capabilities. They easily meet rigorous enterprise, telecom, and data center compliance audits. By
admin
Deployed these 1G BiDi 1310nm/1550nm modules for a campus fiber network upgrade. The DOM support is accurate in our Cisco switches, and 3km reach over SMF is spot on.
