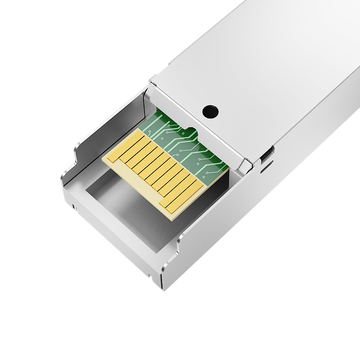

The Netgear SFP-1G53-BX20 Compatible LINK-PP module is a high-performance 1G BiDi SFP optical transceiver designed for efficient Gigabit Ethernet connectivity. This hot-pluggable module utilizes WDM technology over single-mode fiber, delivering data rates up to 1.25Gbps. Compliant with SFP MSA standards, it offers a highly cost-effective networking solution for modern optical communication systems.
| Netgear Part Number | SFP-1G53-BX20 | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm-TX/1310nm-RX | Max Cable Distance | 20km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type |
DFB | Receiver Type |
PIN |
| TX Power | -9 to 0dBm | RX Power | -23 to -1dBm |
| Receiver Sensitivity | <-23dBm | DOM Support | Yes |
| Operating Temperature Range | 0 to 70°C | Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
Discover the exceptional capabilities of the Netgear SFP-1G53-BX20 Compatible LINK-PP 1G BiDi SFP transceiver. This advanced single-mode fiber module ensures stable long-distance data transmission while saving infrastructure costs. Its highly integrated design guarantees seamless integration into standard networking equipment for superior optical performance.
Engineered for premium performance, the Netgear SFP-1G53-BX20 Compatible LINK-PP 1G BiDi SFP optical module seamlessly integrates a DFB laser and PIN photodiode. This single-mode fiber transceiver guarantees outstanding network stability, optimal signal clarity, and highly reliable data transfer capabilities.
Enhance your communication infrastructure with the SFP-1G53-BX20 transceiver, delivering robust 1G connectivity for VoIP servers. This high-speed gigabit optical module minimizes latency and ensures crystal-clear voice data transmission, making it ideal for demanding enterprise telecommunication networking applications.
Utilizing advanced WDM technology, the SFP-1G53-BX20 module operates precisely with a 1550nm-TX and 1310nm-RX wavelength configuration. This single-fiber bidirectional transmission significantly maximizes your existing single-mode fiber capacity, dramatically reducing overall network cabling expenses and maintenance costs.
Perfect for medium-range network deployments, the SFP-1G53-BX20 module flawlessly supports 20km transmission over single-mode fiber. This impressive reach ensures that metropolitan area networks and remote campus connections maintain consistent, high-bandwidth Gigabit Ethernet data transfer without requiring expensive repeaters.
Designed for streamlined hardware installations, the SFP-1G53-BX20 module features a standard simplex LC interface. This precise optical connector ensures secure, low-loss single-mode fiber connections, providing network administrators with a reliable and highly efficient hot-pluggable deployment experience.
Maximize networking reliability using the SFP-1G53-BX20 module with DOM for real-time monitoring. Compliant with SFF-8472, this digital diagnostic function continuously tracks critical parameters like temperature, voltage, and optical power, enabling proactive system maintenance and rapid network troubleshooting.
Compatibility tested in the LINK-PP lab. View test report
Every Netgear SFP-1G53-BX20 Compatible LINK-PP 1G SFP undergoes rigorous verification to meet strict global industry standards. Our comprehensive certification process guarantees superior manufacturing quality and safe optical network operation.
The SFP-1G53-BX20 quality testing program implements strict factory inspections. We evaluate each transceiver under extreme networking conditions to guarantee uninterrupted Gigabit Ethernet connectivity and exceptional single-mode fiber performance.
Showcasing premium manufacturing, the SFP-1G53-BX20 optical module holds essential quality certifications. Compliant with RoHS and Class I laser safety standards, it ensures secure and environmentally responsible network deployments.
Following standard SFP Multi-Source Agreement guidelines, the SFP-1G53-BX20 is certified for reliable host-device compatibility. It works seamlessly across diverse networking switches and routers without any configuration issues.
Our comprehensive validation procedures guarantee exceptional optical stability. Rigorous testing ensures reliable SFP performance, delivering long-term networking success for mission-critical enterprise environments.
This test verifies precise 1550nm and 1310nm wavelengths for optimal BiDi signal clarity.
We conduct strict eye pattern evaluations to ensure excellent signal integrity and minimal jitter.
Long-duration testing confirms extremely low data loss for flawless 1.25Gbps network transmission quality.
Thermal cycling ensures reliable hardware operation across specified commercial and industrial temperature ranges.
We prioritize secure supply chain logistics. The product shipping for Netgear SFP-1G53-BX20 Compatible LINK-PP 1G SFP ensures your optical modules arrive safely and perfectly intact.
We utilize premium anti-static bags to prevent critical internal electronic component damage.
Customized shock-absorbing foam securely cradles each transceiver during rough transit conditions.
Streamlined inventory management enables immediate order fulfillment and rapid warehouse dispatch services.
Trusted global shipping partners guarantee prompt, reliable international delivery to your facility.
Integrating this transceiver is incredibly straightforward. The Netgear SFP-1G53-BX20 Compatible LINK-PP 1G SFP usage demonstration illustrates simple plug-and-play installation into standard Ethernet switches. Just connect the simplex LC single-mode fiber patch cord to establish instant, high-speed bidirectional communication.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable SFP-1G53-BX20 modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Compatible | Netgear | Netgear | Netgear | Netgear | Netgear | Netgear |
MSA-PN | 1000BASE-BX20-D | 1000BASE-BX10-D | 1000BASE-BX40-D | 1000BASE-BX120-D | 1000BASE-BX80-D | 1000BASE-BX20-D |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1550nm-TX/1310nm-RX | 1550nm-TX/1310nm-RX | 1550nm-TX/1310nm-RX | 1550nm-TX/1490nm-RX | 1550nm-TX/1490nm-RX | 1490nm-TX/1310nm-RX |
Connector | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC |
Cable Distance (Max) | 20km | 10km | 40km | 120km | 80km | 20km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -9 to 0dBm | -9 to 0dBm | -5 to 0dBm | 0 to +5dBm | 0 to +5dBm | -9 to 0dBm |
Receiver Sensitivity | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -28 to -1dBm | -26 to -1dBm | -23 to -1dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Vendor Name | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | DFB | DFB | DFB | DFB | DFB | DFB |
Receiver Type | PIN | PIN | PIN | APD | PIN | PIN |
DOM Support | Yes | Yes | Yes | Yes | Yes | Yes |
Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
